J4CS J&J Electric Actuator Full Bore PN40 Ball Valves SS

BallValve offers quick turnaround times while maintaining quality and expertise. All orders include a two-page test report that outlines the opening and closing times of each tested valve. Whether you require one product or several hundred ready-made parts, we can provide them. The fail-safe battery backup option removes the need for manual override in case of a power or system failure, making it perfect for applications where failure is not acceptable. The Actuator will return the Valve to its preset open or closed position. Its true multi-voltage plug-and-play functionality allows for standardisation at the site without the need to change models if local voltages vary. The J4CS includes a built-in auto-conversion sensor voltage kit capable of receiving 24-240V AC or DC supply.
Shop Help Me

Key Features

Key features and benefits of BV-L6N00JJ Actuated Ball Valves.
1

Key Features

The BV-L6N00 Ball Valve's low torque requirements enable smooth operation and cost reduction for Actuated Ball Valves. Smaller actuators can efficiently automate valves that typically require larger units, resulting in cost savings.
2

Key Features

The BV-L6N00 Actuated Ball Valves represent an exceptional option for applications in harsh or corrosive environments where standard ranges may not be suitable. Crafted with a CF8M body and a disc composed of high-quality stainless steel, these valves exhibit remarkable durability, capable of withstanding the most challenging conditions.
3

Key Features

The Modbus connection allows for convenient on-site plug-and-play integration with existing units, supporting up to a maximum of 32 actuators or valve assemblies. This connectivity can be established through a local Ethernet connection or via Wi-Fi, with a range of up to 1600 meters, even without signal-boosting technology.

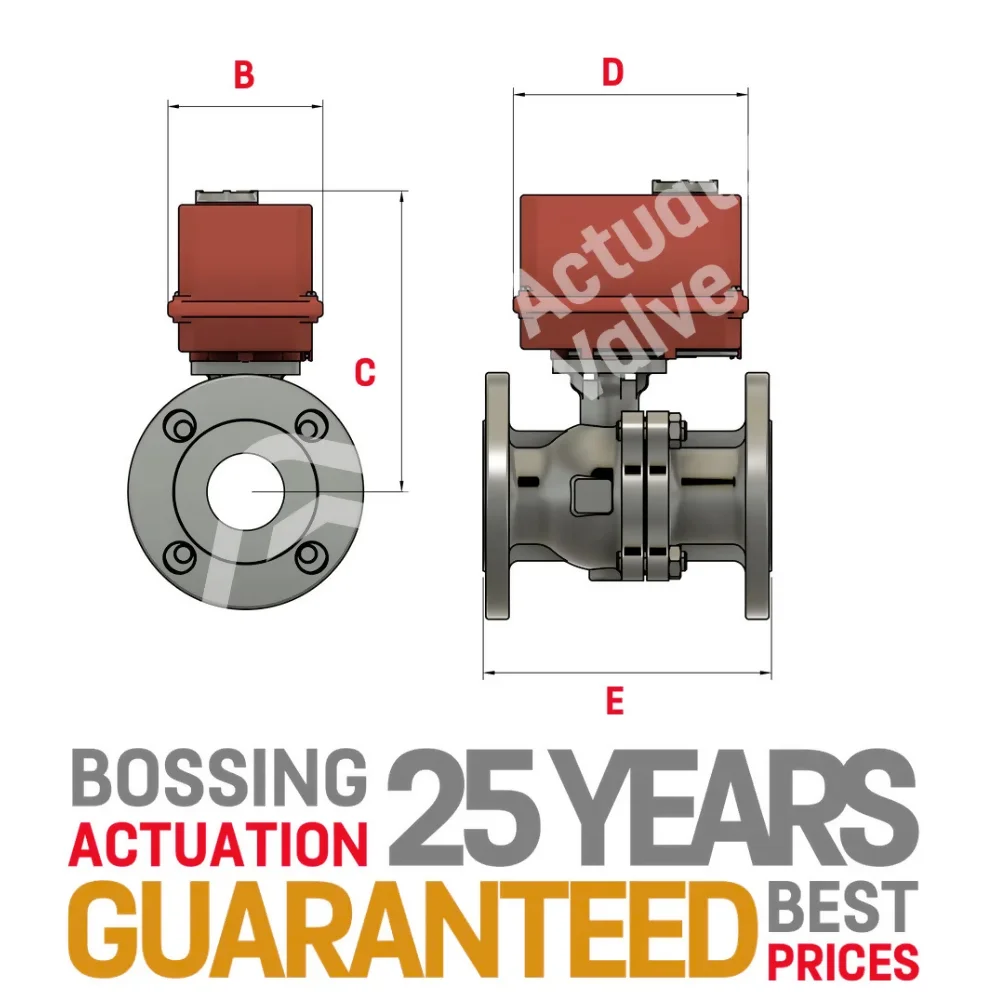

Flanged PN16 Technical Data

B C D E Model
1/2" 110.00 219.00 179.00 115.00 J4CS20
3/4" 110.00 224.00 179.00 120.00 J4CS20
1" 110.00 230.00 179.00 125.00 J4CS20
1 1/4" 110.00 242.00 179.00 130.00 J4CS20
1 1/2" 110.00 247.00 179.00 140.00 J4CS35
2" 110.00 281.00 181.00 150.00 J4CS55
2 1/2" 110.00 298.00 181.00 170.00 J4CS85
3" 214.00 371.00 235.00 180.00 J4CS140
4" 214.00 394.00 235.00 190.00 J4CS140
5" 214.00 437.00 235.00 325.00 J4CS140
6" TBA TBA TBA TBA TBA

Flanged PN16 3D Models

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Specifications
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
Face 2 Face: ASME B16.10

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.

Actuator Tech

  • PDF
DRAWINGS & SCHEMATICS

J4CS20
  • PDF
DRAWINGS & SCHEMATICS

J4CS35
  • PDF
DRAWINGS & SCHEMATICS

J4CS55
  • PDF
DRAWINGS & SCHEMATICS

J4CS85
  • PDF
DRAWINGS & SCHEMATICS

J4CS140
  • PDF
DRAWINGS & SCHEMATICS

J4CS300
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
