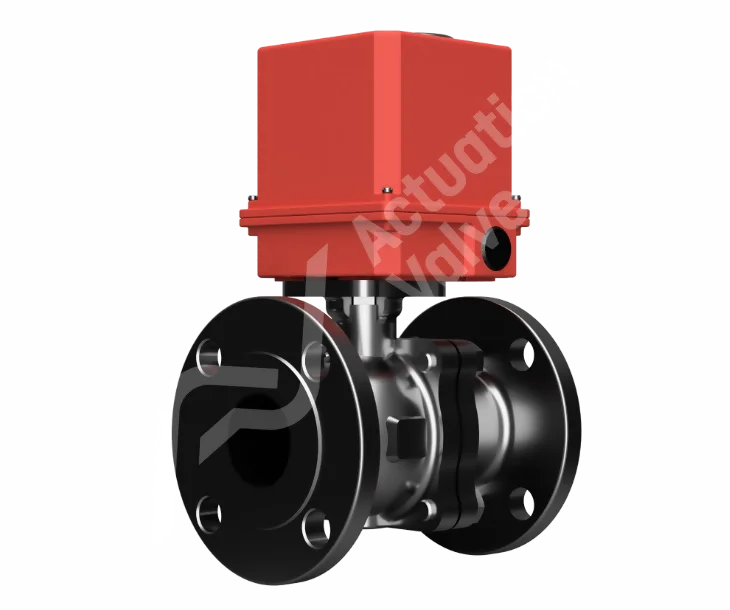

Electric PN16 Stainless Steel AV-Lite Actuator Ball Valves

The BV-L6K00AV Actuated Ball Valves offer an ideal solution for use in harsh or corrosive environments that are not suitable for standard valves. These valves are constructed with a CF8M body and a high-quality stainless steel ball, ensuring their durability even in the most demanding conditions. You can confidently use BV-L6K00AV stainless steel ball valves in applications such as automotive refinishing with oil-based paints and coatings. They are 100% free from silicone, eliminating the risk of product contamination or residue that could affect your finish over time. We manufacture and thoroughly test all our products in-house to maintain complete control and ensure you receive a high-quality, long-lasting product. Each product includes a two-page test report detailing all operational aspects, including opening/closing times and pressure ratings.
Shop Help Me

Key Features

Key features and benefits of BV-L6K00AV Actuated Ball Valves.
1

Key Features

When you make the switch from conventional ball valves to our low-torque BV-L6K00 Ball Valve, you can reduce installation expenses and maintenance costs while enhancing overall reliability. Our product is crafted with the end-user in consideration, and we possess a deep understanding of what proves most effective for industrial automation.
2

Key Features

The BV-L6K00 Ball Valve is a superb option for high-volume pneumatic systems due to its low torque demands. This results in cost savings for actuated valves, as smaller actuators can now automate valves that typically require larger units.
3

Key Features

The BV-L6K00 represents a cost-effective range of high-quality stainless steel ball valves that won't strain your budget. These robust products will provide you with years of reliable performance, all at a fraction of the cost charged by other companies for comparable items.

Flanged PN16 Technical Data

B C D E Model
1/2" 100.00 158.50 145.00 115.00 AV-02
3/4" 100.00 163.50 145.00 120.00 AV-02
1" 100.00 169.50 145.00 125.00 AV-02
1 1/4" 100.00 181.50 145.00 130.00 AV-02
1 1/2" 121.90 217.50 117.00 140.00 AV-03
2" 121.90 226.50 117.00 150.00 AV-03
2 1/2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA
6" TBA TBA TBA TBA TBA

Flanged PN16 3D Models

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Specifications
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: DIN3357 1,2, EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266
Face 2 Face: DIN 3202 F4 (2 1/2" - 4") & DIN 3202 F5 (5" - 8")

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds
