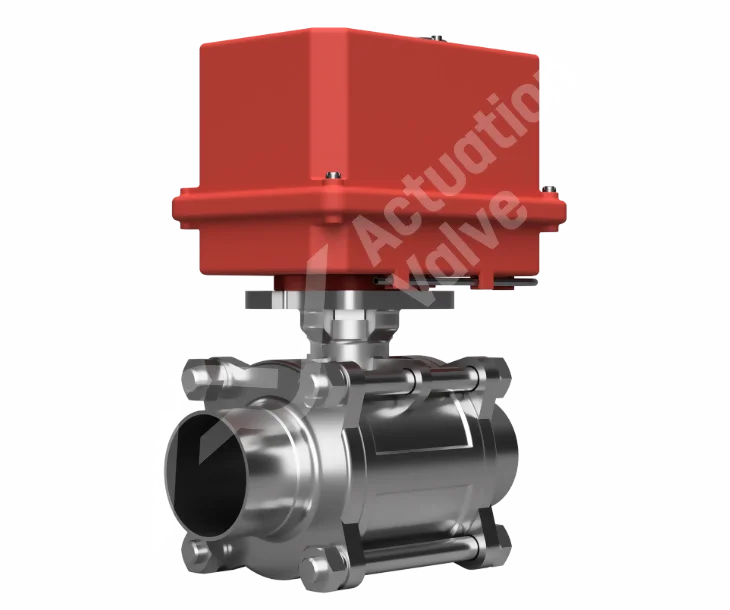

Hygienic Tri Clamp-Weld OD AV-Lite Actuator Ball Valves

The BV-L91B0AV and BV-L9CB0AV are part of BallValve's sanitary and hygienic full bore actuated valve packages. These valves have a three-piece body with a removable center section for easy maintenance and seat replacement. Their design prevents debris buildup and contamination, making them suitable for applications up to 200°C, including steam cleaning, CIP, and SIS. They hold FDA and WRAS approvals for seat materials, ensuring a bovine-free supply. BallValve offers fast turnaround times and provides a comprehensive test report with every order. Whether you need one or several hundred products, we can deliver. The BV-L91B0AV and BV-L9CB0AV Ball Valves have low torque requirements, reducing costs by allowing the use of smaller actuators.
Shop Help Me

Key Features

Key features and benefits of BV-L91B0AV & BV-L9CB0AV Actuated Ball Valves.
1

Key Features

Offering torque outputs of up to 40NM, the AV-LITE range provides cost-effective actuation solutions for small and medium-sized hygienic ball valves. It also includes Direct Mount capabilities for ISO 5211 Valves in 110VAC, 230VAC, and 24VDC, ensuring versatility for your needs.
2

Key Features

The AV-LITE features a nylon housing that holds a waterproof and dust-proof IP67 rating. It also boasts resistance to heat, acid, and alkali. Additionally, all models provide consistent mechanical and visual position indication at the top of the actuator cover.
3

Key Features

The compact motor offers low power consumption and is suitable for the majority of small-bore ball valves. It comes with an internal overheating protection device and can also be wired to a control box for signal feedback.

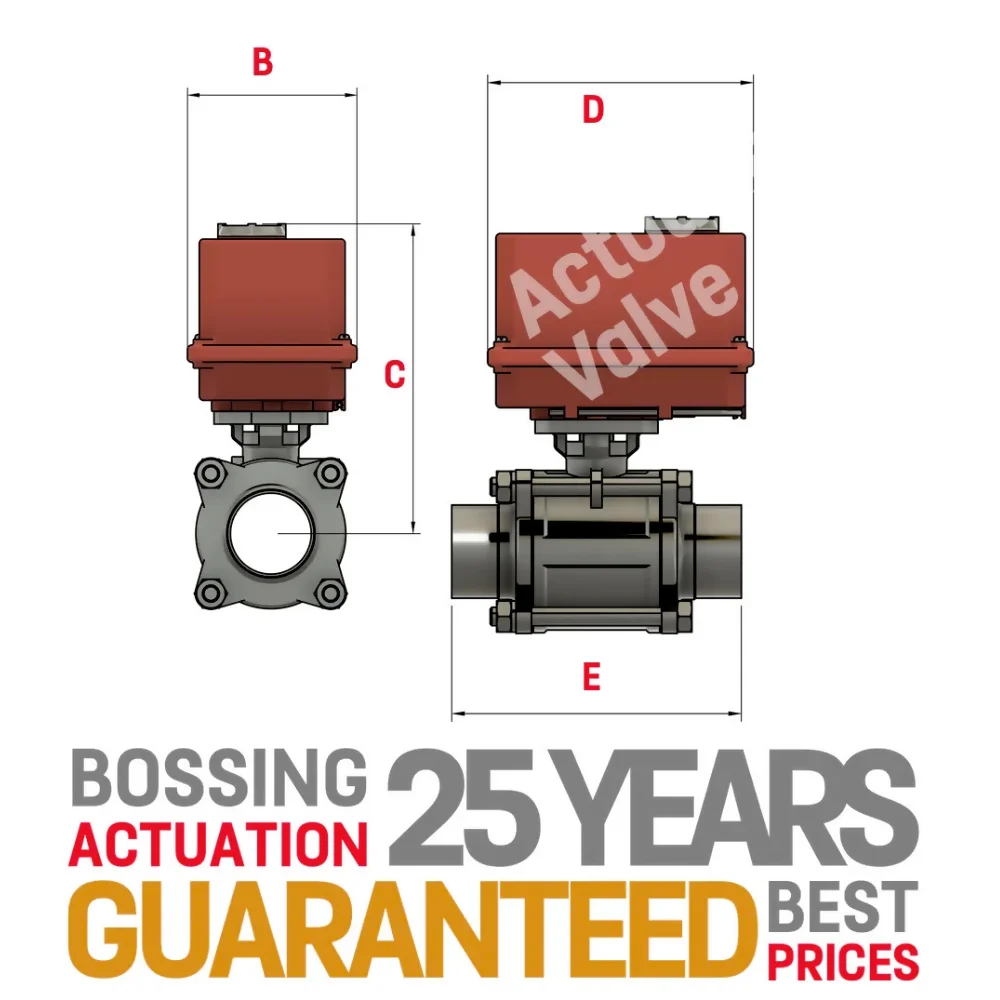

Tri Clamp Technical Data

B C D E Model
1/4" TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA
1/2" 100.00 152.50 145.00 90.00 AV-02
3/4" 100.00 159.50 145.00 90.00 AV-02
1" 100.00 168.50 145.00 100.00 AV-02
1 1/4" TBA TBA TBA TBA TBA
1 1/2" 121.90 212.50 147.00 125.00 AV-03
2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA

Tri Clamp 3D Models

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Hygienic Weld OD 3D Models

Hygienic Weld OD Technical Data

B C D E Model
1/4" TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA
1/2" 100.00 152.50 145.00 90.00 AV-02
3/4" 100.00 159.50 145.00 90.00 AV-02
1" 100.00 168.50 145.00 100.00 AV-02
1 1/4" TBA TBA TBA TBA TBA
1 1/2" 121.90 212.50 117.00 125.00 AV-03
2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Specifications
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600® Cavity Filled Seats & Seals
Seat Approvals: 3A, FDA & Wras Approved
Cleaning: Suitable for Steam Cleaning & Sterilisation to 200 Deg C
Design Standard: MSS SP-110, BS4825
Surface Finish: Chemically Polished External/Mechanical Ra 32 / 0.8um Internal
Inspection & Testing: MSS SP-110
Face 2 Face: ASME B16.10
Pressure Rating: 400 PSI

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
