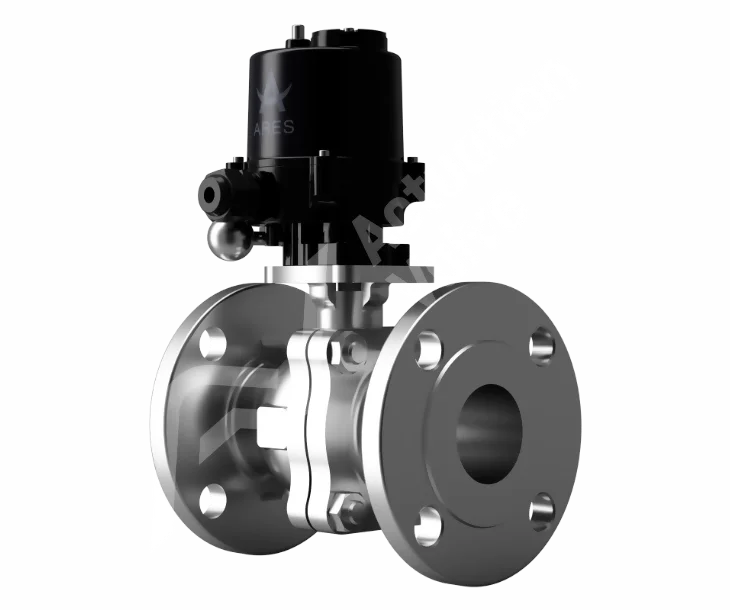

Stainless Steel ANSI 150 AV-ARES Electric Actuator Valves

AV-ARES stands out as a compact, lightweight, and budget-friendly electric valve actuator. Its design prioritises simplicity, making installation a breeze and saving you both time and money on your upcoming projects. The BV-L6100 ball valves are free from silicone, making them suitable for oil-based paint applications, ensuring that no contamination affects the final finish, which is crucial in car manufacturing. AV-ARES electric valve actuators offer a dependable solution, utilising components obtained through stringent quality standards. This results in a life expectancy of 50,000 operations, equivalent to 50 cycles per day for nearly three years, without causing any disruptions to your application.
Shop Help Me

Key Features

Key features and benefits of BV-A6100AR Actuated Ball Valves.
1

Key Features

The AV-ARES series of electric actuators has been meticulously crafted for use in industrial settings where limited space is a critical consideration. These compact and lightweight devices provide all the advantages and functionalities of regular models, without the burden of additional weight or undesirable bulkiness.
2

Key Features

AV-ARES Electric Actuators offers a digital positioner that allows for precise control of your valves, with operation torques up to 40NM. The instrumentation signals accepted include 4-20mA and 0-10VDC for intelligent control.
3

Key Features

Fully stainless steel materials. This ball valve package is designed to be used in harsh, external environments and mediums that are aggressive towards the material itself. It can be used for a variety of applications ranging from food & beverage to chemicals & petrochemicals.

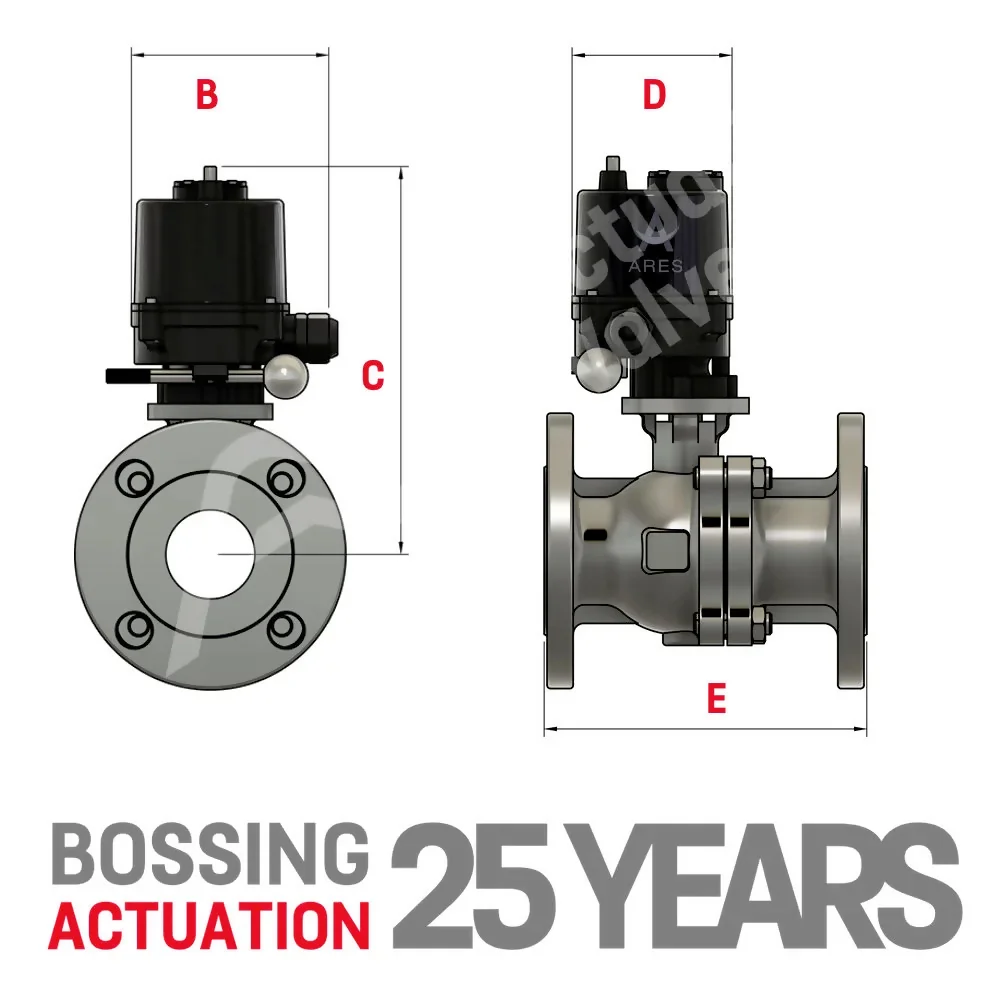

Flanged ANSI 150 Technical Data

B C D E Model
1/2" 115.00 182.00 88.00 108.00 AV-A1
3/4" 115.00 186.00 88.00 117.00 AV-A1
1" 115.00 192.00 88.00 127.00 AV-A1
1 1/4" 115.00 204.00 88.00 140.00 AV-A1
1 1/2" 115.00 274.00 88.00 165.00 AV-A1
2" 115.00 280.00 88.00 178.00 AV-A1
2 1/2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA
6" TBA TBA TBA TBA TBA

Flanged ANSI 150 3D Models

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Specifications
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
Face 2 Face: ASME B16.10

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
