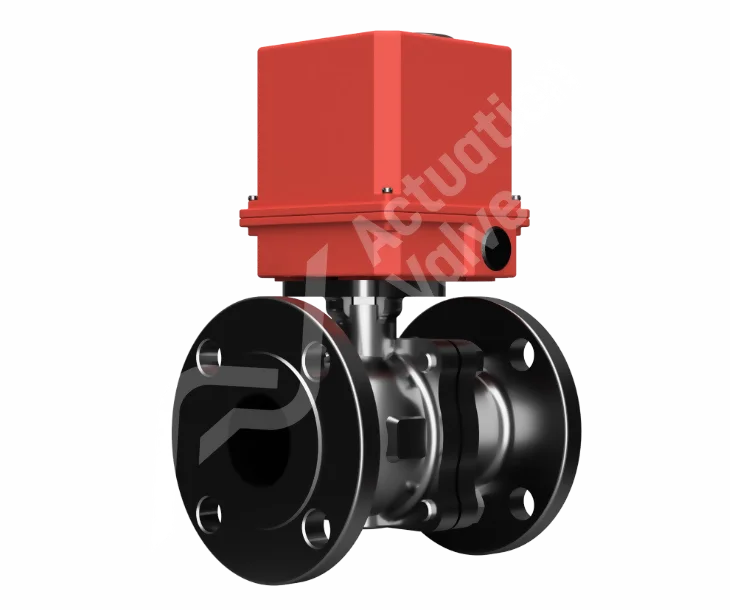

Electric PN40 Stainless Steel AV-Lite Actuator Ball Valves

Our selection of stainless steel ball valves is crafted to meet your specific application requirements, even when you need them to withstand pressures of up to 40 bar and ensure a long lifespan. We offer these ball valves in various sizes, guaranteeing that you will find the right fit for your needs. With our team's extensive experience in handling complex automation systems, we can promptly deliver high-quality products at competitive prices. Just let us know your requirements, and we will handle the rest. This package is an excellent choice for those dealing with moderately aggressive water conditions and challenging outdoor environments. It has been meticulously designed using only premium materials sourced from the manufacturer, Kingdom Controls.
Shop Help Me

Key Features

Key features and benefits of BV-L6N00AV Actuated Ball Valves.
1

Key Features

The BV-L6N00 stainless steel ball valves are suitable for applications involving oil-based paints and coatings, such as automotive refinishing. They are entirely free of silicone, ensuring they do not introduce contamination or leave behind residues that could adversely affect your finish over time.
2

Key Features

Constructed entirely from stainless steel materials, this ball valve package is specifically engineered for use in rugged outdoor environments and with aggressive mediums that can corrode other materials. It is versatile and suitable for a wide range of applications, spanning from food and beverage to chemicals and petrochemicals.
3

Key Features

We undertake the assembly and testing of all our products in-house, enabling us to maintain full control and ensure the delivery of a high-quality, long-lasting product. Every product we offer is accompanied by a two-page test report that comprehensively outlines various operational aspects, including opening/closing times and pressure ratings.

Flanged PN16 Technical Data

B C D E Model
1/2" 100.00 158.50 145.00 115.00 AV-02
3/4" 100.00 163.50 145.00 120.00 AV-02
1" 100.00 169.50 145.00 125.00 AV-02
1 1/4" 100.00 181.50 145.00 130.00 AV-02
1 1/2" 121.90 217.50 117.00 140.00 AV-03
2" 121.90 226.50 117.00 150.00 AV-03
2 1/2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA
6" TBA TBA TBA TBA TBA

Flanged PN16 3D Models

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Specifications
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
Face 2 Face: ASME B16.10

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds
