The BV-L61C0-AC 2 piece full bore actuated ball valves are versatile, available in sizes from 1/2" to 8" with next-day delivery. They feature a flanged valve body for reliable shut-off between pipeline flanges and an ISO mounting pad for easy actuation without extra brackets. This design allows for efficient assembly and testing. Position monitoring switch boxes and sensors are in stock for enhanced functionality. These valves have a distinctive end cap design for easy identification in the field and are adaptable for both double and single-acting actuators. They come with epoxy-coated end caps for protection against environmental corrosion. These features make the BV-L61C0-AC 2 piece full bore actuated ball valves a reliable choice for various industrial applications.

Shop Help Me

Key features and benefits of the BV-L61C0-AC Actuated Ball Valves.

Key Features

Actreg actuators provide NAMUR mounting (compliant with VDE/VDI 3845 standards), facilitating seamless integration with supplementary components such as solenoid valves and valve position monitors that may be necessary for specific application or operational requirements. BallValve is also equipped to offer a variety of accessories for your actuator.

Key Features

Our range of stainless steel ball valves has been carefully engineered to cater to applications with pressure requirements of up to 20 bar, especially when long-term durability is a crucial factor. Additionally, we provide a diverse selection of sizes for our ball valves, ensuring that you can find the perfect fit for your specific needs.

Key Features

The Actreg Pneumatic Actuator is equipped with a specially coated steel piston and utilises high-quality materials, ensuring resilience when exposed to moisture, dust, or dirt. Additionally, its design incorporates a 3-Way guide that minimises friction between the body and pistons, leading to an extended life expectancy and enhanced reliability.

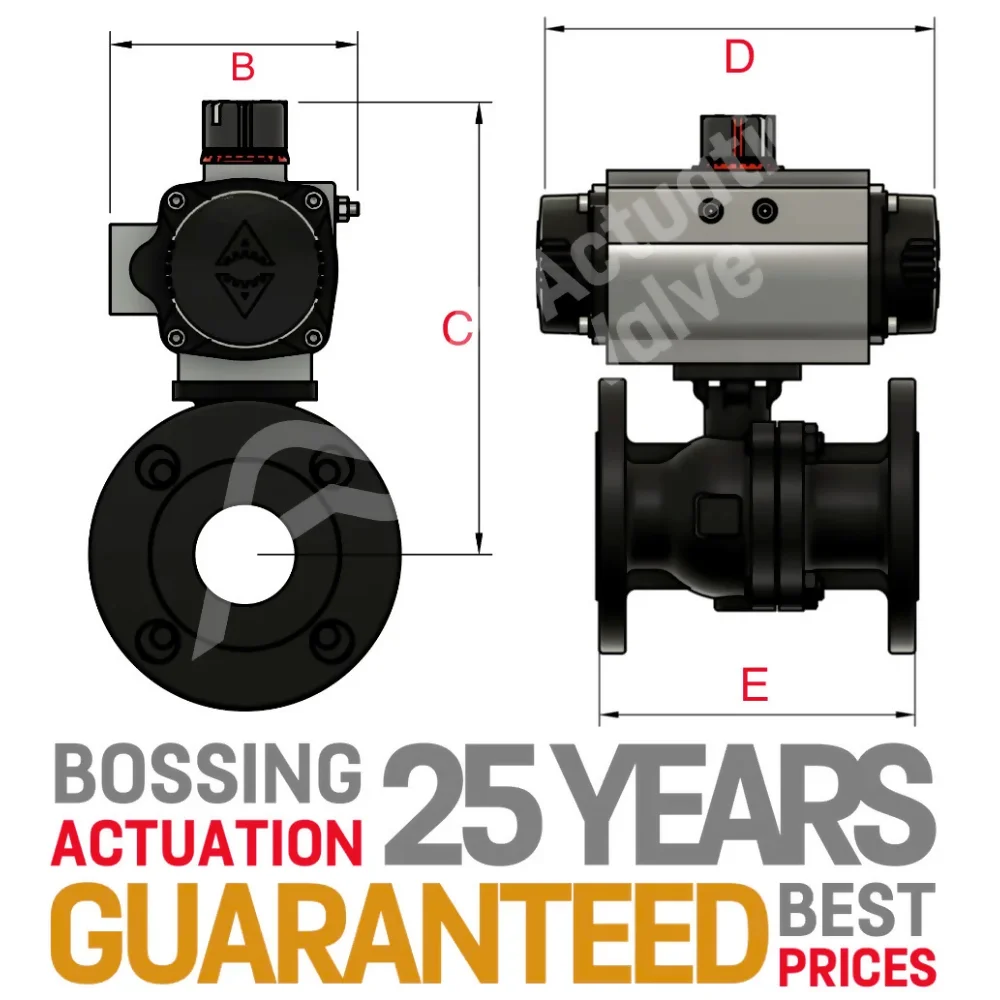

	B	C	D	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA
1/4"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3/8"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
1/2"	72.00	120.00	137.00	72.00	120.00	137.00	59.00
3/4"	72.00	126.00	137.00	72.00	126.00	137.00	69.00
1"	72.00	130.00	137.00	72.00	130.00	137.00	83.00
1 1/4"	93.00	168.50	203.50	72.00	135.50	137.00	94.00
1 1/2"	93.00	180.00	203.50	84.50	163.00	153.50	102.00
2"	106.00	200.50	153.50	84.50	170.50	153.50	124.00
2 1/2"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.


Body Material:	ASTM A216 WCB Carbon Steel construction, 304 Trim.
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	Grafoil/316 Stainless Steel
Stem Packing Material:	Grafoil
Design Standard:	ASME B16.34
Wall Thickness:	ASME B16.34
Inspection & Testing:	API 598
Face 2 Face:	ASME B16.10

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.

Potentially. Contact us so we can discuss potential options.

No unfortunately. We do not offer that level of customisation.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

CERTIFICATES & APPROVALS

Document

CERTIFICATES & APPROVALS

DRAWINGS & SCHEMATICS

CERTIFICATES & APPROVALS

Actreg Actuator Videos

Spring Change

Stroke Adjustment

Please feel free to request information and advice using the form below or call us on 0151 547 1221
