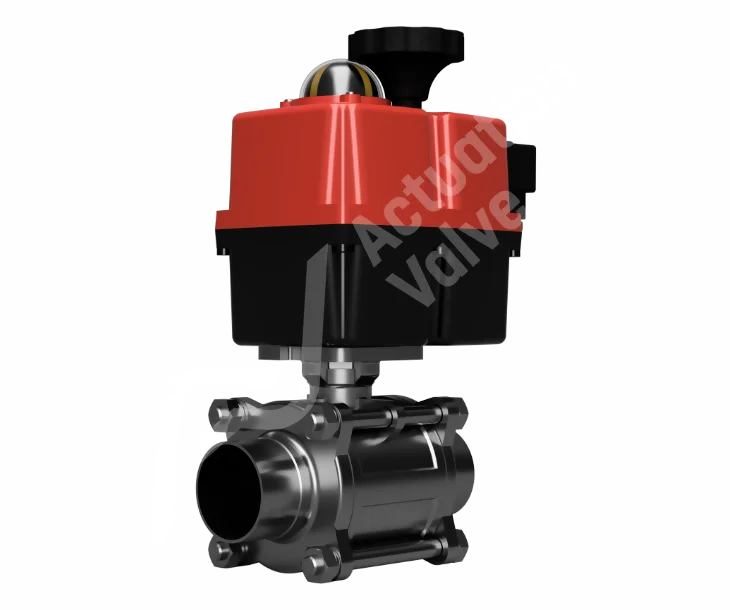

J4CS J&J Electric Actuator Hygienic Sanitary Ball Valves

The BV-L91B0JJ & BV-L9CB0J are part of BallValve's sanitary and hygienic full bore actuated valve packages. These valves consist of a three-piece body with a swing-out centre section, which is ideal for scheduled maintenance and seat replacements. The full bore body design and seats filled with material prevent the accumulation of debris or contaminants. They can withstand temperatures of up to 200 degrees Celsius, making them suitable for steam cleaning, CIP, and SIS applications. These valves have received various approvals, including FDA and WRAS for the seats, ensuring a supply free from bovine-related concerns. J&J Electric Actuators offer password-protected diagnostics accessible via Bluetooth technology, providing end users with technical information about operations, current status, parameter readings, and functional errors.
Shop Help Me

Key Features

Key features and benefits of BV-L91B0JJ & BV-L9CB0JJ Actuated Ball Valves.
1

Key Features

The Fail-Safe Battery Backup option eliminates the necessity for manual override in case of a power or system failure affecting the actuator. This feature is frequently employed in critical application lines where any failure is unacceptable. In such instances, the actuator will automatically return the valve to either the open or closed position, ensuring uninterrupted operation.
2

Key Features

Our system is adaptable to existing site infrastructures and offers support for the Modbus communications protocol. Modbus is an open protocol that enables the connection of multiple industrial electronic devices, allowing for the transmission of information or data over serial lines.
3

Key Features

J&J Electric Actuators provide a motor that is acknowledged as one of the most efficient in its class. The innovative brushless motor design eliminates the need for costly maintenance, resulting in time and cost savings over the motor's lifespan.

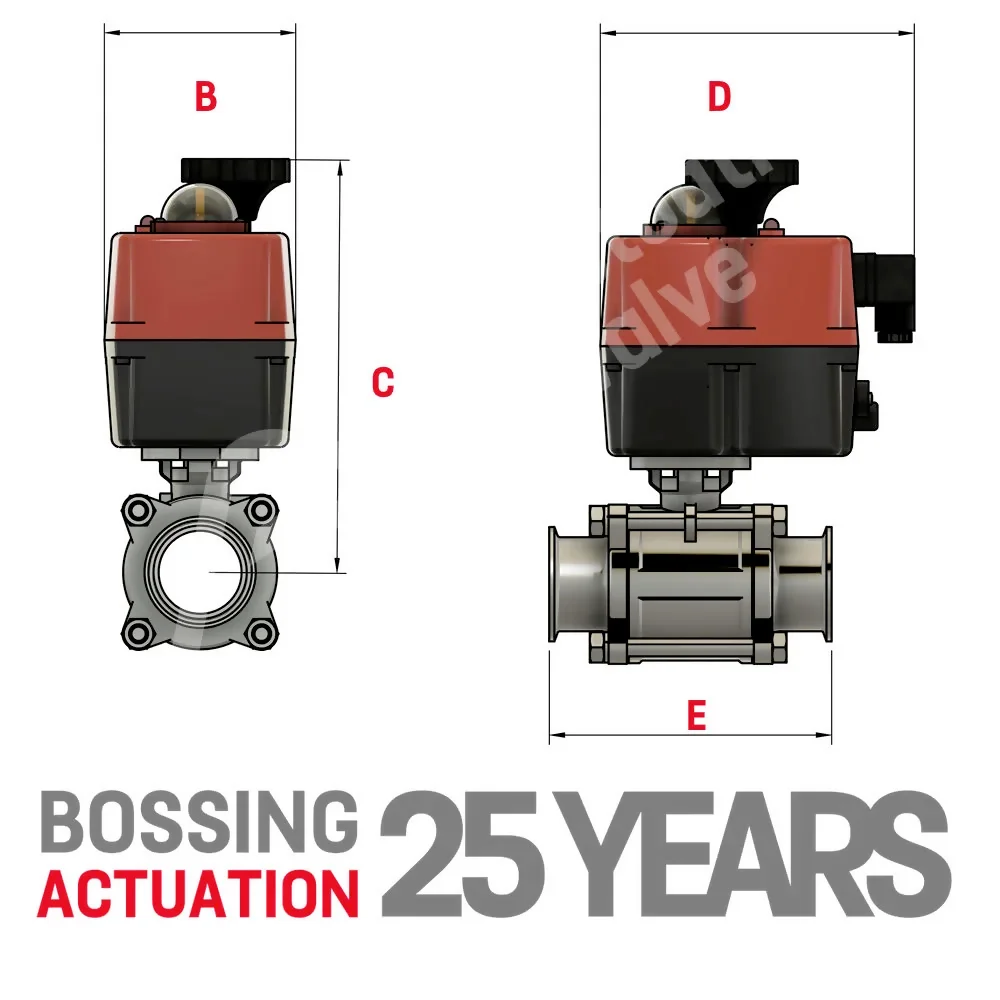

Tri Clamp Technical Data

B C D E Model
1/4" TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA
1/2' 110.00 213.00 179.00 90.00 J4CS20
3/4" 110.00 220.00 179.00 90.00 J4CS20
1" 110.00 229.00 179.00 100.00 J4CS20
1 1/2" 110.00 242.00 179.00 125.00 J4CS35
2" 110.00 274.00 181.00 150.00 J4CS55
2 1/2" 110.00 296.00 181.00 190.00 J4CS85
3" 214.00 363.00 235.00 220.00 J4CS140
4" 214.00 394.00 235.00 270.00 J4CS140

Tri Clamp 3D Models

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Weld OD 3D Models

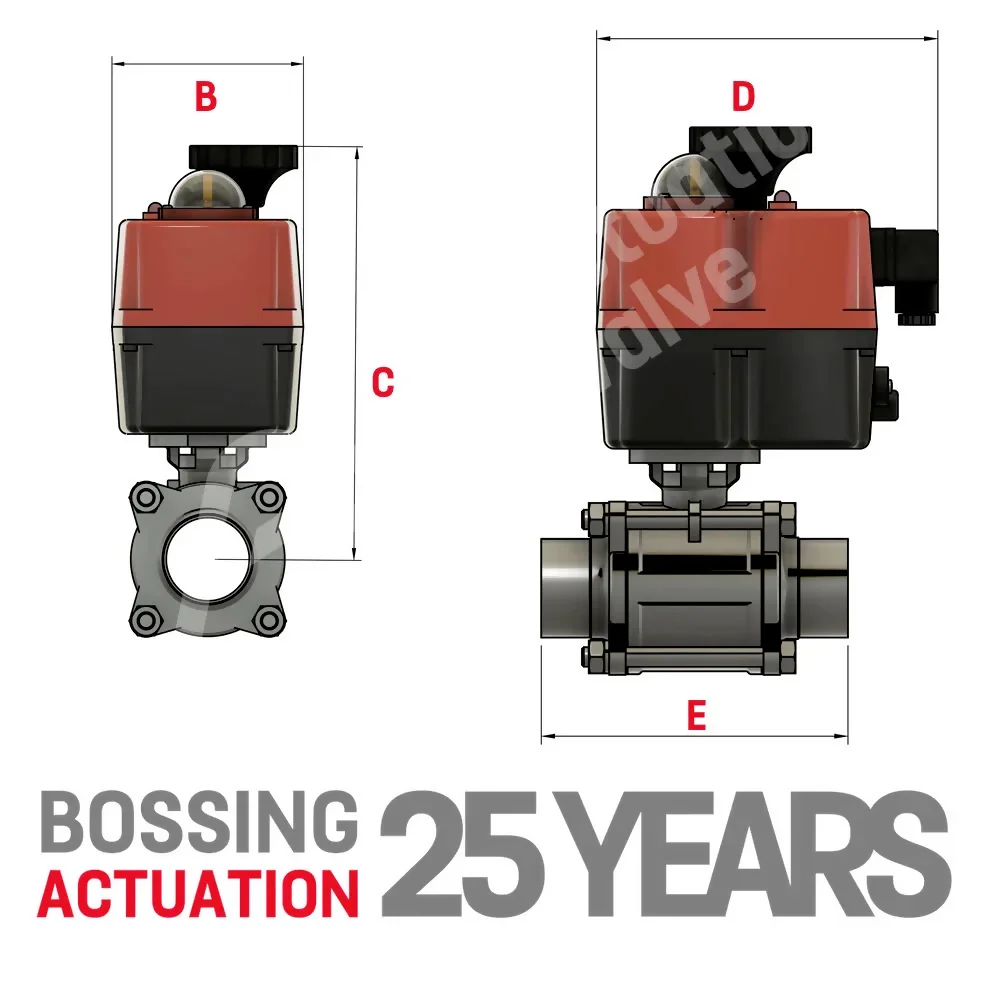

Weld OD Technical Data

B C D E Model
1/4" TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA
1/2" 110.00 213.00 179.00 90.00 J4CS20
3/4" 110.00 220.00 179.00 90.00 J4CS20
1" 110.00 229.00 179.00 100.00 J4CS20
1 1/4" TBA TBA TBA TBA TBA
1 1/2" 110.00 242.00 179.00 125.00 J4CS35
2" 110.00 274.00 181.00 150.00 J4CS55
2 1/2" 110.00 296.00 181.00 190.00 J4CS85
3" 214.00 363.00 235.00 220.00 J4CS140
4" 214.00 394.00 235.00 270.00 J4CS140
5' TBA TBA TBA TBA TBA

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Specifications
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600® Cavity Filled Seats & Seals
Seat Approvals: 3A, FDA & Wras Approved
Cleaning: Suitable for Steam Cleaning & Sterilisation to 200 Deg C
Design Standard: MSS SP-110, BS4825
Surface Finish: Chemically Polished External/Mechanical Ra 32 / 0.8um Internal
Inspection & Testing: MSS SP-110
Face 2 Face: ASME B16.10
Pressure Rating: 400 PSI

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.

Actuator Tech

  • PDF
DRAWINGS & SCHEMATICS

J4CS20
  • PDF
DRAWINGS & SCHEMATICS

J4CS35
  • PDF
DRAWINGS & SCHEMATICS

J4CS55
  • PDF
DRAWINGS & SCHEMATICS

J4CS85
  • PDF
DRAWINGS & SCHEMATICS

J4CS140
  • PDF
DRAWINGS & SCHEMATICS

J4CS300
