Our BV-L5K00XL/5N00XL 3-Way motor-operated multiport ball valves offer a range of process diversion capabilities through the use of L and T port ball designs. These valves, which are flanged and rated for PN16 and PN40 pressure levels, present medium and high-pressure options depending on your specific application needs. They are also straightforward to install. When it comes to pneumatic actuation, you can choose between fail-safe and fail-in-position setups, both of which are available with double-acting and spring-return units. You can specify your preference at the time of ordering. These valves are particularly well-suited for applications requiring frequent On/Off cycles, such as material handling equipment (MHE), due to their high cycle life expectancy. It's worth noting that Hytork actuators have achieved a SIL rating for several million cycles, underscoring their proven reliability.

Shop Help Me

Key features and benefits of BV-L5K00XL & BV-L5N00XL Actuated Ball Valves.

Key Features

Our engineers, deeply attuned to real-world demands, have designed products that stand up to shocks, vibrations, and harsh conditions, all while delivering efficient performance that lowers energy costs for end-users.

Key Features

Discover our extensive selection of stainless steel 3-Way ball valves, meticulously engineered to cater to your specific applications, even in high-pressure environments of up to 40 bar where longevity is crucial. With a wide range of sizes available, we guarantee you'll find the perfect fit for your needs.

Key Features

Improve your operations with our pneumatically actuated rack and pinion system, offering more precise control than traditional designs and safeguarding your components against premature wear and tear. Reach out to us today for more details on how our solutions can improve your application's performance!"

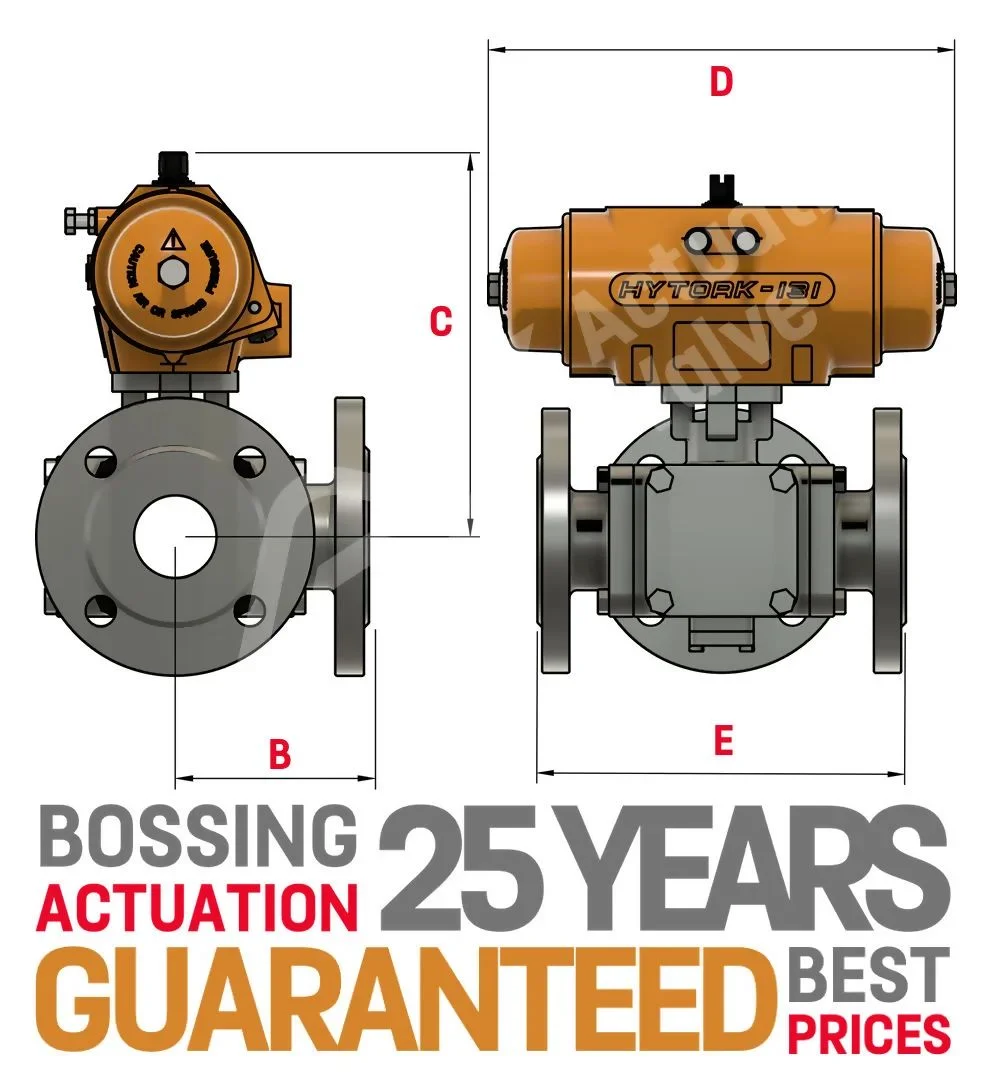

	B	C	D	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA
1/4"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3/8"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
1/2"	TBA	175.40	221.80	TBA	157.50	165.00	150.00
3/4"	TBA	179.40	221.80	TBA	179.40	221.80	165.00
1"	TBA	190.40	221.80	TBA	190.40	221.80	181.00
1 1/4"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
1 1/2"	TBA	223.40	292.00	TBA	207.40	221.80	190.00
2"	TBA	236.05	331.60	TBA	230.40	292.00	212.00
2 1/2"	TBA	266.09	349.80	TBA	251.05	331.60	230.00
3"	TBA	288.00	462.00	TBA	278.90	349.80	310.00 / 340.00
4"	TBA	354.00	582.00	TBA	319.00	292.00	352.00 / 386.00

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

Document

DRAWINGS & SCHEMATICS

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	PTFE
Stem Packing Material:	PTFE
Design Standard:	DIN3357 1,2, EN 12516-1
Wall Thickness:	ASME B16.34, EN12516-1
Inspection & Testing:	DIN3230/3, EN 12266
Face 2 Face:	DIN 3202 F4 (1/2" - 4") & DIN 3202 F5 (5" - 6")

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

CERTIFICATES & APPROVALS

Document

CERTIFICATES & APPROVALS

Hytork Actuator Videos

Hytork Overview

Multiple valve configurations are accessible to match your specific application needs. You can either request a configurator or contact us directly, and our experts in 3-Way valves will guide you through the available options.
