3 Port Motorised Valves - BSPP Reduced Bore RB AV-Lite Actuator Ball Valves

3-Way Ball Valves are commonly employed as valves with multiple ports or positions. They enable the redirection and blending of flow paths from different connecting pipelines. Depending on your needs, this can be done with either an L or T Port configuration. These valves are available with threaded connections in NPT & BSP. The versatile and cost-effective 3-port motorized valve is equipped with a TFM 1600 PTFE Seat, certified by the Water Regulations Approval Scheme (WRAS) and approved by the FDA. The 3-Way diverter valve includes a direct mount actuation pad for easy automation. This enables us to deliver products to you more quickly, reduce package size, and, most importantly, lower weight and cost.
Shop Help Me

Key Features

Key features and benefits of BV-L5000AV & BV-L5100AV Actuated Ball Valves.
1

Key Features

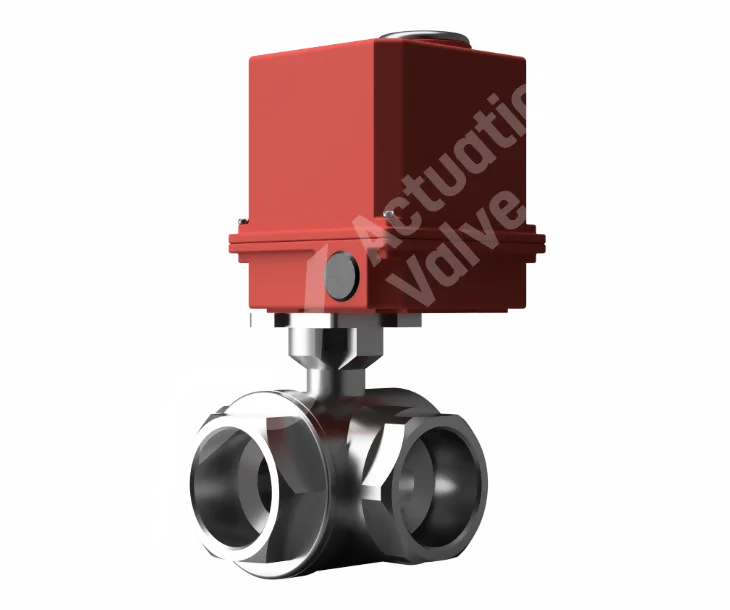

The BV-L5000 & 5100 3-Way Ball Valve is designed for screwed connections, featuring a stainless steel body that accommodates either an L or T drilled ball configuration. In the L port valve, the ball is drilled at 90 degrees from two different sides, resembling the shape of an L, while the T port valve features a single hole straight through.
2

Key Features

The BV-L5000 & 5100 represent a cost-effective range of top-quality stainless steel ball valves that won't strain your budget. These robust products offer years of trouble-free service at a fraction of the cost charged by other companies for similar items.
3

Key Features

Three-port motorized valves are frequently employed to regulate the flow direction of fluids. Depending on your application needs, they can be set up as diverter or selector valves. You can choose between L or T Port Configurations, and they are compatible with both 90-degree and 180-degree actuators.

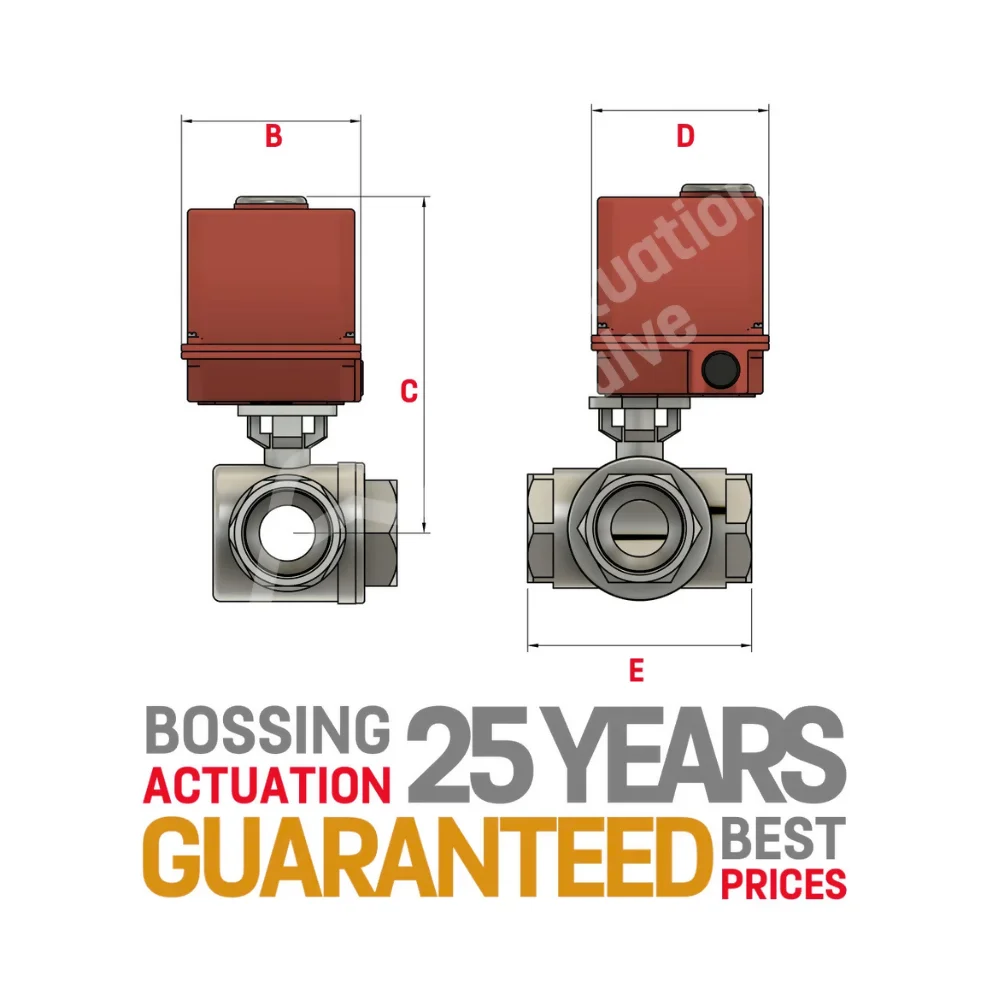

RB 3-Way Ball Valve Technical Data

B C D E Model
1/4" 100.00 153.50 145.00 79.00 AV-02
3/8" 100.00 153.50 145.00 79.00 AV-02
1/2" 100.00 153.30 145.00 79.00 AV-02
3/4" 100.00 159.50 145.00 88.00 AV-02
1" 100.00 170.00 145.00 108.00 AV-02
1 1/4" 100.00 173.50 145.00 124.00 AV-02
1 1/2" 121.90 215.00 117.00 135.00 AV-03
2" TBA TBA TBA TBA TBA
2 1/2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA
6" TBA TBA TBA TBA TBA

Right Column Header

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Specifications
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 400
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 228/1

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.
