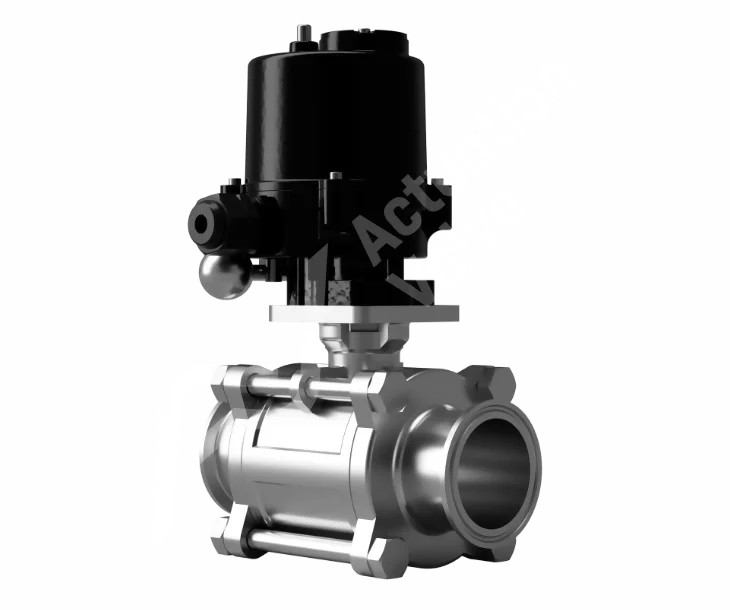

Hygienic Tri Clamp-Weld OD AV-ARES Actuator Ball Valves

The BV-A91B0AR and BV-A9CB0AR are integral components of BallValve's sanitary and hygienic full bore actuated valve packages. These valves consist of a three-piece body design with a central section that can be easily swung out for routine maintenance and seat replacement. The full bore design with cavity-filled seats ensures a smooth flow, preventing debris buildup. These valves are suitable for high-temperature use, including steam cleaning up to 200°C, CIP, and SIS. They hold FDA and WRAS seat approvals and use bovine-free materials. BallValve's AV-ARES Electric Valve Actuators have a robust, polyethylene-coated aluminium housing and IP67 protection, making them weatherproof for indoor and outdoor use.
Shop Help Me

Key Features

Key features and benefits of BV-L91B0AR & BV-L9CB0AR Actuated Ball Valves.
1

Key Features

AV-ARES electric valve actuators offer a dependable solution capable of sustaining uninterrupted operation for up to 50,000 cycles. With components that not only meet but also surpass stringent quality standards, you can have confidence that your application will function.
2

Key Features

The AV-ARES electric actuator includes a manual override function, enabling the operator to manage the process's motion in situations where power is unavailable or has malfunctioned. This safety aspect is crucial for vital equipment during emergencies, eliminating the need to wait for power to be reinstated.
3

Key Features

Utilising multi-voltage wiring enables standardisation at various sites without the necessity of model adjustments in response to fluctuations in local voltage. The AV-ARES boasts a purposefully engineered circuit board, allowing the electric actuator to function smoothly with power supplies ranging from 24-240V AC or DC.

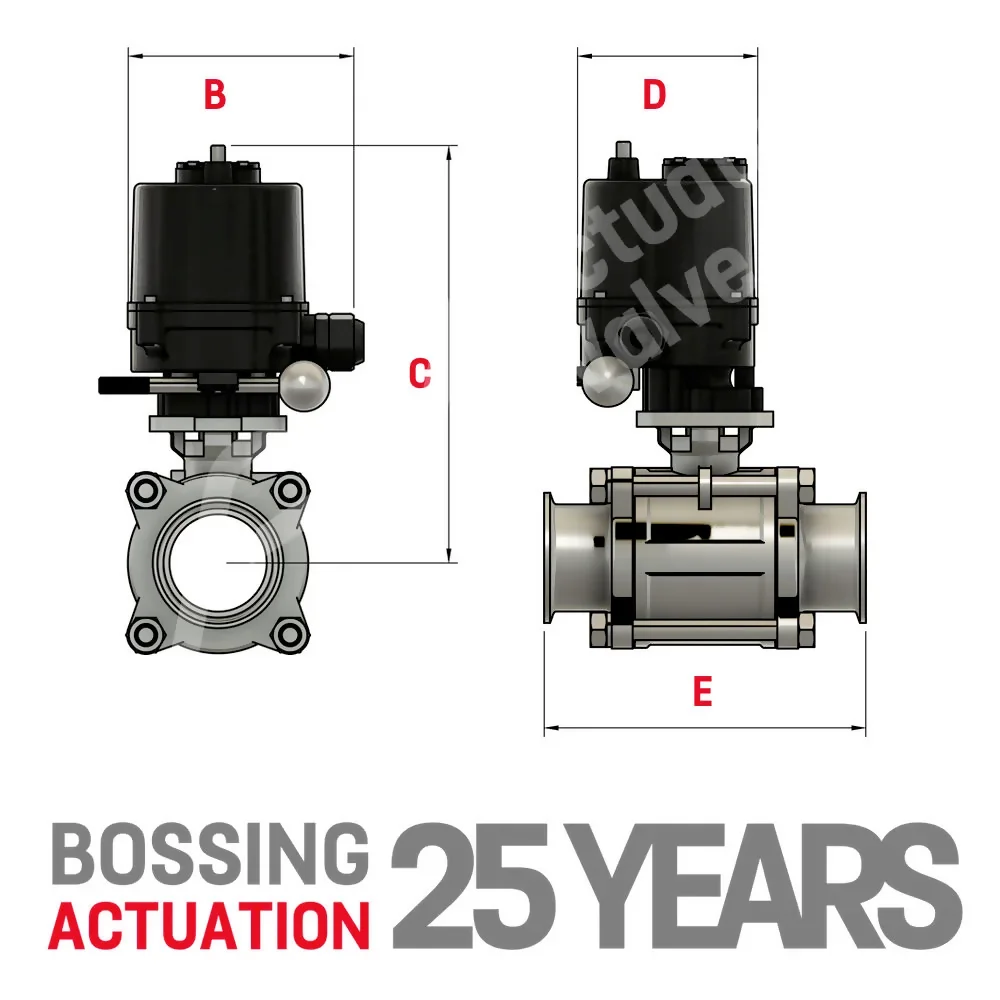

Tri Clamp Technical Data

B C D E Model
1/4" TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA
1/2" 115.00 175.00 88.00 90.00 AV-A1
3/4" 115.00 182.00 88.00 90.00 AV-A1
1" 115.00 191.00 88.00 100.00 AV-A1
1 1/4" TBA TBA TBA TBA TBA
1 1/2" 115.00 269.00 88.00 125.00 AV-A1
2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA

Tri Clamp 3D Models

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Weld OD 3D Models

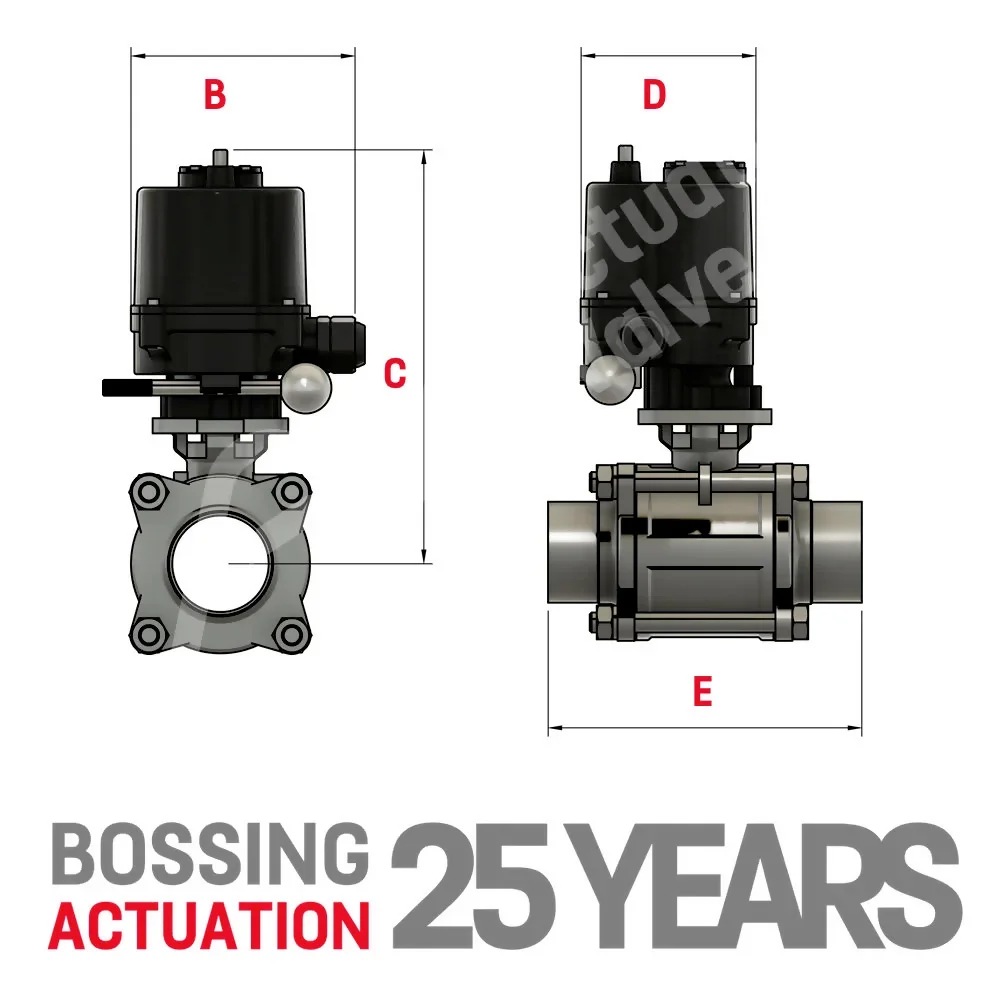

Weld OD Technical Data

B C D E Model
1/4" TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA
1/2" 115.00 175.00 88.00 90.00 AV-A1
3/4" 115.00 182.00 88.00 90.00 AV-A1
1" 115.00 191.00 88.00 100.00 AV-A1
1 1/4" TBA TBA TBA TBA TBA
1 1/2" 115.00 269.00 88.00 125.00 AV-A1
2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Specifications
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600® Cavity Filled Seats & Seals
Seat Approvals: 3A, FDA & Wras Approved
Cleaning: Suitable for Steam Cleaning & Sterilisation to 200 Deg C
Design Standard: MSS SP-110, BS4825
Surface Finish: Chemically Polished External/Mechanical Ra 32 / 0.8um Internal
Inspection & Testing: MSS SP-110
Face 2 Face: ASME B16.10
Pressure Rating: 400 PSI

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.
