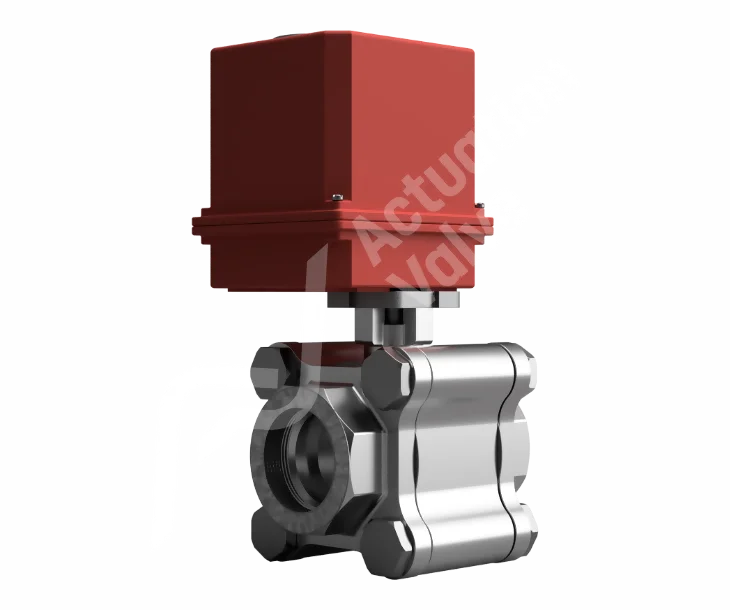

Heavy Duty Stainless Steel AV-Lite Actuated Ball Valves

The BV-L8000FSAV heavy-duty ball valves are suitable for heavy-duty industrial applications where higher pressure ranges or temperatures may be necessary. These valves feature PTFE TFM 4215 ball seats with grafoil stem sealing. The leading BV-L8000FSAV Ball Valve has been specifically designed for small to medium-sized control systems with reduced torques. This can help in cutting costs and improving performance by ensuring smooth valve operation. Our team has decades of experience working with complex automation systems, enabling us to deliver high-quality products quickly and affordably. Just let us know your requirements, and we will handle the rest.
Shop Help Me

Key Features

Key features and benefits of BV-L8000AV, BV-L8100AV & BV-L8200AV Actuated Ball Valves.
1

Key Features

By using a 3-piece design we can easily remove the center section for seal replacements without having to take apart the entire valve. This allows us to keep your equipment running smoothly and efficiently with minimal downtime required for maintenance work on your end.
2

Key Features

The industry-leading BV-L8000FS Ball Valve has been designed specifically for small to medium sized control systems with reduced torques. This can help reduce costs and increase performance by allowing smooth operation from your valves.
3

Key Features

The BV-L8000FS Ball Valve's low torque demands enable smooth operation and cost reduction for actuated ball valves. Smaller actuators can now automate valves that typically require larger units, resulting in cost savings.

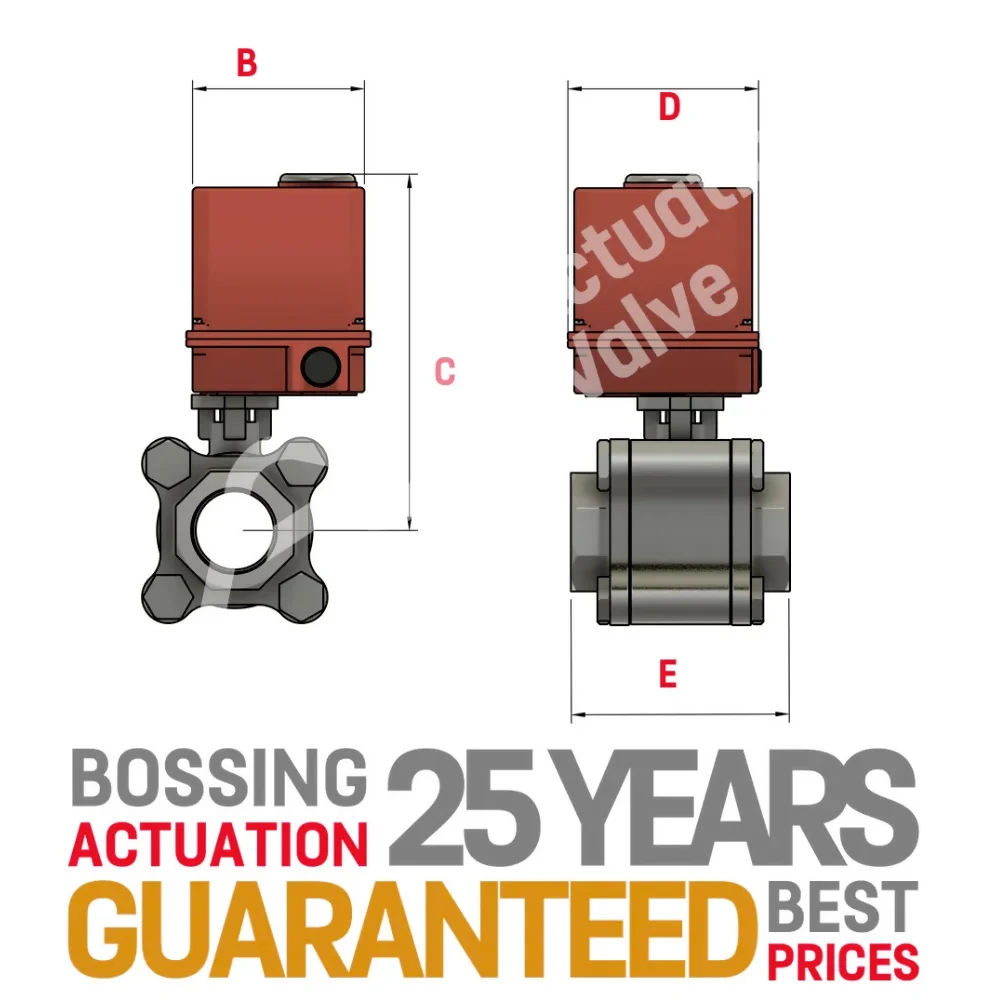

Screwed/Socket Weld Technical Data

B C D E Model
1/4" 100.00 153.50 145.00 75.00 AV-02
3/8" 100.00 153.50 145.00 75.00 AV-02
1/2" 100.00 153.50 145.00 75.00 AV-02
3/4" 100.00 161.50 145.00 80.00 AV-02
1" 100.00 168.50 145.00 90.00 AV-02
1 1/4" 100.00 173.50 145.00 110.00 AV-02
1 1/2" 121.90 216.50 117.00 120.00 AV-03
2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA

Screwed/Socket Weld Valve 3D Models

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Butt Weld Valve 3D Models

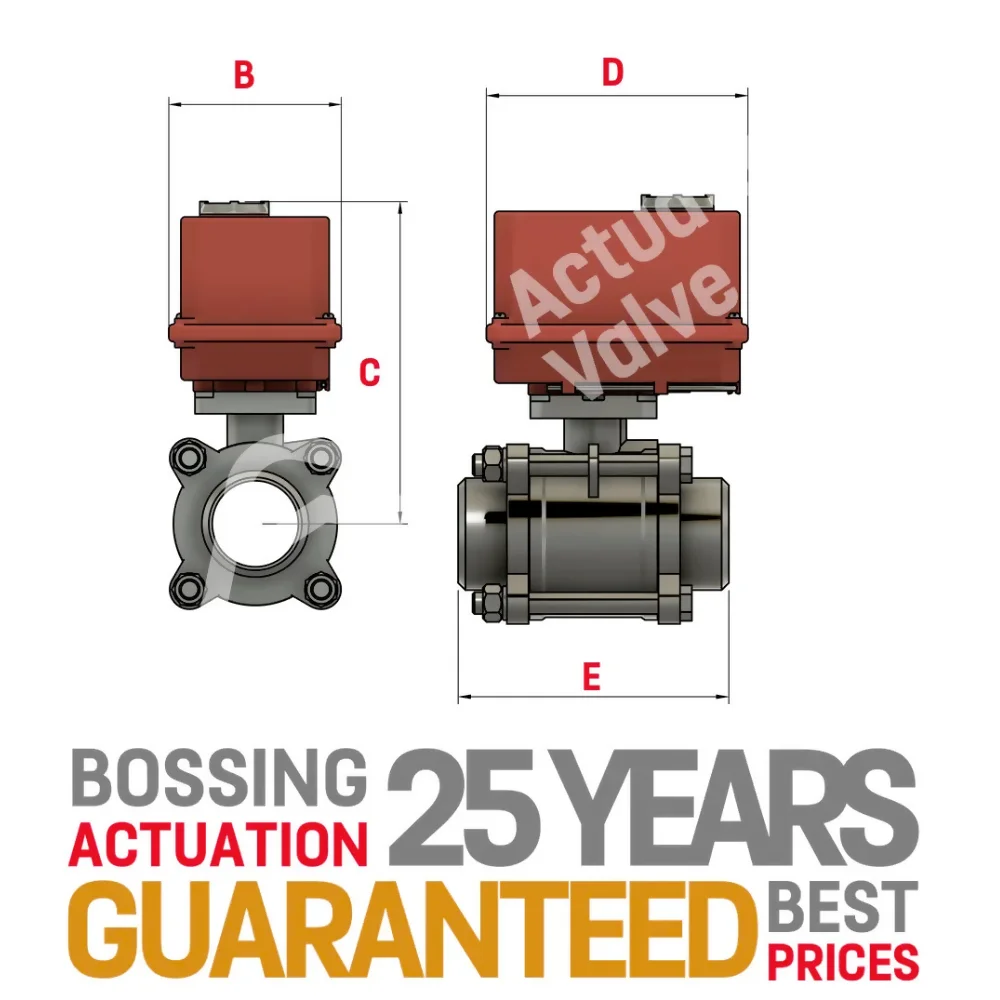

Butt Weld Valve Technical Data

B C D E Model
1/4" 100.00 153.50 145.00 43.00 AV-02
3/8" 100.00 153.50 145.00 43.00 AV-02
1/2" 100.00 153.50 145.00 43.00 AV-02
3/4" 100.00 161.50 145.00 51.00 AV-02
1" 100.00 168.50 145.00 58.00 AV-02
1 1/4" 100.00 173.50 145.00 63.00 AV-03
1 1/2" 121.90 216.50 117.00 75.00 AV-03
2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Specifications
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 4215® (25% Carbon Filled TFM)
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing: MSS SP-110
BSP Ends: ISO 7-1 (DIN 2999)
NPT Ends: ASME B1.20.1
Socket Weld Ends: ASME B16.11
Butt Weld Ends: ASME B16.25 (Sch 80)

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.
