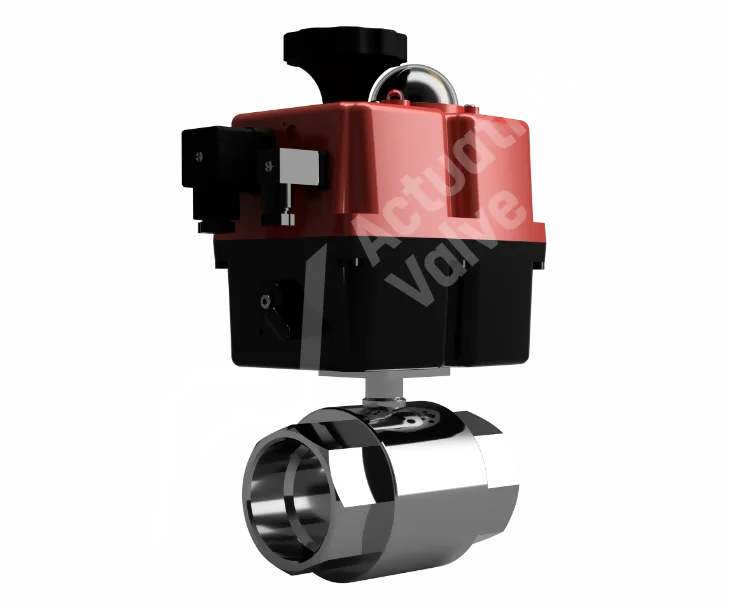

J4CS J&J Electric Actuator 2 Piece Stainless Steel Valves

The Stainless Steel Ball Valve is cost-effective for residential use and robust enough for commercial applications. It is crafted from high-quality materials that will endure for many years without the excessive wear observed in some valves from other manufacturers. The BV-L2000, a two-piece full-bore stainless steel ball valve, has been specifically designed for use in high-stress environments where space is limited or weight reduction is crucial. This compact unit reduces the overall package size when compared to three-piece designs, resulting in a lighter-weight valve that can be operated with precision. J&J Electric Actuators provides a digital positioner that enables precise control of your valves, with operational torques ranging from 20NM to 300NM. The DPS kit accepts various instrumentation signals, including 4-20mA, 0-20mA, 0-10V, or 1-10V.
Shop Help Me

Key Features

Key features and benefits of BV-L2000JJ Actuated Ball Valves.
1

Key Features

The BV-L2000 Ball Valves are devoid of silicone and are well-suited for application in oil-based paint products and processes. This ensures complete confidence that the valve won't introduce any contamination to the medium, which could potentially impact the final finish. This is of utmost importance in car manufacturing.
2

Key Features

Our assortment of stainless steel ball valves has been meticulously designed to cater to your requirements, whether for high or low-pressure applications where extended service life is crucial. Furthermore, we provide our ball valves in a variety of sizes, ensuring that you'll find precisely what you need at a reasonable price.
3

Key Features

The J&J J4CS electric valve actuators are engineered for a 75% duty rating. These electric actuators provide substantial cost savings when compared to pneumatic valve actuators, and they entail minimal ongoing maintenance expenses from the initial purchase onward.

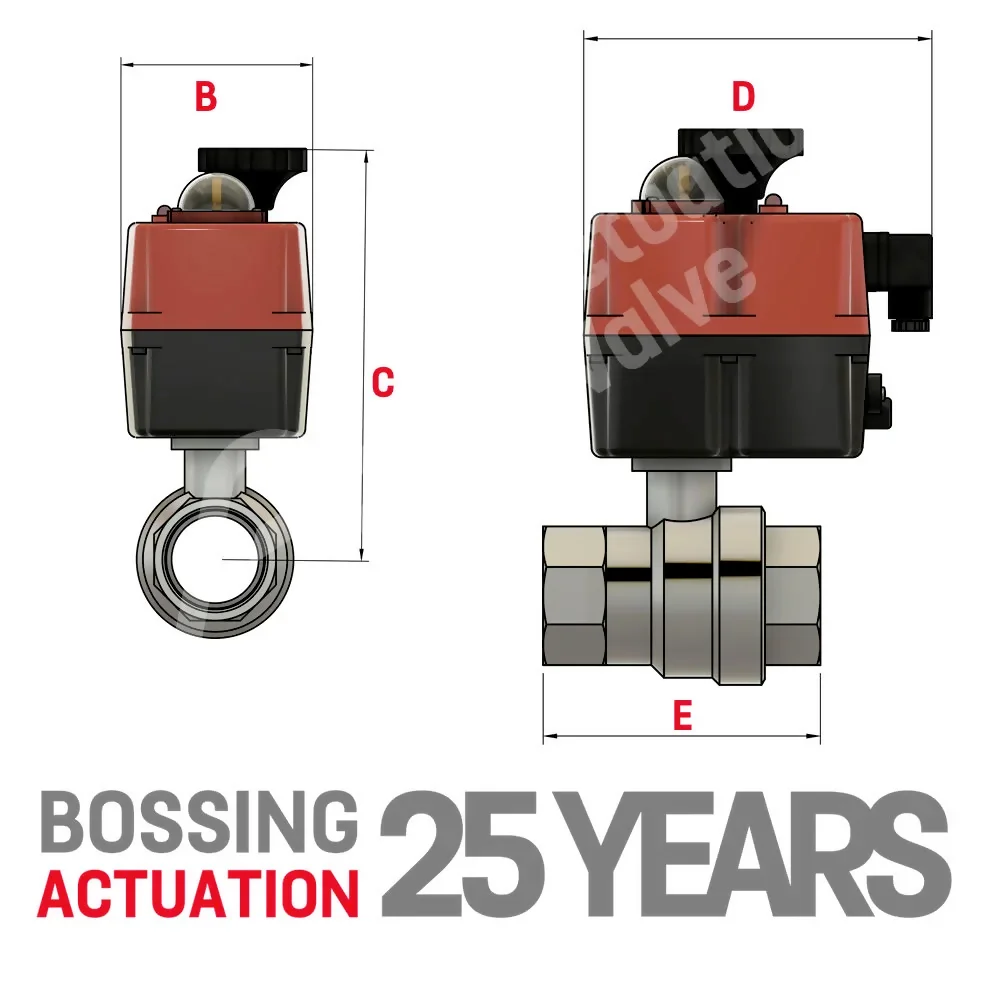

BV-L2000JJ Ball Valve Technical Data

B C D E Model
1/4" 110.00 213.50 179.00 67.00 J4CS20
3/8" 110.00 213.50 179.00 67.00 J4CS20
1/2" 110.00 213.50 179.00 67.00 J4CS20
3/4" 110.00 220.00 179.00 70.40 J4CS20
1" 110.00 229.00 179.00 85.00 J4CS20
1 1/4" 110.00 233.50 179.00 94.00 J4CS20
1 1/2" 110.00 242.50 179.00 105.00 J4CS35
2" 110.00 274.50 181.00 125.00 J4CS55
2 1/2" 110.00 296.00 181.00 155.00 J4CS85
3" 214.00 363.00 235.00 173.00 J4CS140
4" TBA TBA TBA TBA TBA

BV-L2000JJ Ball Valve 3D Models

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Specifications
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
Face 2 Face: ASME B16.10
Pressure Rating: 1000 PSI

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.

Actuator Tech

  • PDF
DRAWINGS & SCHEMATICS

J4CS20
  • PDF
DRAWINGS & SCHEMATICS

J4CS35
  • PDF
DRAWINGS & SCHEMATICS

J4CS55
  • PDF
DRAWINGS & SCHEMATICS

J4CS85
  • PDF
DRAWINGS & SCHEMATICS

J4CS140
  • PDF
DRAWINGS & SCHEMATICS

J4CS300
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
