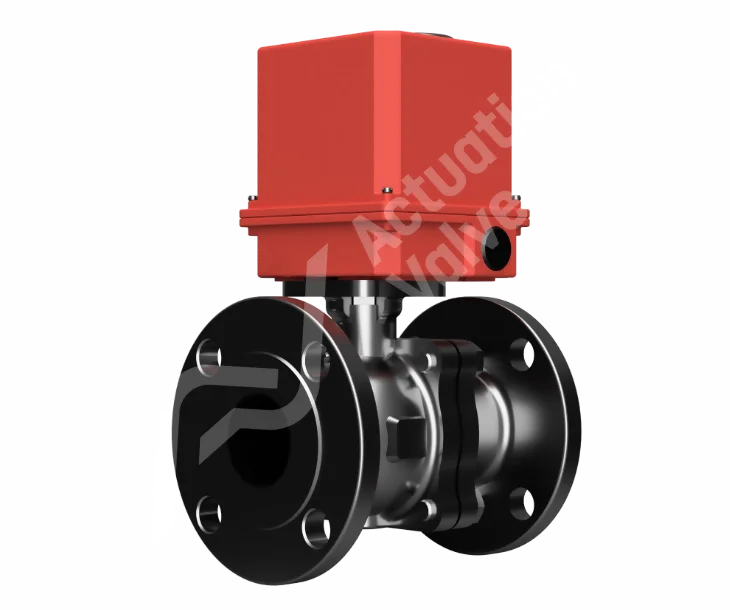

Stainless Steel ANSI 150 AV-Lite Electric Actuator Valves

The WRAS approved TFM 1600 PTFE seats ensure safe operation, while our FDA-approved materials provide assurance that your products will be handled securely without compromising quality or performance when used correctly. This package is an ideal choice for those dealing with moderately aggressive water conditions and harsh external environments. It has been crafted using only high-quality materials from the manufacturer Kingdom Controls. The valve features a direct mount actuation pad for swift and straightforward automation. This enables us to expedite product delivery to you, reduce the overall package size, and, most importantly, minimise both weight and cost.

Key Features

Key features and benefits of BV-L6100AV Actuated Ball Valves.
1

Key Features

Our WRAS-approved TFM 1600 PTFE seats guarantee secure operation, and our FDA-approved materials offer the assurance that your products will be handled safely, without compromising quality or performance when used correctly.
2

Key Features

Our selection of stainless steel ball valves is meticulously crafted to cater to applications with pressure demands of up to 20 bar, prioritising long-term durability. Furthermore, we provide these ball valves in various sizes, ensuring that you'll find precisely what you require.
3

Key Features

Switching from traditional ball valves to our low-torque BV-L6100 Ball Valve not only saves you money on installation and maintenance but also enhances overall reliability. Our product is designed with the end-user in consideration, and we have a deep understanding of what works best for industrial automation.

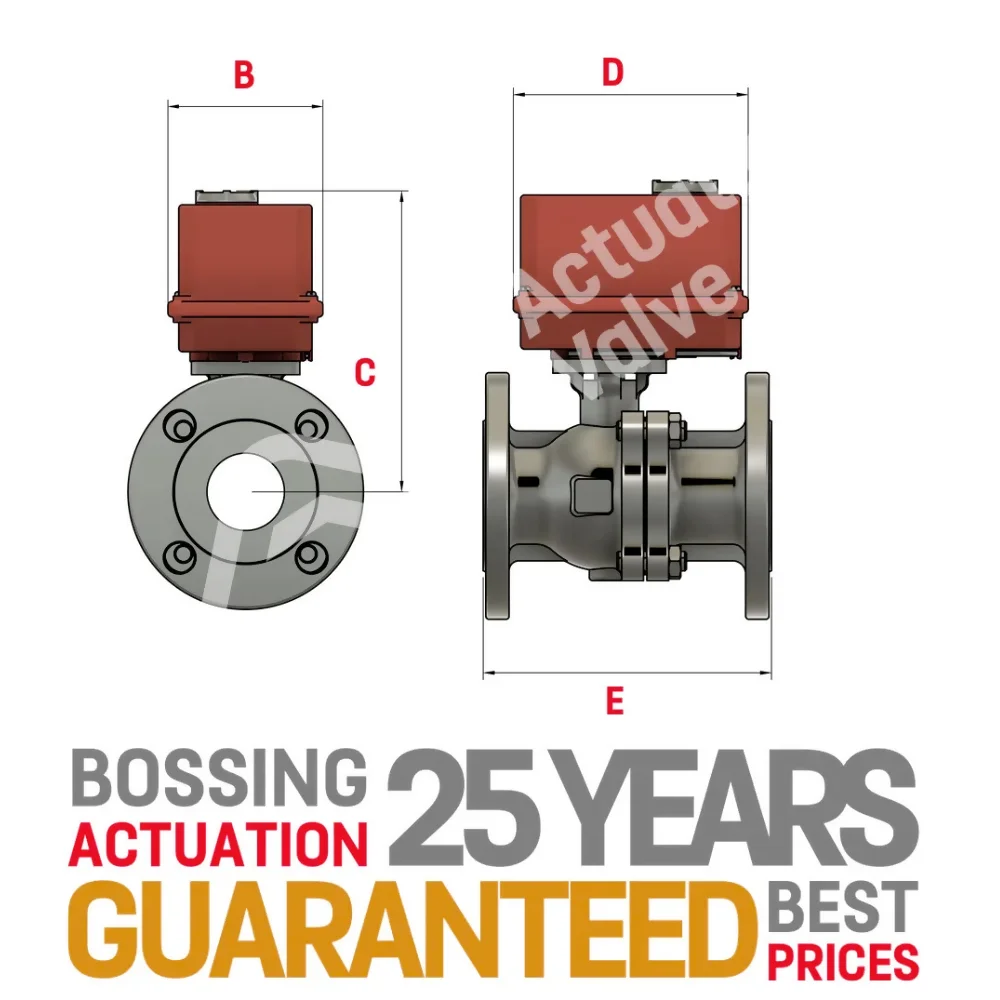

Flanged ANSI 150 Technical Data

B C D E Model
1/2" 100.00 159.50 145.00 108.00 AV-02
3/4" 100.00 163.50 145.00 117.00 AV-02
1" 100.00 169.50 145.00 127.00 AV-02
1 1/4" 100.00 181.50 145.00 140.00 AV-02
1 1/2" 121.90 217.50 117.00 165.00 AV-02
2" 121.90 223.50 117.00 178.00 AV-03
2 1/2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA
6" TBA TBA TBA TBA TBA

Flanged ANSI 150 3D Models

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Specifications

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
Face 2 Face: ASME B16.10

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
