J4CS J&J Electric Actuator PN16-PN40 3-Way Ball Valves

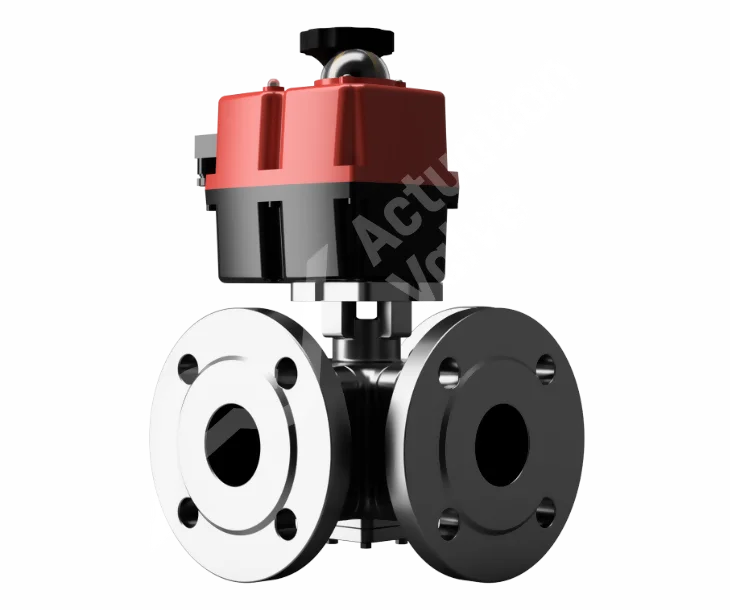

The 3-Way diverter valve has a direct mount actuation pad for easy automation. This speeds up product delivery, reduces package size, weight, and cost. The J&J Electric Valve Actuator includes a sturdy manual override handle for reliable backup during power outages. You can switch between open and closed positions until power is restored, ensuring safety. These 3-Way Ball Valves, available in L Port or T Port configurations, regulate temperature in heating and hot water systems by controlling liquid flow in different directions or diverting it as needed.
Shop Help Me

Key Features

Key features and benefits of BV-L5K00JJ & BV-L5N00JJ Actuated Ball Valves.
1

Key Features

The BV-L5300 & 5400 Full Bore Actuated Ball Valves represent an exceptional choice for applications in harsh or corrosive environments where standard ranges may not be suitable. These valves are constructed with a CF8M body and a ball crafted from high-quality stainless steel, ensuring their resilience in the face of the most challenging conditions.
2

Key Features

The 3-Way diverter valve incorporates a direct mount actuation pad, facilitating swift and straightforward automation. This streamlined approach enables us to expedite the delivery of products to you while simultaneously reducing the overall package footprint, as well as, significantly, weight and cost.
3

Key Features

J&J Electric Actuators provide robust polyamide electric actuator housing suitable for use in both indoor and outdoor industrial environments. Our actuators boast ingress protection to IP67 (Temporary Immersion), ensuring complete weatherproofing for reliable performance in various conditions.

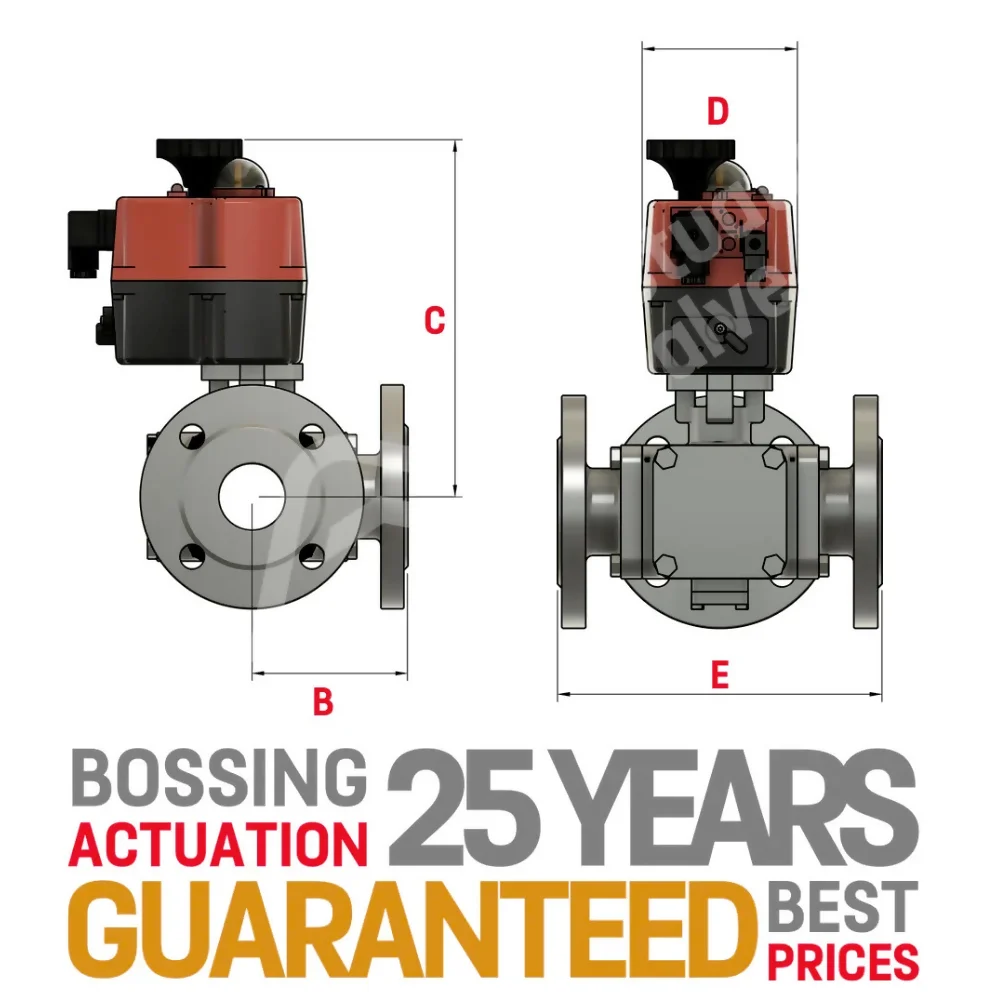

3-Way PN16 PN40 Technical Data

B C D Model E
TBA TBA TBA TBA TBA TBA
TBA TBA TBA TBA TBA TBA
1/2" TBA 224.00 110.00 J4CS20 150.00
3/4" TBA 228.00 110.00 J4CS20 165.00
1" TBA 239.00 110.00 J4CS35 181.00
1 1/4" TBA TBA TBA TBA TBA
1 1/2" TBA 281.00 110.00 J4CS55 190.00
2" TBA 288.00 110.00 J4CS85 212.00
2 1/2" TBA 361.00 214.00 J4CS140 230.00
3" TBA 373.00 214.00 J4CS140 310.00 / 340.00
4" TBA 404.00 214.00 J4CS300 352.00 / 386.00
5" TBA TBA TBA TBA TBA

3-Way PN16 PN40 Valve 3D Models

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Specifications
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: DIN3357 1,2, EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266
BSP Ends: DIN 3202 F4 (1/2" - 4") & DIN 3202 F5 (5" - 6")

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.
