3-Way Full Bore BSPP Actreg Actuator Valves

Available in threaded connections NPT & BSP, the versatile and cost-effective valve includes a WRAS (Water Regulations Advisory Scheme) Certified TFM 1600 PTFE Seat, which also holds FDA approval. Classified for potential use in explosive environments, the Actreg Actuator is suitable for Group II Category 2 Zones 1, 2, 21 & 22 in accordance with directive 2014/34/EU Atex. All actuators are certified according to the Pressure Equipment Directive (PED 2014/68/EU). Actreg's Actuator is designed for long-lasting, dependable performance and offers a wide range of materials and options for specifying alternative coatings tailored to your application needs. The pneumatic actuators combine high-quality components designed by field experts over many years. All of this is available at a competitive price point.

Key Features

Key features and benefits of BV-L5300AC & BV-L5400AC Actuated Ball Valves.
1

Key Features

The BV-L5300 & 5400 Full Bore 3-Way Ball Valves are free from silicone and are well-suited for applications involving oil-based paint products. This ensures absolute confidence that the valve will not introduce any contamination to the medium that could affect the final finish.
2

Key Features

BallValve offers rapid turnaround times without compromising on quality or expertise, and every order includes a two-page test report outlining the opening and closing times for each tested valve. Whether you require a single product or several hundred off-the-shelf components, we can provide them promptly.
3

Key Features

Actreg Pneumatic Actuators are the perfect solution for installations that require frequent on/off cycles. Designed specifically to work in applications where material handling is required, these devices can be rated up safely and securely with a high safety integrity level (SIL 3).

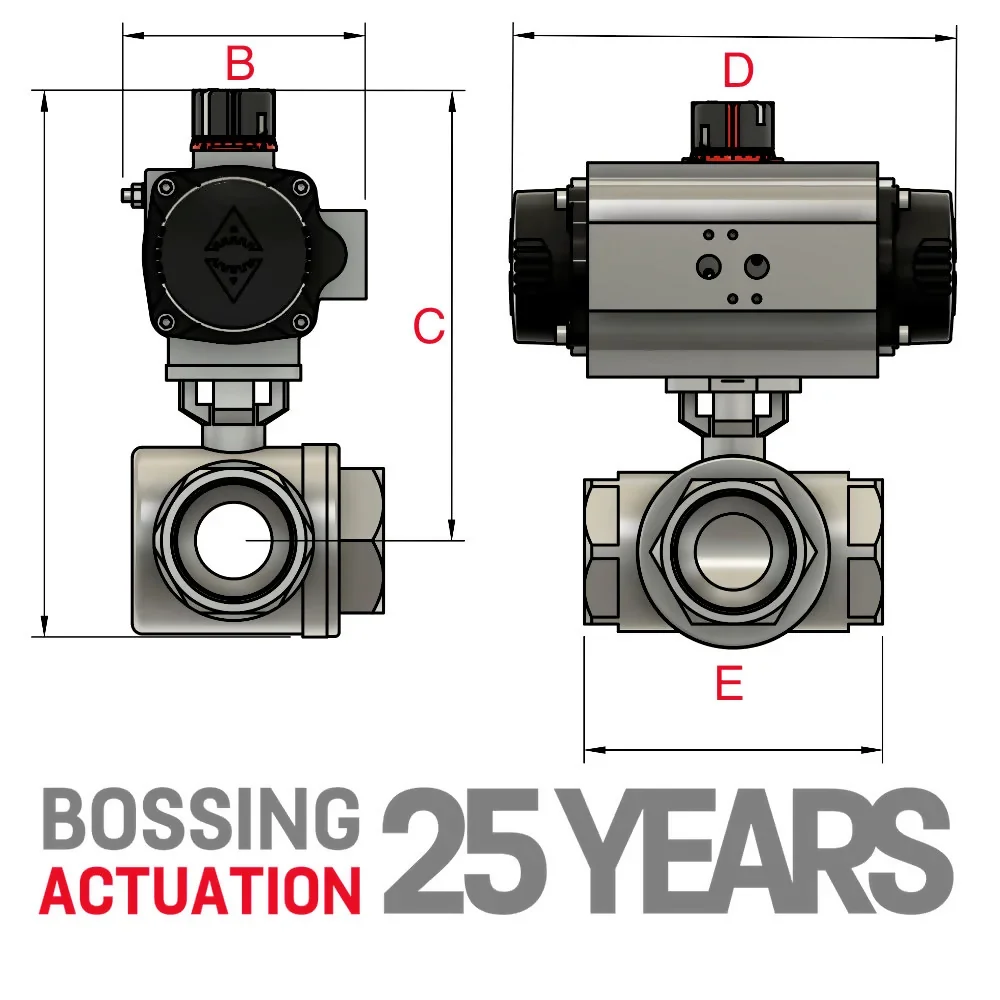

RB 3-Way Ball Valve Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 81.00 139.00 163.00 79.00 81.00 139.00 145.00 79.00
3/8" 81.00 139.00 163.00 79.00 81.00 139.00 145.00 79.00
1/2" 81.00 139.00 163.00 79.00 81.00 139.00 145.00 79.00
3/4" 81.00 145.00 163.00 88.00 81.00 145.00 145.00 88.00
1" 96.00 174.50 195.00 108.00 96.00 174.50 158.00 108.00
1 1/4" 96.00 178.00 195.00 124.00 96.00 178.00 158.00 124.00
1 1/2" 116.00 210.50 217.00 135.00 116.00 210.50 177.00 135.00
2" 116.00 219.80 217.00 164.00 116.00 219.80 177.00 164.00

RB 3-Way Ball Valve 3D Stuff

Actreg Actuator Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 400
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 7-1

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

4-20mA Control Available On This Product

The BLX V100E Series serves as an Electro-Pneumatic control device enabling the Actuator to gradually modify the Valve's positioning between fully open and fully closed states. There are variations of this product designed for both spring return and double-acting configurations, complete with feedback and safety features. Feel free to reach out to our team today to learn how the V100E can address your specific process needs.

3-Way Valve Configuration

Multiple valve configurations are accessible to match your specific application needs. You can either request a configurator or contact us directly, and our experts in 3-Way valves will guide you through the available options.
