Heavy Duty Stainless Steel Koei Electric Actuated Ball Valves

Subtotal	£0.00

The BV-L8000FSEK, BV-L8100FSEK, and BV-L8200FSEK stainless steel actuated ball valves provide a more robust alternative to the standard range of 3-piece valves. They still feature a drop-out centre section that is fully maintainable without needing to completely remove the valve. These heavy-duty actuated ball valves offer higher pressure and temperature capabilities, making them commonly used in steam applications. The stainless steel body also affords extra protection against both internal and external corrosive factors in the process. Owing to its high-performance motor, this product can operate efficiently at temperatures of -25 to 55 degrees Celsius without compromising speed or power consumption. Its ability to function in extreme conditions ensures that this electric actuator will meet all requirements reliably when most needed.

Shop Help Me

Key features and benefits of BV-L8000EK, BV-L8100EK & BV-L8200EK Actuated Ball Valves.

Key Features

Every unit is supplied with comprehensive operations and maintenance manuals as standard, alongside complimentary post-sales support. BallValve distributes the Koei UNIC Actuator globally and offers local technical assistance wherever you are in the world.

Key Features

The Koei UNIC Electric Actuator stands out for its vibration resistance and shock absorption capabilities, packaged in the most compact design currently available in the market. It guarantees smooth functioning across its entire speed range, even in environments with high shock levels.

Key Features

Specifically engineered for small to medium-sized control systems, the industry-leading BV-L8000FS Ball Valve is designed to handle reduced torques. This feature can lead to cost savings and enhanced performance, ensuring smooth valve operation.

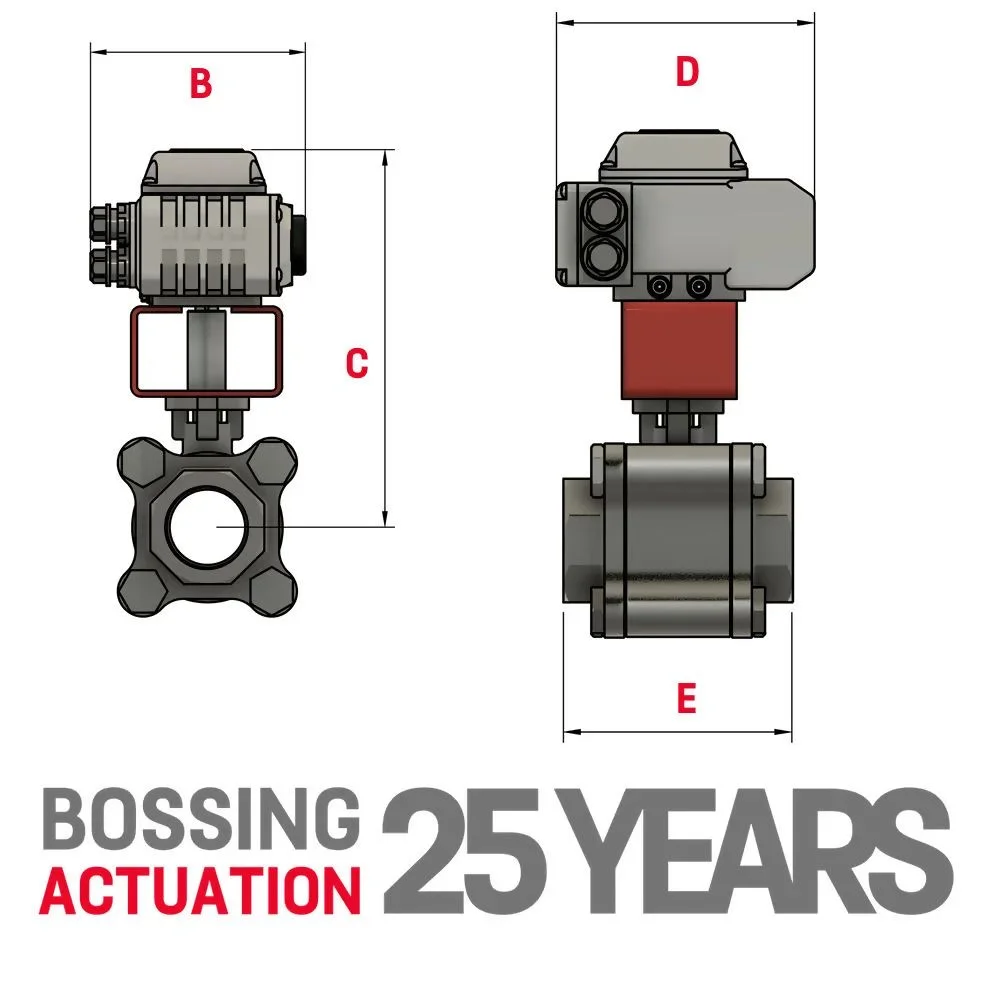

	B	C	D	E	Model
1/4"	145.00	219.00	159.00	75.00	UNIC 05
3/8"	145.00	219.00	159.00	75.00	UNIC 05
1/2"	145.00	219.00	159.00	75.00	UNIC 05
3/4"	145.00	227.00	159.00	80.00	UNIC 05
1"	145.00	234.00	159.00	90.00	UNIC 05
1 1/4"	145.00	239.00	159.00	110.00	UNIC 05
1 1/2"	145.00	251.00	159.00	120.00	UNIC 05
2"	155.00	288.00	208.00	140.00	UNIC 10
2.5"	TBA	TBA	TBA	TBA	TBA

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

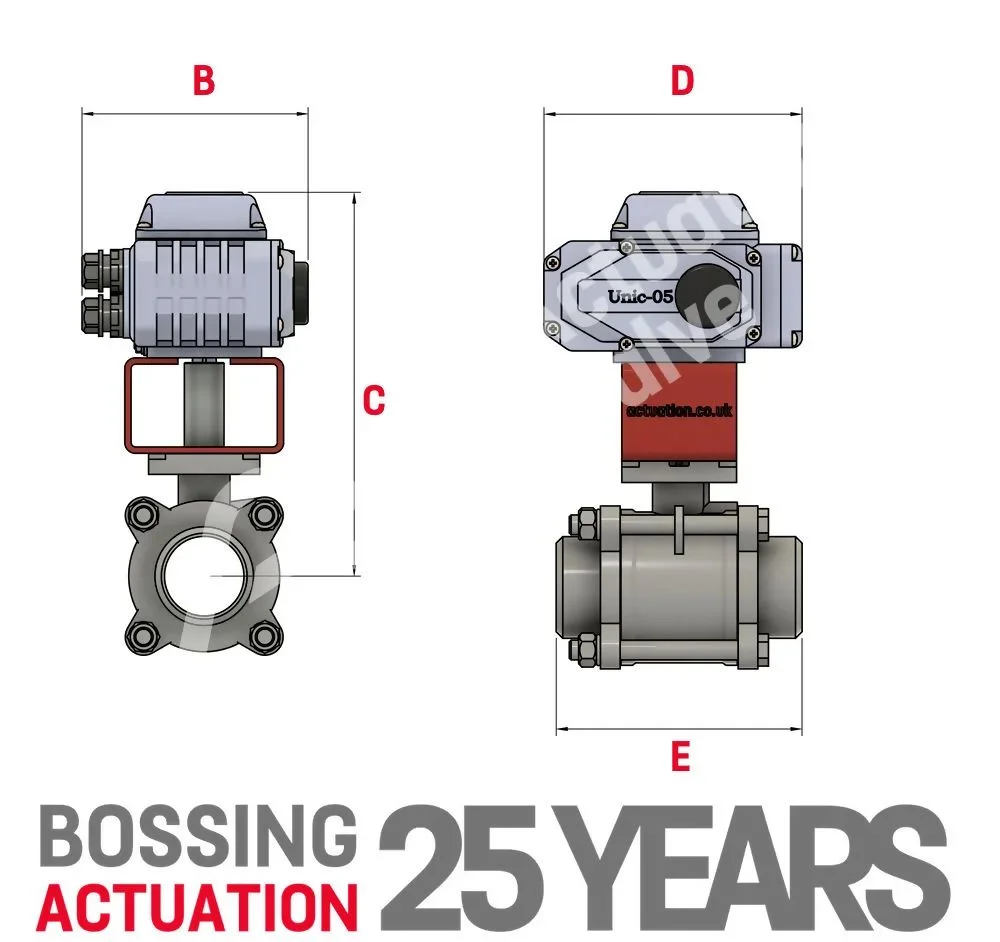

	B	C	D	E	Model
1/4"	145.00	219.00	159.00	70.00	UNIC 05
3/8"	145.00	219.00	159.00	70.00	UNIC 05
1/2"	145.00	219.00	159.00	75.00	UNIC 05
3/4"	145.00	227.00	159.00	90.00	UNIC 05
1"	145.00	234.00	159.00	100.00	UNIC 05
1 1/4"	145.00	239.00	159.00	110.00	UNIC 05
1 1/2"	145.00	251.00	159.00	125.00	UNIC 05
2"	155.00	288.00	208.00	150.00	UNIC 05
2.5"	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 4215® (25% Carbon Filled TFM)
Design Standard:	MSS SP-110
Wall Thickness:	ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing:	MSS SP-110
BSP Ends:	ISO 7-1 (DIN 2999)
NPT Ends:	ASME B1.20.1
Socket Weld Ends:	ASME B16.11
Butt Weld Ends:	ASME B16.25 (Sch 80)

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.
