2 Piece Multi Voltage Electric AV-ARES Actuated Ball Valves

If you are dealing with limited space or aiming to reduce overall package weight and cost without compromising performance or reliability, it is recommended to opt for these 2-Piece Full Bore Stainless Steel ball valves. Furthermore, the reduced torque allows for the use of a more compact actuator. The AV-ARES Electric Actuator serves as an ideal solution for your upcoming industrial automation project. This actuator, which is both compact and lightweight, facilitates easy installation and use, ultimately saving you time and money on your valve actuation project. Notably, AV-ARES Electric Valve Actuators feature a robust aluminium alloy housing that is coated with polyethylene. Additionally, our actuators offer IP67 ingress protection, ensuring complete weatherproofing and suitability for both indoor and outdoor applications.
Shop Help Me

Key Features

Key features and benefits of BV-L2000AR Actuated Ball Valves.
1

Key Features

Our selection of stainless steel ball valves is tailored to fulfil your requirements, whether for high-pressure or low-pressure scenarios, emphasising extended durability. Furthermore, we provide these ball valves in a wide array of sizes, ensuring that you will find a suitable option at a reasonable cost.
2

Key Features

The AV-ARES Electric Valve Actuator is a versatile electric actuator that enables site standardisation without requiring model changes. It is equipped with a custom circuit board, allowing the electric actuator to operate on power supplies ranging from 24-240V AC or DC.
3

Key Features

The AV-ARES Valve Actuator is equipped with a sturdy manual override lever, which serves as a dependable mechanical backup in case of a power outage. This safety function enables you to switch between open and closed positions until systems or power are restored.

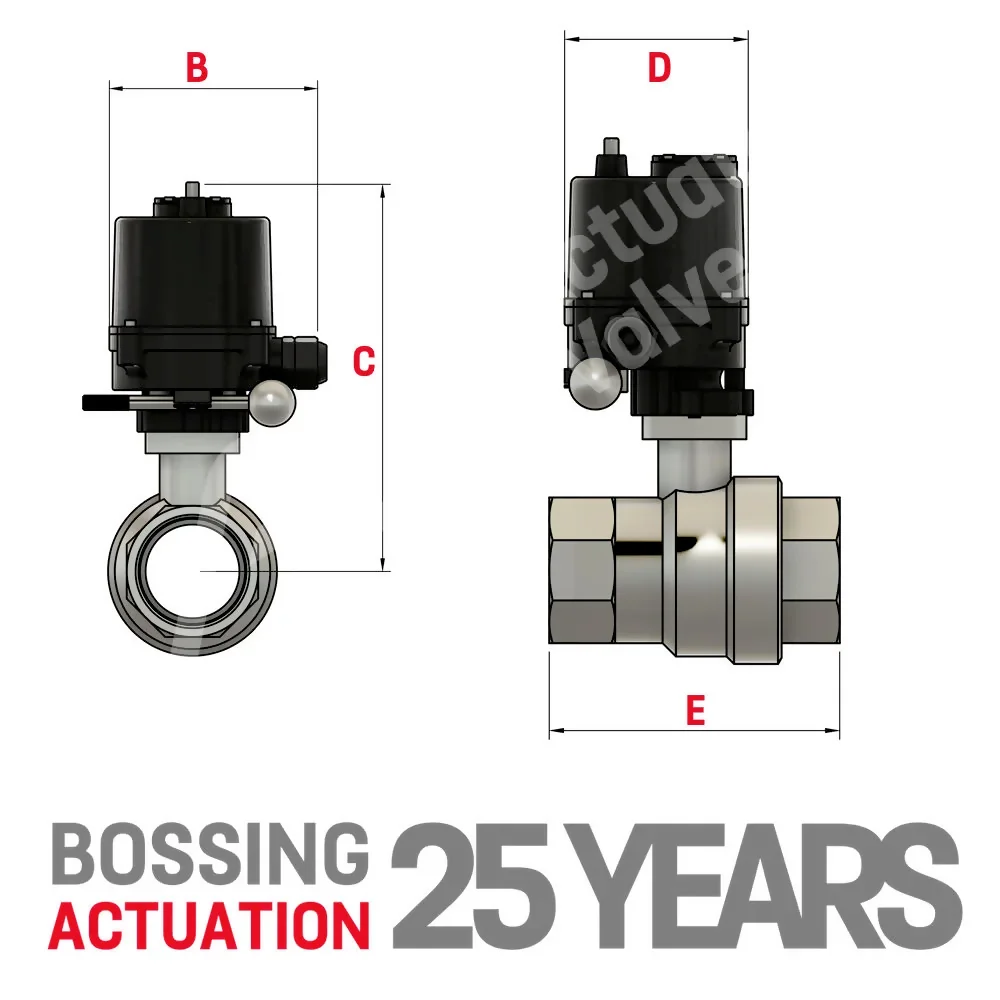

BV-A2000AR Ball Valve Technical Data

B C D E Model
1/4" 115.00 175.50 88.00 67.00 AV-A1
3/8" 115.00 175.50 88.00 67.00 AV-A1
1/2" 115.00 175.50 88.00 67.00 AV-A1
3/4" 115.00 182.00 88.00 70.40 AV-A1
1" 115.00 191.00 88.00 85.00 AV-A1
1 1/4" 115.00 195.00 88.00 94.00 AV-A1
1 1/2" 115.00 269.50 88.00 105.00 AV-A1
2" 115.00 276.50 88.00 125.00 AV-A1
2 1/2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA

BV-A2000AR Ball Valve 3D Models

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Specifications
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Shaft Material: Grafoil/316 Stainless Steel
O-Rings Material: Grafoil
Ball Material: ASME B16.34
Approvals: ASME B16.34
Mounting: API 598
End Connections: ASME B16.10
Pressure Rating: 1000 PSI

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds
