Heavy Duty Carbon Steel Hytork Actuated Ball Valves

The BV-L8000FCXL and BV-L8200FCXL are three-piece, full-bore heavy-duty actuated ball valves that present a more budget-friendly alternative to stainless steel valves, particularly suited for less corrosive settings. These valves come in nominal bore sizes ranging from 1/4" to 2" and are certified with both ATEX and firesafe API 607 credentials. You can also choose from options such as 50% stainless steel-filled seats and V-Ball modulation. For oil-based paint applications, silicone seats are available, and inspection testing adheres to MSS SP-110 standards.
Shop Help Me

Key Features

Key features and benefits of BV-L8000FCXL & BV-L8200FCXL Actuated Ball Valves.
1

Key Features

The BV-L8000FC full-bore ball valves offer an excellent solution for environments where standard brass ball valves may not be suitable. These valves feature a body constructed from high-quality A216 WCB carbon steel and a stainless steel ball, ensuring durability in demanding applications.
2

Key Features

Hytork Pneumatic Actuators introduce a more efficient design that facilitates unobstructed airflow through internal orifices, enabling faster operation speeds. This improvement is achieved through the incorporation of larger internal air passages and patented design elements.
3

Key Features

Furthermore, the bi-directional travel stops simplify the adjustment of valve stroke, thus preventing premature valve failures. Our Pneumatic Actuators are compatible with commonly used auxiliary components such as solenoid valves, position switches, gauges, and pressure regulators.

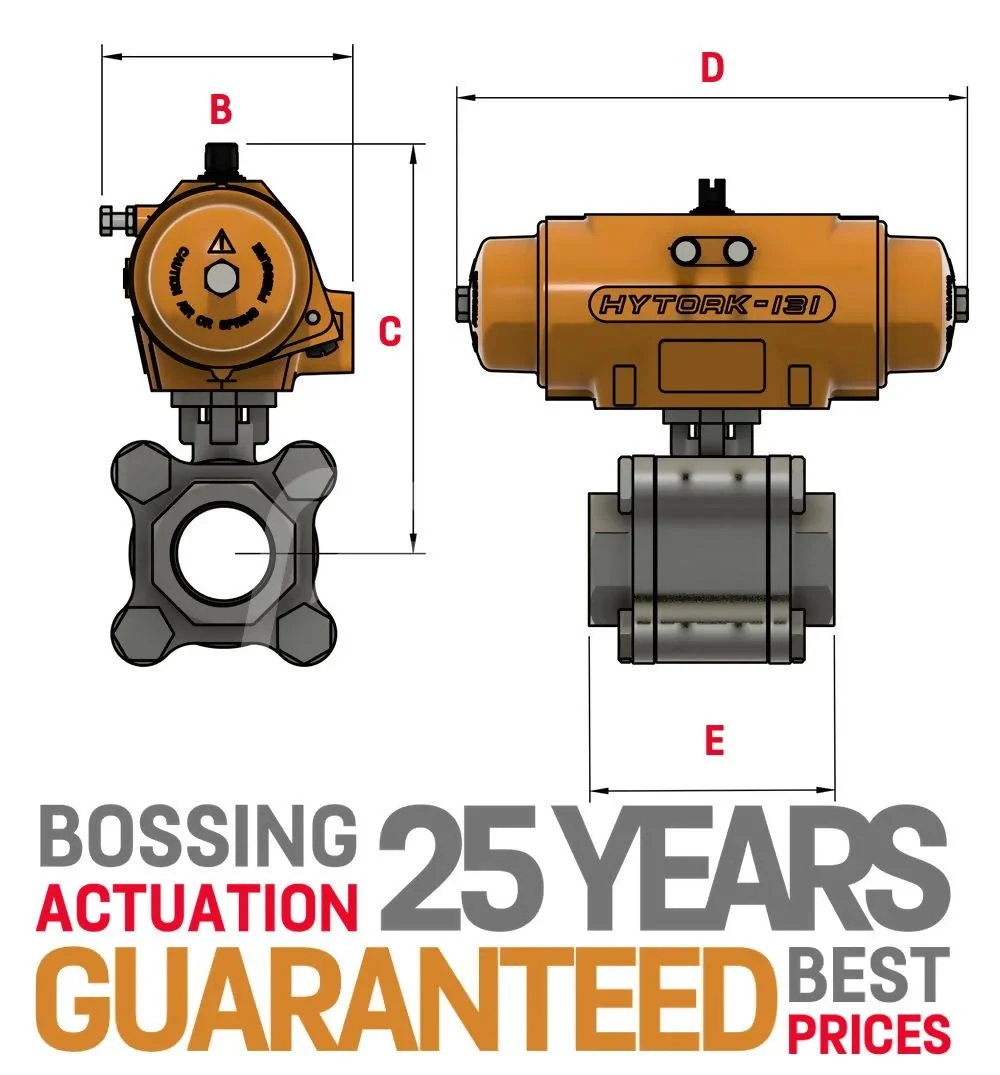

Screwed/Socket Weld Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 97.00 147.50 165.00 75.00 97.00 147.50 165.00 75.00
3/8" 97.00 147.50 165.00 75.00 97.00 147.50 165.00 75.00
1/2" 97.00 147.50 165.00 75.00 97.00 147.50 165.00 75.00
3/4" 97.00 155.50 165.00 80.00 97.00 155.50 165.00 80.00
1" 116.50 180.40 221.80 90.00 97.00 162.50 165.00 90.00
1 1/4" 116.50 185.40 221.80 110.00 116.50 185.40 221.80 110.00
1 1/2" 116.50 197.40 221.80 120.00 116.50 197.40 221.80 120.00
2" 133.50 224.40 292.00 140.00 133.50 224.40 292.00 140.00
2.5" TBA TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA TBA TBA TBA

Screwed/Socket Weld Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

SMALL Actuator Data.

  • PDF
DRAWINGS & SCHEMATICS

Hytork XL26
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL71
  • ZIP
DRAWINGS & SCHEMATICS

Hytork XL131
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL186
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL281
  • Document
DRAWINGS & SCHEMATICS

Hytork XL426

BIG Actuator Data.

  • PDF
DRAWINGS & SCHEMATICS

Hytork XL681
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL1127
  • ZIP
DRAWINGS & SCHEMATICS

Hytork XL1372
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL2586
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL4581

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Stuff
Body Material: ASTM A216 WCB Carbon Steel & 304 SS Trim
Seats Material: TFM 4215® (25% Carbon Filled TFM)
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 228/1
Socket Weld Ends: ASME B16.11
Silicone Free: Suitable For Oil Based Paints
Anti Static Device: Ball, Shaft & Valve Body

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Actuator Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

SIL
  • PDF
CERTIFICATES & APPROVALS

TR 010 EAC Customs Union
  • PDF
CERTIFICATES & APPROVALS

REACH, ROHS2, ROHS3
  • PDF
CERTIFICATES & APPROVALS

DOC
  • PDF
CERTIFICATES & APPROVALS

TR 012 EAC Customs Union

Hytork Actuator Videos

Hytork Overview

TopWorx Limit Switch Box

The TopWorx Elomatic Valve Limit Switch Box is accessible for this item. Maintain exclusivity within the Emerson Group of products featuring a globally leading Valve Position Monitor. Options include Safe Area, Explosion Proof, and Intrinsically Safe variants, all readily available in stock, with installation and calibration services provided for your Elomatic Actuator before shipment.
