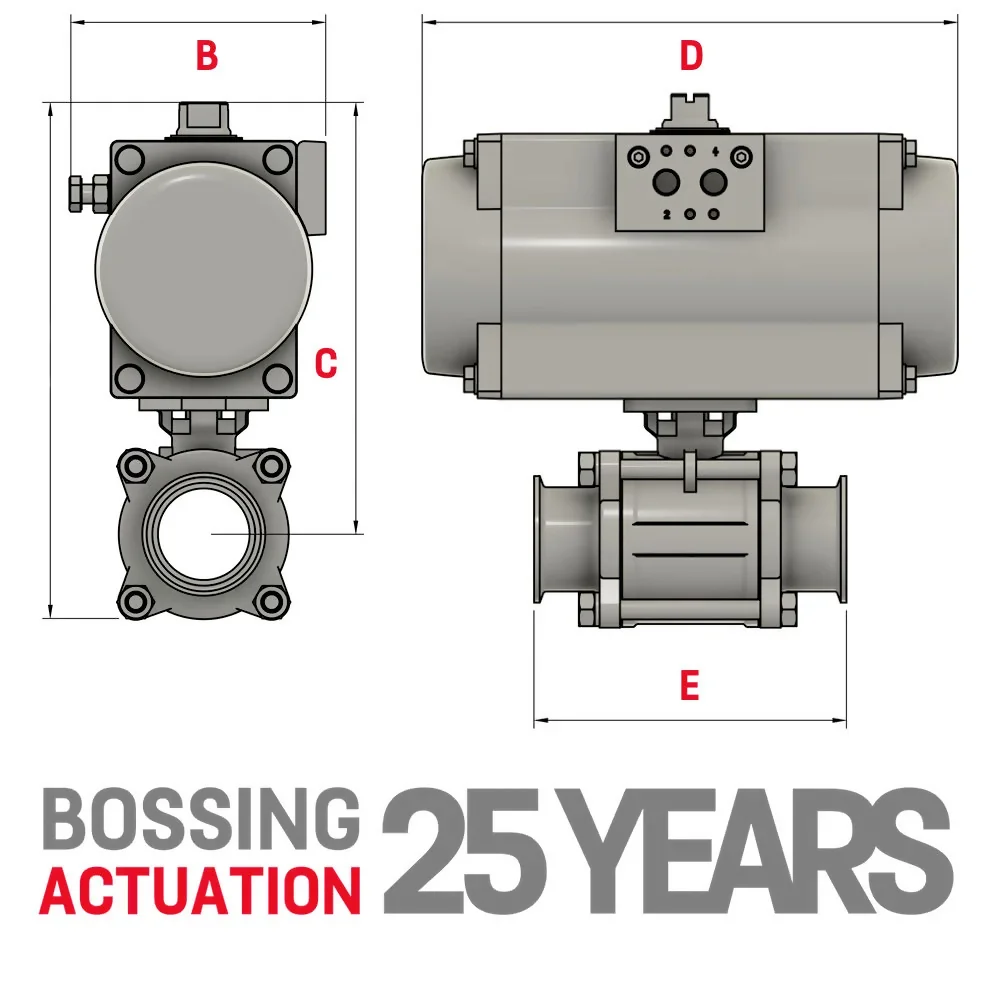

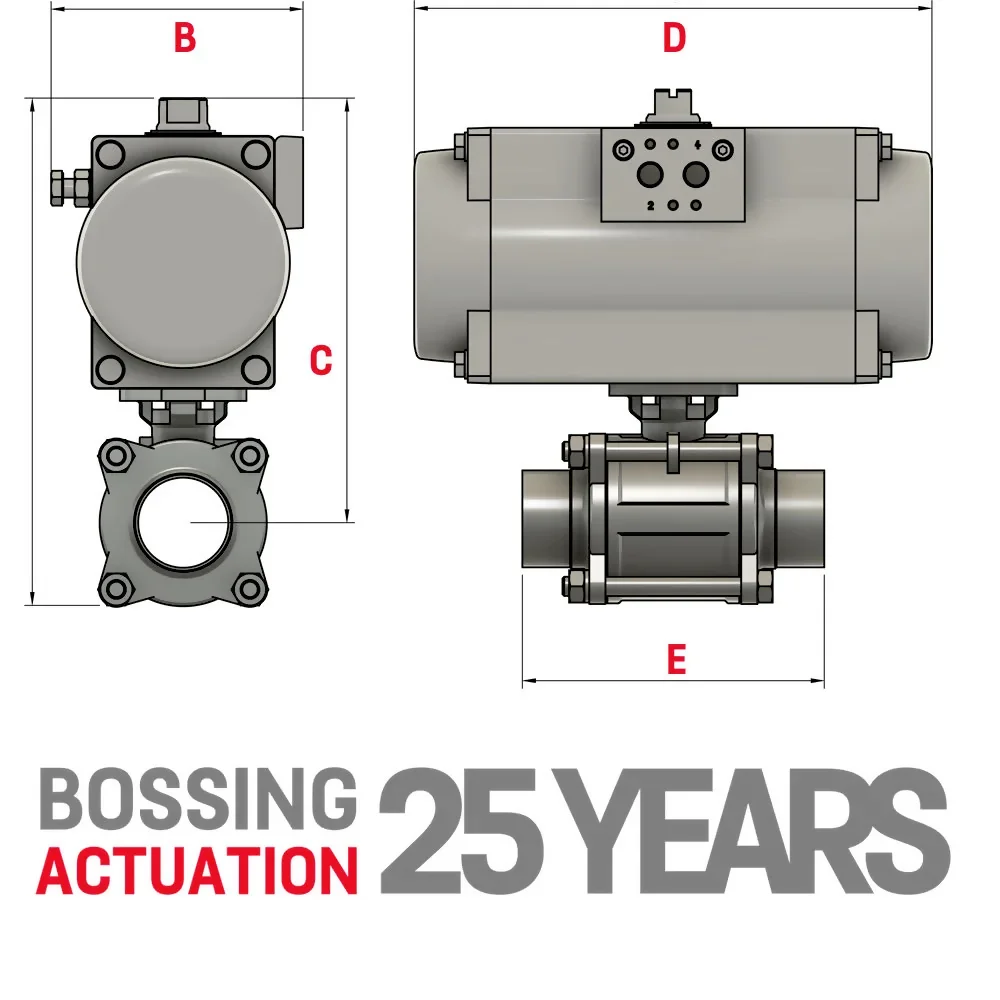

The BV-L91B0FE and BV-L9CB0FE components are integral to BallValve's sanitary and hygienic full bore actuated valve packages. These three-part body valves feature a swing-out central section designed for easy maintenance and seat replacements. With a full bore body and cavity-filled seats, they ensure an unobstructed flow path that resists debris and contaminants. These valves can withstand temperatures up to 200 degrees Celsius, making them suitable for steam cleaning, CIP, and SIS applications. Notably, they have received approvals from FDA and WRAS, guaranteeing that their seats are bovine-free. On the other hand, Festo's DFPD series of pneumatic actuators is known for its innovative design. These actuators offer exceptional performance while conserving energy and enduring harsh conditions. Their affordability makes them an excellent choice without a hefty price tag. The Festo Pneumatic Actuator is easy to install and integrate into existing compressed air supply lines. It also allows for precise control of valve positioning, with input signals ranging from 0-10V DC to 4-20mA current loop control, aided by the CMSX unit.
