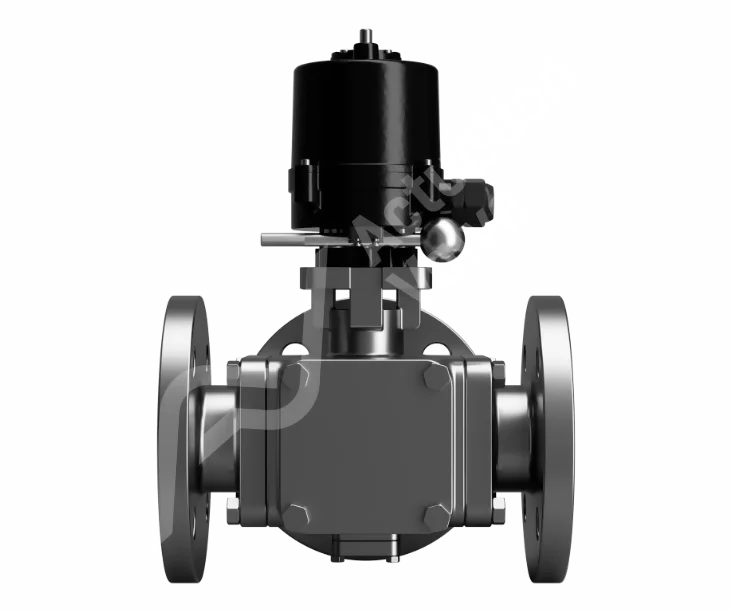

3-Way PN16-PN40 Full Bore AV-ARES Actuator Ball Valves

The BV-A5K00 & 5N00 Flanged 3-Way Stainless Steel Ball Valve is a versatile, cost-effective, and long-lasting valve designed specifically for applications where reliability is crucial. The AV-ARES electric actuators feature robust construction, high-quality components, and advanced technology to ensure optimal performance and durability over time. This electric actuator offers an affordable alternative, reducing downtime and maintenance expenses. It can operate efficiently in various environments, with a temperature range of -25 to 60 degrees Celsius, without compromising speed or power consumption. Rest assured, this electric actuator delivers outstanding performance when you need it most.
Shop Help Me

Key Features

Key features and benefits of BV-A5K00AR & BV-A5N00AR Actuated Ball Valves.
1

Key Features

The BV-A5K00 & 5N00 3-Way Ball Valve's low torque demands enable effortless operation and lead to cost savings in the automation of Ball Valves. Smaller Actuators can now be used to automate Valves that typically required larger units.
2

Key Features

Low Torque requirements from the BV-A5K00 & 5N00 3-Way Ball Valve allow for smooth operation and reduce the costs of Actuated Ball Valves with smaller Actuators able to automate Valves usually demanding large units.
3

Key Features

AV-ARES Electric Actuators provide a digital positioning system that enables accurate management of your valves, supporting operational torques of up to 40NM. They are compatible with instrumentation signals such as 4-20mA and 0-10VDC, enabling intelligent control.

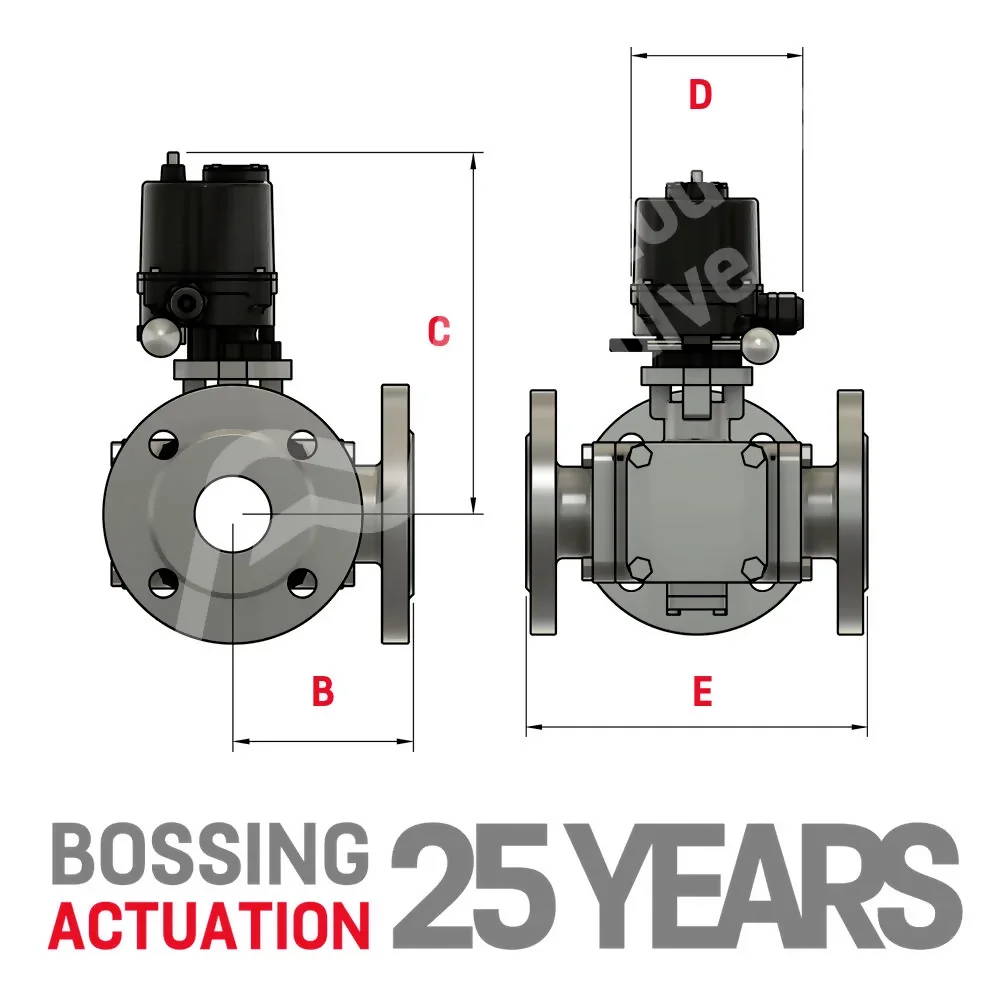

Screwed/Socket Weld Technical Data

B C D E Model
TBA TBA TBA TBA TBA TBA
TBA TBA TBA TBA TBA TBA
1/2" TBA 186.00 115.00 150.00 AV-A1
3/4" TBA 190.00 115.00 165.00 AV-A1
1" TBA 201.00 115.00 181.00 AV-A1
1 1/4" TBA TBA TBA TBA TBA
1 1/2" TBA TBA TBA TBA TBA
2" TBA TBA TBA TBA TBA
2 1/2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA

Screwed/Socket Weld Valve 3D Models

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Specifications
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: DIN3357 1,2, EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266
Face 2 Face: DIN 3202 F4 (1/2" - 4") & DIN 3202 F5 (5" - 6")

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

3-Way Valve Configuration

Multiple valve configurations are accessible to match your specific application needs. You can either request a configurator or contact us directly, and our experts in 3-Way valves will guide you through the available options.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221

3-Way PN16-PN40 AV ARES Actuator Actuated Ball Valves

(1 Items)
Refine
Hide Filters Show Filters
Sort By
  • Low to High
  • High to Low
  • A to Z
  • Z to A
  • New In

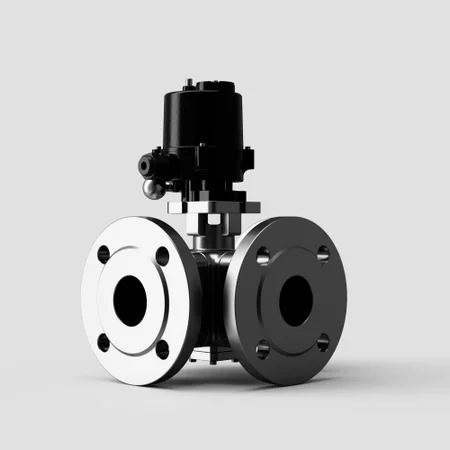

AV Ares Electric Actuated 3-Way Flanged Full Bore Ball Valve
