3-Way Reduced Bore BSPP Air Torque Actuator Ball Valves

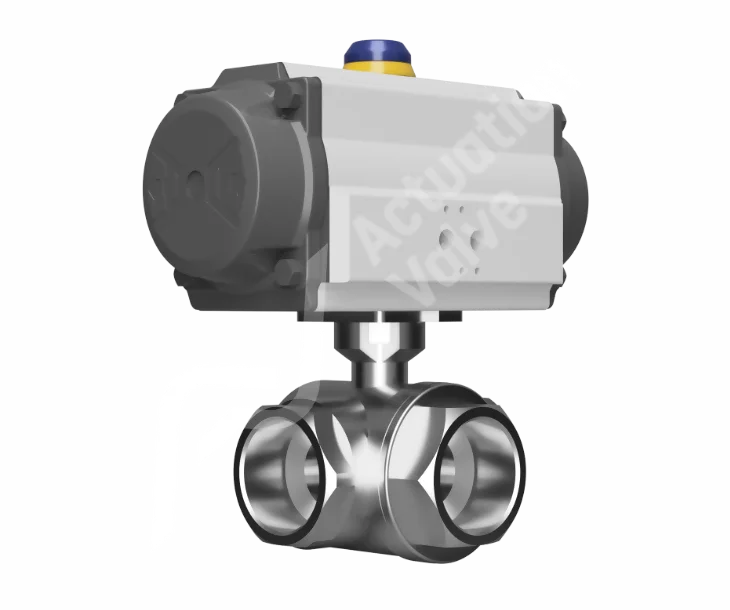

The BV-L5000AT and BV-L5100AT ball valves offer a cost-effective solution for diverting processes. Whether you need a spring return or double-acting pneumatic 3-way ball valve with gradual or rapid opening and closing capabilities, our actuated valves can provide an easy-fit solution for threaded pipelines. The ISO 5211 mounting pad allows valve actuation without the need for a mounting bracket, enabling immediate assembly and testing after placing your order. We supply all actuated valve assemblies with operation and maintenance manuals. Air Torque's pneumatic actuators are highly versatile and simple to install. Their lightweight design eliminates the need for heavy-duty mounting points, allowing you to install them anywhere on your production line without disrupting product flow or incurring unnecessary costs.
Shop Help Me

Key Features

Key features and benefits of BV-L5000AT & BV-L5100AT Actuated Ball Valves.
1

Key Features

Available with screwed connections in both NPT and BSP, this versatile and cost-effective valve is equipped with a WRAS (Water Regulations Approval Scheme) Certified TFM 1600 PTFE Seat, which is also FDA approved. The 3-Way diverter valve includes a direct mount actuation pad for swift and straightforward automation.
2

Key Features

You have various options for indicators with the Air Torque actuator. These include the availability of direct mounting PUK sensors like P&F, IFM, and other manufacturers, depending on end-user approved vendor lists (AVLs). Additionally, mechanical limit switch boxes are readily available from stock for rapid assembly.
3

Key Features

Air Torque can provide Certificates of Conformity along with your actuator or actuated valve package. Additionally, each individual actuator undergoes factory testing and inspection before being packed and dispatched to us in the UK from their Italian factory.

RB 3-Way Ball Valve Technical Data

B C D B C D E
SR SR DA DA DA DA SR/DA
1/4" 72.00 132.00 137.00 72.00 132.00 137.00 79.00
3/8" 72.00 132.00 137.00 72.00 132.00 137.00 79.00
1/2" 72.00 132.00 137.00 72.00 132.00 137.00 79.00
3/4" 84.50 154.00 153.50 72.00 138.00 137.00 88.00
1" 93.00 181.50 203.50 72.00 148.50 137.00 108.00
1 1/4" 93.00 185.00 203.50 84.50 168.00 153.50 124.00
1 1/2" 106.00 208.50 241.00 84.50 178.50 153.50 135.00
2" 118.50 229.80 259.00 93.00 204.80 203.50 164.00
2 1/2" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA TBA TBA

RB 3-Way Ball Valve 3D Models

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

SMALL Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

AT101
  • PDF
DRAWINGS & SCHEMATICS

AT201
  • PDF
DRAWINGS & SCHEMATICS

AT251
  • PDF
DRAWINGS & SCHEMATICS

AT301
  • PDF
DRAWINGS & SCHEMATICS

AT351
  • PDF
DRAWINGS & SCHEMATICS

AT401

BIG Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

AT451
  • Document
DRAWINGS & SCHEMATICS

AT501
  • Document
DRAWINGS & SCHEMATICS

AT551
  • PDF
DRAWINGS & SCHEMATICS

AT601
  • PDF
DRAWINGS & SCHEMATICS

AT651
  • PDF
DRAWINGS & SCHEMATICS

AT701

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Specifications
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
O-Rings Material: PTFE
Ball Material: MSS SP-110
Approvals: ASME B16.34 Class 400
Mounting: MSS SP-110
End Connections: BSPP IS0 228/1

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

4-20mA Control Available On This Product

The BLX V100E Series serves as an Electro-Pneumatic control device enabling the Actuator to gradually modify the Valve's positioning between fully open and fully closed states. There are variations of this product designed for both spring return and double-acting configurations, complete with feedback and safety features. Feel free to reach out to our team today to learn how the V100E can address your specific process needs.
