Electric Koei Carbon Steel PN40 Actuated Ball Valves

The BV-L6N00 range of carbon steel ball valves has been tailored with your requirements in mind. These valves are not only simple to fit but also boast exceptional longevity, ensuring that you can rely on your purchase without the concern of frequent maintenance or replacement. Koei Actuators, a reputable company since the early 2000s, has been producing Electric Actuators in Japan, swiftly becoming a leading name in electric actuator sales. For your convenience, we offer expedited shipping, promising delivery of in-stock items within 24-48 hours. The Koei UNIC Electric Actuator is outfitted with handy features such as an Allen Key Manual Override, a system to protect against overloads, and an automatic stop feature for end-of-travel. In addition, it includes a mechanical limit/mechanical switch that provides indications of the open and close status on your control panel.

Key Features

Key features and benefits of the BV-L6NC0-EK Actuated Ball Valves.
1

Key Features

The BV-L6NC0EK DIN PN40 actuated ball valves are designed for high-pressure, full-flow operations, accommodating a bore size of up to 8 inches.
2

Key Features

Koei UNIC electric actuators are distinguished by their compact and lightweight design, allowing for effortless installation in various locations without compromising on performance or durability. These streamlined units encompass all the advantageous features found in our standard models, minus the bulkiness.
3

Key Features

Since the early 2000s, Koei Actuators has been manufacturing Electric Actuators at their plant in Japan, rapidly becoming one of the leading names in electric actuator sales.

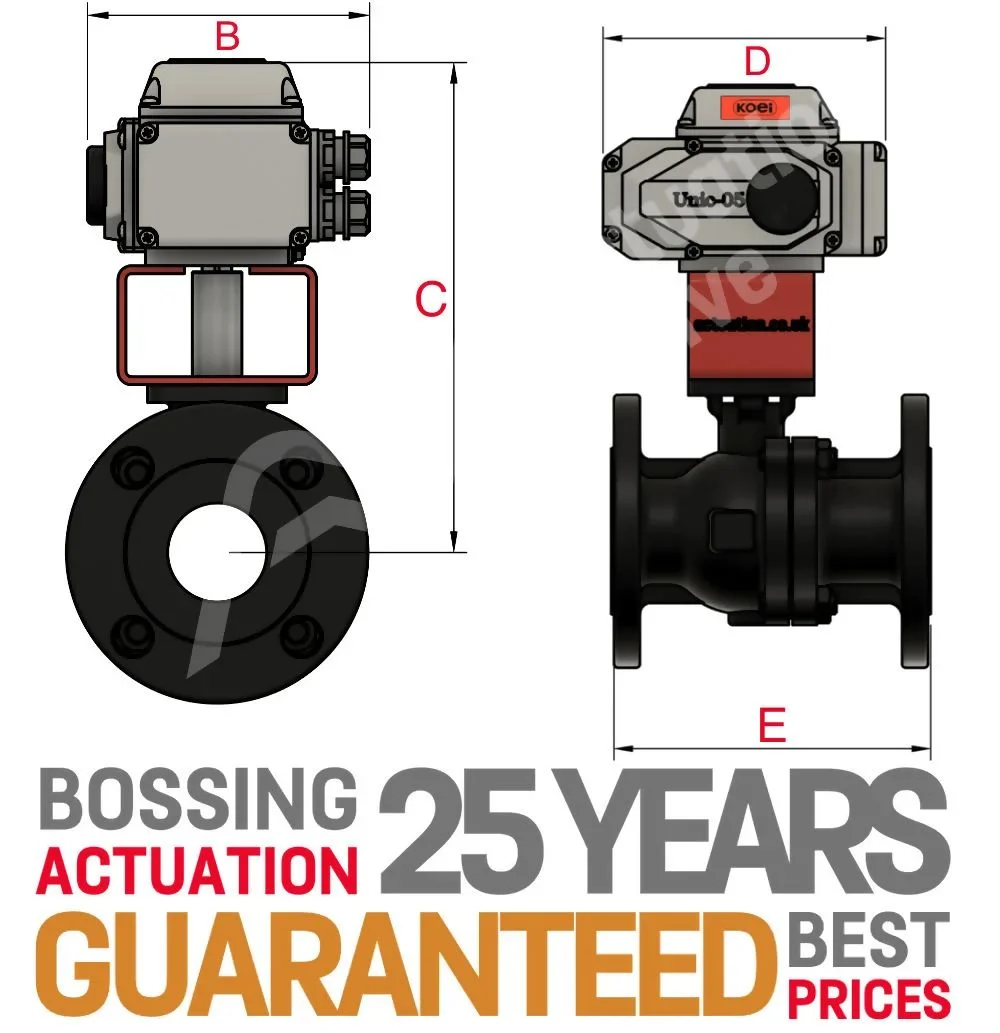

BV-L6NC0-EK Ball Valve Technical Data

B C D B C D E
SR SR SR DA DA DA SR/DA
1/4" TBA TBA TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA TBA TBA
1/2" 72.00 120.00 137.00 72.00 120.00 137.00 59.00
3/4" 72.00 126.00 137.00 72.00 126.00 137.00 69.00
1" 72.00 130.00 137.00 72.00 130.00 137.00 83.00
1 1/4" 93.00 168.50 203.50 72.00 135.50 137.00 94.00
1 1/2" 93.00 180.00 203.50 84.50 163.00 153.50 102.00
2" 106.00 200.50 153.50 84.50 170.50 153.50 124.00
2 1/2" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA

AV-L6NC0-EK Ball Valve 3D Models

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Specifications

Body Material: ASTM A216 WCB Carbon Steel construction, 304 Trim.
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Body Seal
Stem Packing Material: Grafoil
Design Standard: EN 12516-1
Wall Thickness: EN 12516-1
Inspection & Testing: EN 12266-1
Face 2 Face: DIN 3202 F-4 (1/2" - 4") DIN 3202 F-5 (5" - 6")

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.
