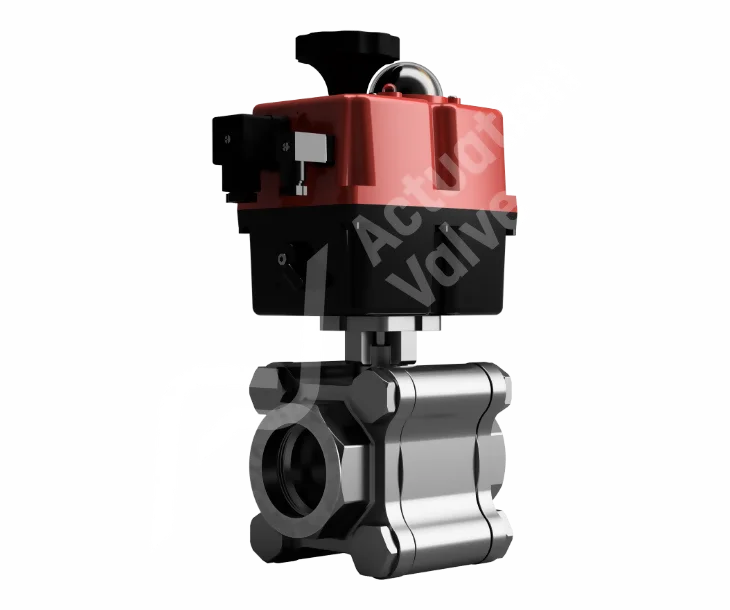

J4CS J&J Electric Actuator Carbon Steel Ball Valves

The J&J Electric Actuators utilise patented technology to help you conserve energy and reduce expensive downtime. They deliver outstanding performance across a broad range of applications, including dampers and valves. The BV-L8000FC Heavy Duty Carbon Steel Ball Valve is specifically engineered for heavy-duty industrial use, where higher pressure or temperature requirements may arise. This ball valve includes PTFE TFM 4215 ball seats with grafoil stem sealing and a carbon steel body. The J&J J4CS electric valve actuators are built for a 75% duty rating and have earned a reputation for reliability among numerous customers worldwide. Additionally, the actuator comes with a 3-year, 60,000-cycle warranty as a result of continuous research and development efforts.
Shop Help Me

Key Features

Key features and benefits of BV-L8000FCJJ & BV-L8200FCJJ Actuated Ball Valves.
1

Key Features

The BV-L8000FC represents a cost-effective range of top-quality carbon steel heavy-duty ball valves that won't strain your budget. These robust products will provide you with years of trouble-free service, all at a fraction of the cost charged by other companies for similar offerings.
2

Key Features

The BV-L8000FC full bore ball valves are an excellent choice for use in environments that aren't suitable for standard brass ball valves. The body is made from high quality A216 WCB carbon steel and stainless steel ball that can withstand demanding applications.
3

Key Features

The J4S product line includes a budget-friendly electric actuator that interfaces with any iOS or Android device, eliminating the necessity for extra hardware or software. This simplifies the process of connecting your application directly to your smartphone, tablet, or computer.

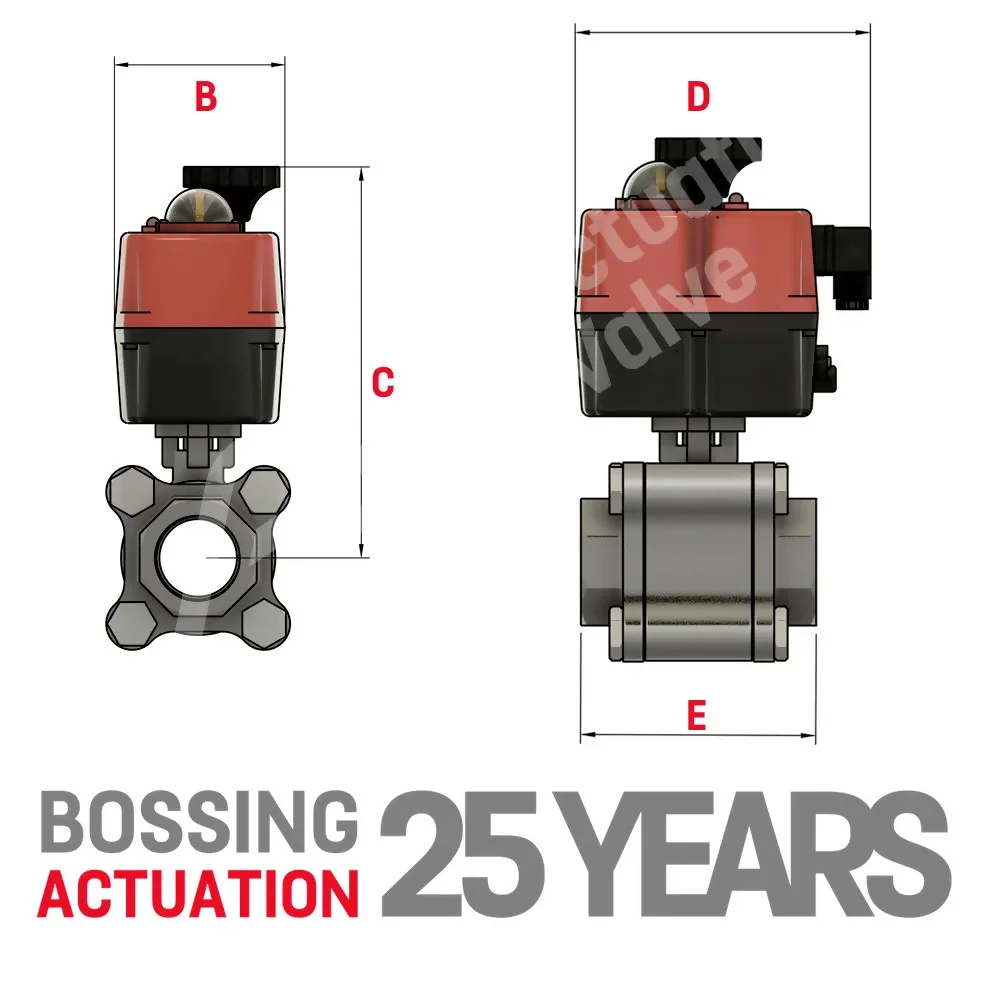

Screwed/Socket Weld Technical Data

B C D E Model
1/4" TBA TBA TBA 75.00 TBA
3/8" TBA TBA TBA 75.00 TBA
1/2" 110.00 171.00 179.00 75.00 J4CS20
3/4" 110.00 171.00 179.00 90.00 J4CS20
1" 110.00 171.00 179.00 100.00 J4CS20
1 1/4" 110.00 171.00 179.00 110.00 J4CS20
1 1/2" 110.00 171.00 179.00 125.00 J4CS35
2" 110.00 196.00 181.00 150.00 J4CS55
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA

Screwed/Socket Weld Valve 3D Models

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Specifications
Body Material: ASTM A216 WCB Carbon Steel & 304 SS Trim
Seats Material: TFM 4215® (25% Carbon Filled TFM)
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 228/1
Socket Weld Ends: ASME B16.11
Silicone Free: Suitable For Oil Based Paints
Anti Static Device: Ball, Shaft & Valve Body

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.

Actuator Tech
