The BV4500EL, a two-piece full bore brass ball valve, provides a space-efficient and economical actuated valve option for screwed and threaded pipelines. It has WRAS approval, making it suitable for use with potable drinking water. The ISO 5211 mounting pad enables valve actuation without requiring a mounting bracket, allowing for immediate processing of assembly and testing procedures upon placing your order. Express shipping is available for the delivery of stock components within 24-48 hours. WRAS approval certificates are included with all assemblies at no additional cost.

Shop Help Me

Key features and benefits of BV-L2000EL Actuated Ball Valves.

Key Features

The AV-L2000 Ball Valve proves to be an excellent option for pneumatic systems with high volume requirements due to its low torque demands. This feature contributes to cost savings, as smaller actuators can efficiently automate valves that typically require larger units.

Key Features

For those seeking a cost-effective alternative to pricey electric actuators, the EL-O-Matic Pneumatic Actuator presents itself as a viable solution. It delivers comparable functionality at a fraction of the cost and operates significantly faster than electric units of similar dimensions.

Key Features

The actuator's adherence to the NAMUR interface standard allows for seamless integration with a diverse range of accessories. This facilitates the easy incorporation of the EL-O-Matic Pneumatic Actuator into existing systems, especially when compatible components are already available for on-site attachment.

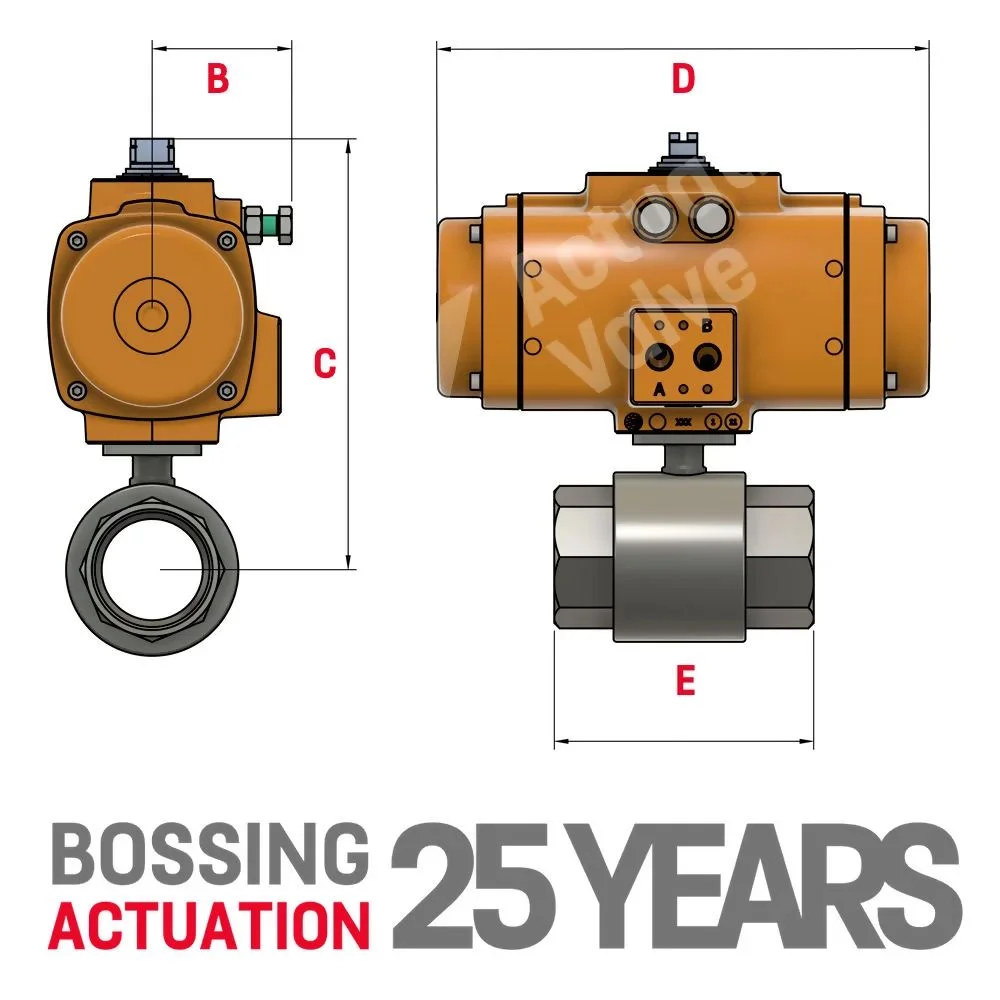

	B	C	D	E	B	C	D	E
	SR	SR	SR	SR	DA	DA	DA	DA
1/4"	48.00	153.50	166.00	67.00	33.00	122.50	103.00	67.00
3/8"	48.00	153.50	166.00	67.00	33.00	122.50	103.00	67.00
1/2"	48.00	153.50	166.00	67.00	33.00	122.50	103.00	67.00
3/4"	48.00	160.00	166.00	70.40	48.00	160.00	166.00	70.40
1"	58.00	190.00	192.00	85.00	48.00	169.00	166.00	85.00
1 1/4"	58.00	194.50	192.00	94.00	48.00	173.50	166.00	94.00
1 1/2"	58.00	215.50	217.00	105.00	58.00	203.50	192.00	105.00
2"	69.00	229.50	247.00	125.00	69.00	222.50	217.00	125.00
2 1/2"	75.00	277.00	304.00	155.00	69.00	251.00	247.00	155.00
3"	87.00	292.00	362.00	173.00	75.00	286.00	235.00	173.00

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

ZIP
Size 0100

DRAWINGS & SCHEMATICS

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	Grafoil/316 Stainless Steel
Stem Packing Material:	Grafoil
Design Standard:	ASME B16.34
Wall Thickness:	ASME B16.34
Inspection & Testing:	API 598
Face 2 Face:	ASME B16.10
Pressure Rating:	1000 PSI

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.

Potentially. Contact us so we can discuss potential options.

No unfortunately. We do not offer that level of customisation.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

CERTIFICATES & APPROVALS

Document

CERTIFICATES & APPROVALS

Brochures

CERTIFICATES & APPROVALS

Elomatic Actuator Videos

Elomatic Overview

DRAWINGS & SCHEMATICS

The TopWorx Elomatic Valve Limit Switch Box is accessible for this item. Maintain exclusivity within the Emerson Group of products featuring a globally leading Valve Position Monitor. Options include Safe Area, Explosion Proof, and Intrinsically Safe variants, all readily available in stock, with installation and calibration services provided for your Elomatic Actuator before shipment.

Please feel free to request information and advice using the form below or call us on 0151 547 1221
