Stainless Steel DIN PN16 Hytork Actuated Ball Valves

Subtotal	£0.00

The BV-L6K00XL valves, with PN16 flanged connections, provide a straightforward quarter-turn actuation solution tailored to low to medium pressure needs (up to a maximum of 16 bar) in DIN flange setups. A variety of pneumatic actuator sizes, available in S00 or DAG models, allow for configurations such as fail-in-position, return to the preset position, and open or closed fail-safe modes. Both spring return and double-acting actuation options are available, accompanied by a selection of feedback choices for remote position monitoring. For even more precise control, 4-20mA electric or electro-pneumatic positioners can be integrated into the system.

Shop Help Me

Key features and benefits of BV-L6K00XL Actuated Ball Valves.

Key Features

The BV-L6K00 Actuated Ball Valves represent an excellent choice for operating in harsh or corrosive environments where standard valves fall short. Constructed with a CF8M body and a disc crafted from high-quality stainless steel, these valves exhibit remarkable durability even in the most challenging conditions.

Key Features

They are particularly well-suited for applications necessitating frequent On/Off cycles, such as material handling equipment (MHE), thanks to their impressive cycle life expectancy. Hytork actuators boast a SIL rating, having proven their reliability across several million cycles.

Key Features

By incorporating NAMUR mounting (VDE/VDI 3845), you can standardize the mounting hardware for a wide array of accessories. This eliminates the need to purchase specific mounting kits or adapters, which can both increase costs and prolong installation times.

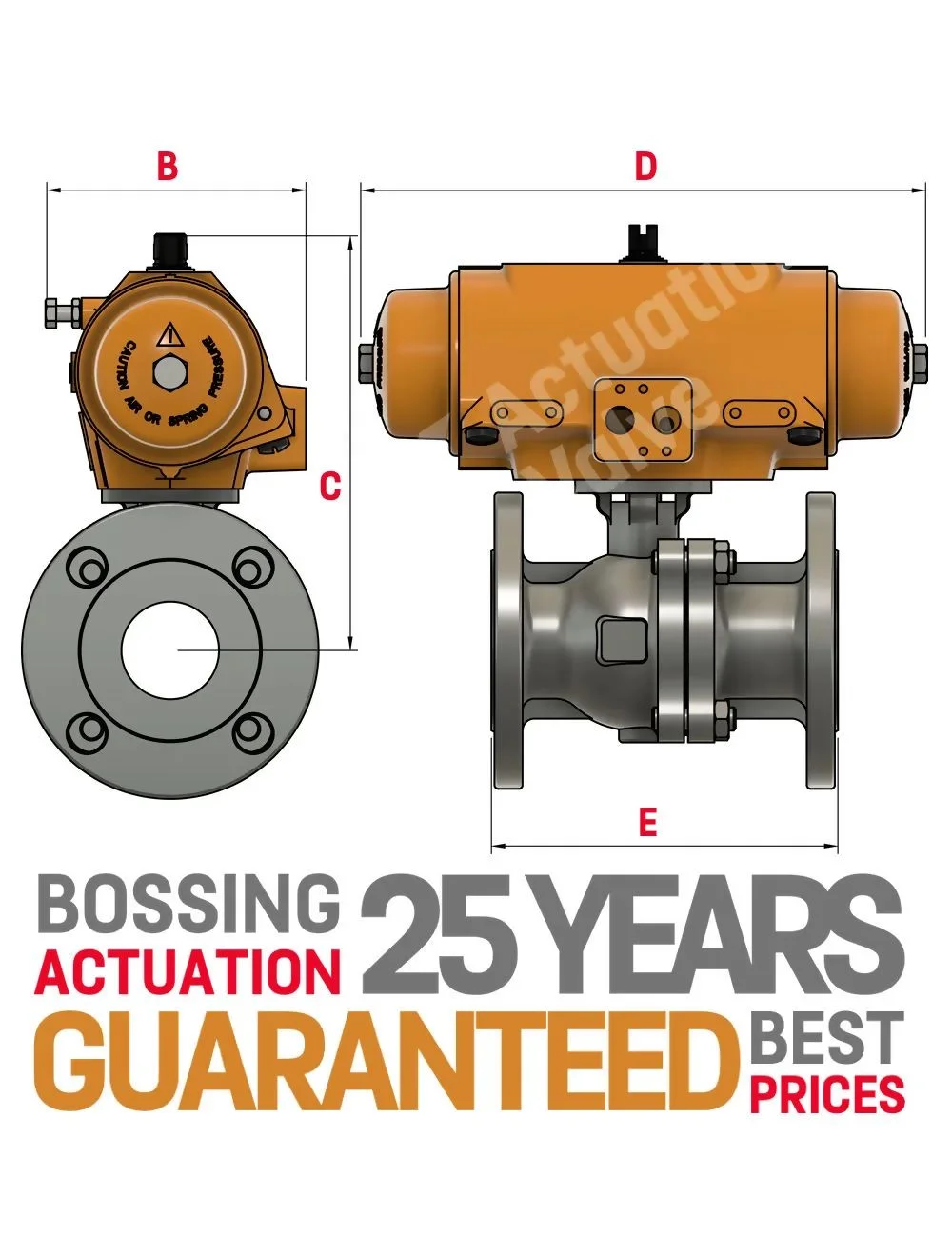

	B	C	D	E	B	C	D	E
	SR	SR	SR	SR	DA	DA	DA	DA
1/2"	97.00	152.50	165.00	115.00	97.00	152.50	165.00	115.00
3/4"	97.00	157.50	165.00	120.00	97.00	157.50	165.00	120.00
1"	116.50	181.40	221.80	125.00	97.00	163.50	165.00	125.00
1 1/4"	116.50	193.40	221.80	130.00	116.50	193.40	221.80	130.00
1 1/2"	116.50	198.40	221.80	140.00	116.50	198.40	221.80	140.00
2"	133.50	223.40	292.00	150.00	116.50	207.40	221.80	150.00
2 1/2"	143.10	246.05	331.60	170.00	133.50	240.40	292.00	170.00
3"	158.50	271.09	349.80	180.00	143.10	256.05	331.60	180.00
4"	174.00	309.00	462.00	190.00	158.50	299.90	349.80	190.00
5"	174.00	352.00	462.00	325.00	158.50	342.90	349.80	325.00
6"	240.00	438.00	647.00	350.00	190.00	408.00	324.00	350.00
8"	246.00	502.00	696.00	400.00	240.00	487.00	396.00	400.00

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

Document

DRAWINGS & SCHEMATICS

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	Grafoil/316 Stainless Steel
Stem Packing Material:	Grafoil
Design Rating:	DIN3357 1,2, EN 12516-1
Wall Thickness:	ASME B16.34, EN12516-1
Inspection & Testing:	DIN 3202 F4 (2 1/2" - 4") & DIN 3202 F5 (5" - 8")
Face 2 Face:

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

CERTIFICATES & APPROVALS

Document

CERTIFICATES & APPROVALS

Hytork Actuator Videos

Hytork Overview

The TopWorx Elomatic Valve Limit Switch Box is accessible for this item. Maintain exclusivity within the Emerson Group of products featuring a globally leading Valve Position Monitor. Options include Safe Area, Explosion Proof, and Intrinsically Safe variants, all readily available in stock, with installation and calibration services provided for your Elomatic Actuator before shipment.
