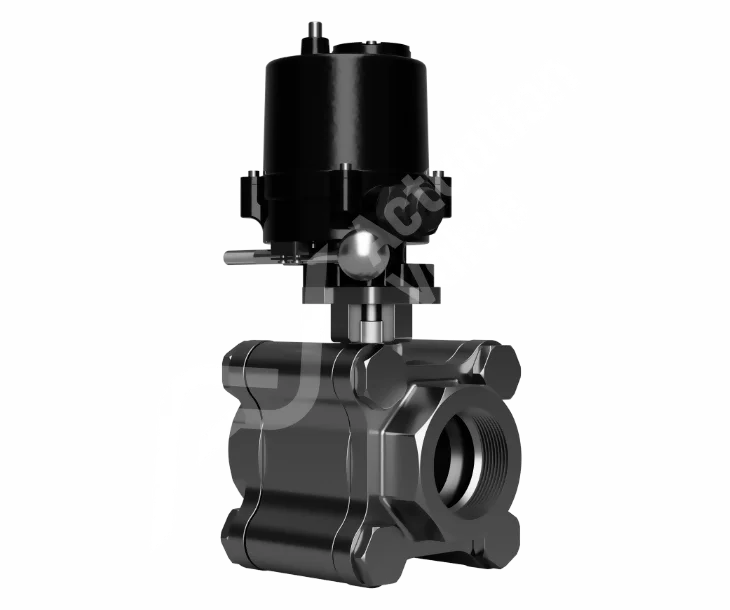

Heavy Duty Stainless Steel AV-ARES Actuated Ball Valves

The AV-ARES Electric Actuator is ideal for situations where space is limited or restrictive. Thanks to its innovative design and small size, it stands out as one of the most adaptable valve automation products available today. The BV-A8000FS, heavy-duty stainless steel ball valves, are an excellent choice for applications demanding extreme durability and full bore flow. These valves can withstand harsh conditions, such as those encountered in chemical plants, offering pressure ratings of up to 2000PSI. Additionally, AV-ARES Electric Actuators provide an optional digital positioner, enabling precise valve control with torque capabilities of up to 40NM. They accept instrumentation signals in the form of 4-20mA and 0-10VDC for intelligent control.
Shop Help Me

Key Features

Key features and benefits of BV-A8000AR, BV-A8100AR & BV-A8200AR Actuated Ball Valves.
1

Key Features

Our team boasts extensive experience in dealing with intricate automation systems. This expertise enables us to deliver high-quality products efficiently and cost-effectively. Just inform us about your requirements, and we'll handle the rest.
2

Key Features

Reliable operation is ensured through the use of components that meet stringent quality standards, resulting in a life expectancy of 50,000 operations for the AV-ARES electrically actuated valves.
3

Key Features

AV-ARES electric actuators provide substantial torque with minimal noise, all at a budget-friendly cost. Our noise-reduction technology enables you to operate the actuators at maximum capacity while ensuring operator comfort during long periods of use.

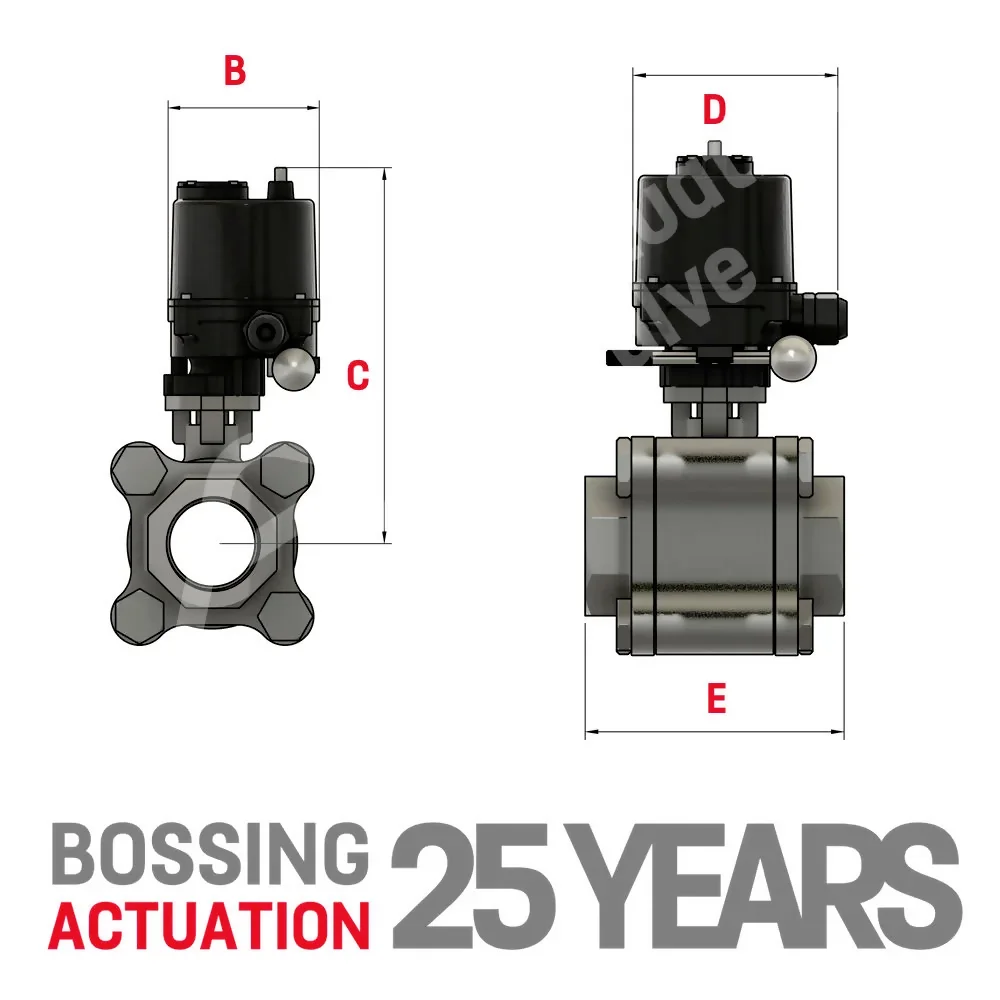

Screwed/Socket Weld Technical Data

B C D E Model
1/4" 88.00 176.00 115.00 75.00 AV-A1
3/8" 88.00 176.00 115.00 75.00 AV-A1
1/2" 88.00 176.00 115.00 75.00 AV-A1
3/4" 88.00 184.00 115.00 80.00 AV-A1
1" 88.00 191.00 115.00 90.00 AV-A1
1 1/4" 88.00 261.00 115.00 110.00 AV-A1
1 1/2" 88.00 273.00 115.00 120.00 AV-A1
2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA

Screwed/Socket Weld Valve 3D Models

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Butt Weld Valve 3D Models

Butt Weld Valve Technical Data

B C D E Model
1/4" 88.00 176.00 115.00 75.00 AV-A1
3/8" 88.00 176.00 115.00 75.00 AV-A1
1/2" 88.00 176.00 115.00 75.00 AV-A1
3/4" 88.00 184.00 115.00 80.00 AV-A1
1" 88.00 191.00 115.00 90.00 AV-A1
1 1/4" 88.00 261.00 115.00 110.00 AV-A1
1 1/2" 88.00 273.00 115.00 120.00 AV-A1
2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBATBA

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Specifications
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 4215® (25% Carbon Filled TFM)
Shaft Material: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing: MSS SP-110
BSP Ends: ISO 7-1 (DIN 2999)
NPT Ends: ASME B1.20.1
Socket Weld Ends: ASME B16.11
Butt Weld Ends: ASME B16.25 (Sch 80)

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
