3-Way BSPP Reduced Bore Actreg Actuator Valves

This multipart diverter valve package is an excellent choice for those dealing with moderately aggressive water conditions and tough outdoor environments. It has been crafted using top-quality materials by the manufacturer Kingdom Controls. You have the option to install it in both across-line configurations. The Actreg actuator's design allows for either setup, depending on the application's space-saving requirements. For applications such as hopper line actuation and bagging lines, the typical installation is in line. We also provide a stock range of couplings and brackets to match the Actreg actuators and any valves that need these linkages. This feature enables BallValve to offer quick lead times and fast turnaround for all actuated valve packages that involve the Actreg unit.

Key Features

Key features and benefits of BV-L5000AC & BV-L5100AC Actuated Ball Valves.
1

Key Features

In industrial process systems, three-way ball valves have the capability to shift the flow from one fluid pathway to another. These valves are commonly employed in the process industry to establish, break, or change the direction of flow between two or more fluid pathways.
2

Key Features

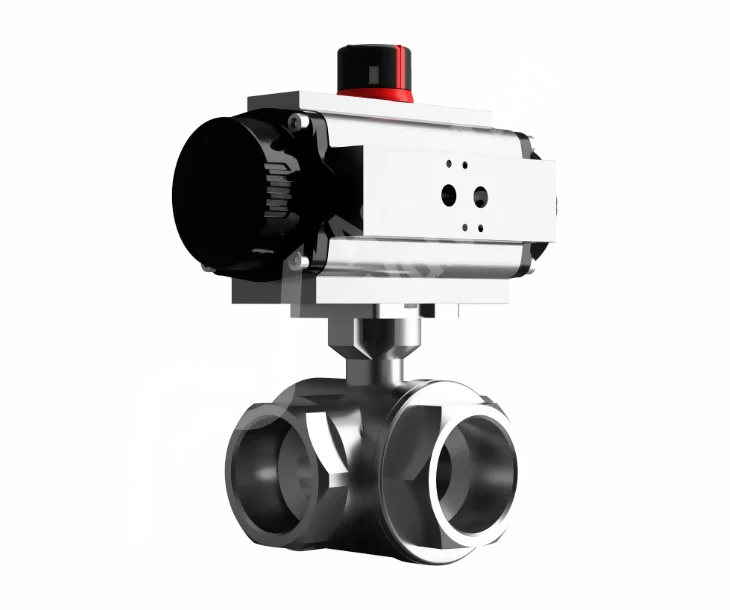

The BV-L5000 & 5100 3-Way Ball Valve is suited to Screwed connections and the stainless steel body houses either an L or T drilled ball configuration. The L port valve is drilled at 90 degrees from two different sides to resemble an L whereas the T also features one hole straight through.
3

Key Features

Actreg's Actuator is built for long-lasting, reliable performance with a wide variety of materials and options that allow you to specify alternate coatings that are best suited for your application requirements. The pneumatic actuators combine quality parts designed over many years by in field experts. All available at a competitive price point.

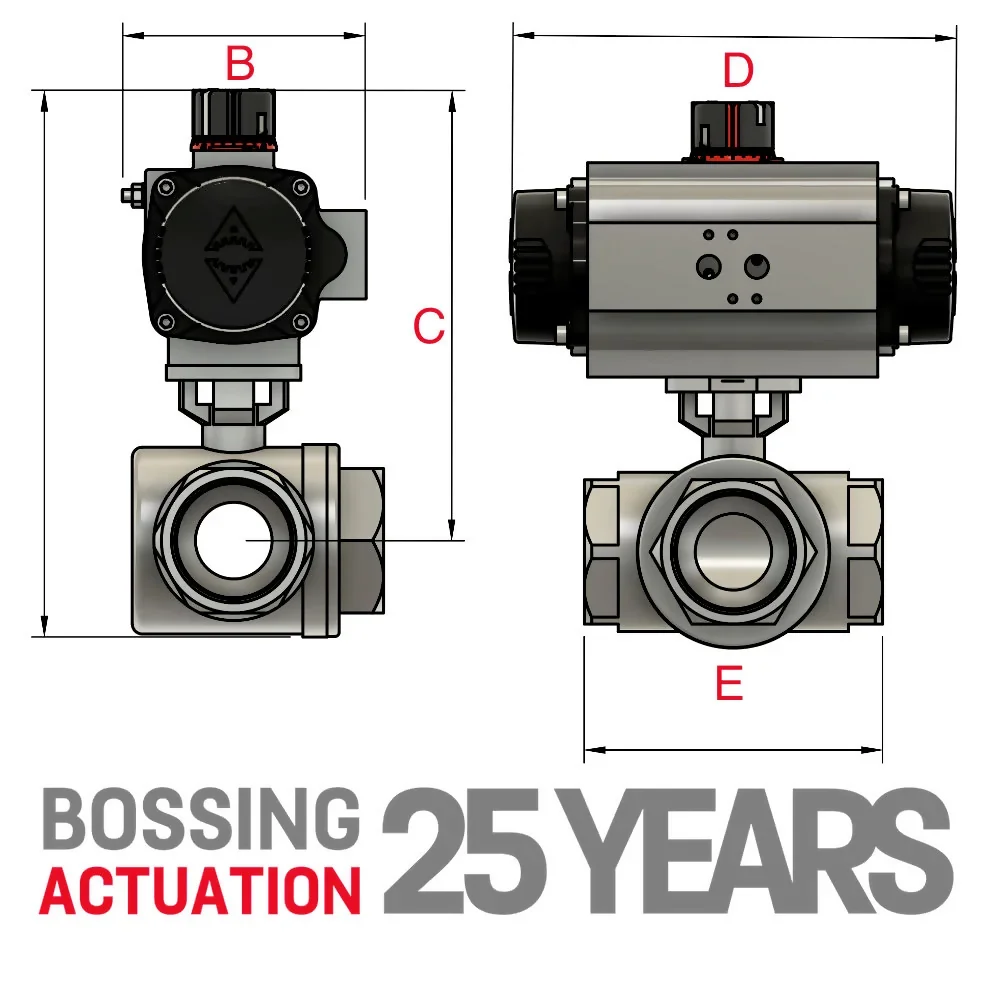

RB 3-Way Ball Valve Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 81.00 139.00 163.00 79.00 81.00 139.00 145.00 79.00
3/8" 81.00 139.00 163.00 79.00 81.00 139.00 145.00 79.00
1/2" 81.00 139.00 163.00 79.00 81.00 139.00 145.00 79.00
3/4" 81.00 145.00 163.00 88.00 81.00 145.00 145.00 88.00
1" 96.00 174.50 195.00 108.00 96.00 174.50 158.00 108.00
1 1/4" 96.00 178.00 195.00 124.00 96.00 178.00 158.00 124.00
1 1/2" 116.00 210.50 217.00 135.00 116.00 210.50 177.00 135.00
2" 116.00 219.80 217.00 164.00 116.00 219.80 177.00 164.00

RB 3-Way Ball Valve 3D Stuff

Actreg Actuator Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 400
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 228/1

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

4-20mA Control Available On This Product

The BLX V100E Series serves as an Electro-Pneumatic control device enabling the Actuator to gradually modify the Valve's positioning between fully open and fully closed states. There are variations of this product designed for both spring return and double-acting configurations, complete with feedback and safety features. Feel free to reach out to our team today to learn how the V100E can address your specific process needs.

3-Way Valve Configuration

Multiple valve configurations are accessible to match your specific application needs. You can either request a configurator or contact us directly, and our experts in 3-Way valves will guide you through the available options.
