V-Tork Solenoid Operated 3-Way Reduced Bore BSP Ball Valve with Switchbox

Product Description

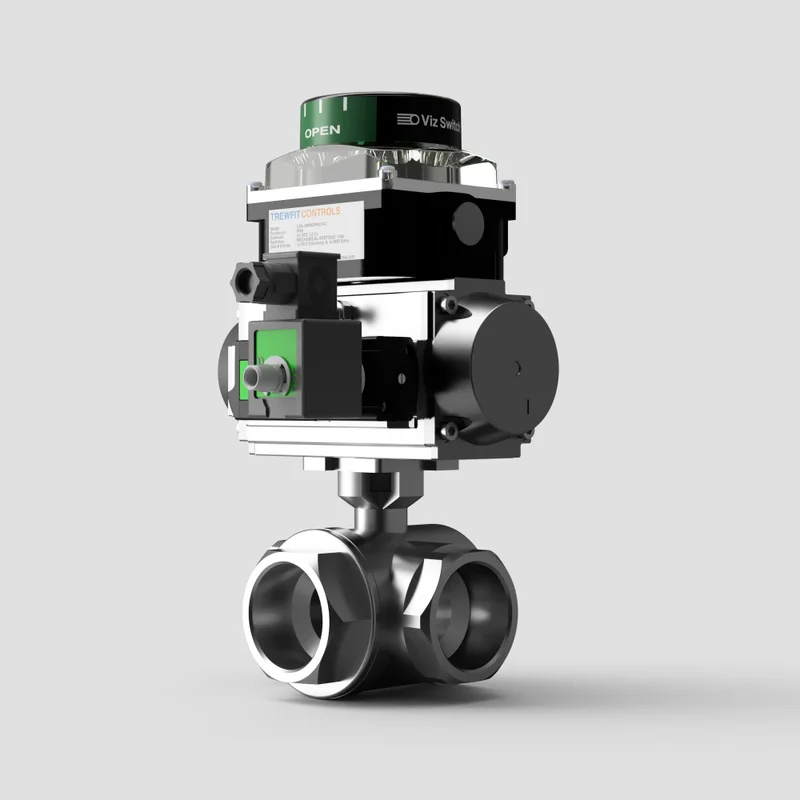

The V-Tork Solenoid Operated 3-Way Reduced Bore BSP Ball Valve with Switchbox combines a stainless steel 3-way ball valve with a V-Tork pneumatic actuator, solenoid valve and switchbox for automated flow control with valve position feedback.

Featuring threaded BSP connections, the reduced bore valve is available in L-Port and T-Port configurations, making it suitable for diverting or mixing flow across industrial and process pipework systems.

The pneumatic actuator provides quarter-turn operation, while the solenoid valve allows electrical control of the actuator air supply. The fitted switchbox provides open and closed position indication for remote monitoring of the valve status.

Key Features:

• V-Tork pneumatic actuator

• Stainless steel 3-way ball valve

• Reduced bore design

• Threaded BSP connections

• L-Port and T-Port configurations available

• Solenoid operated

• Switchbox for valve position feedback

• Open and closed position indication

• Automated quarter-turn operation

• Suitable for diverting and mixing applications

• Suitable for compatible liquids and gases

• Suitable for industrial and process pipework
