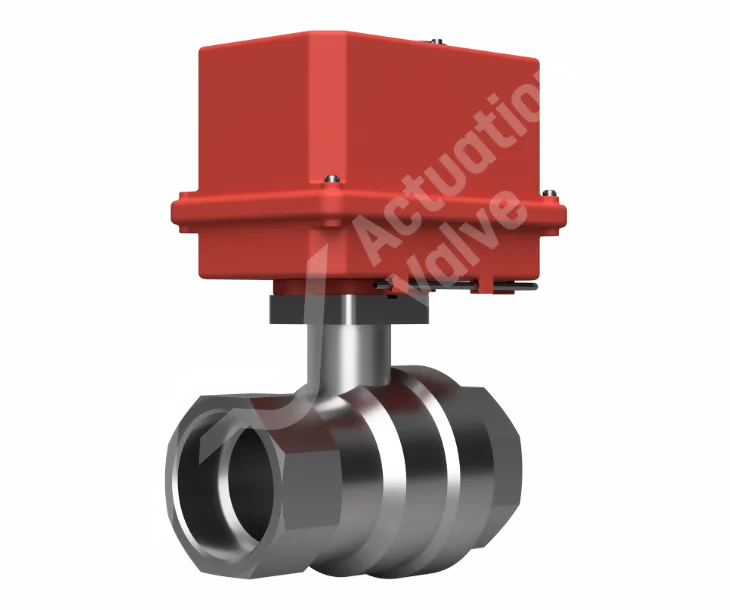

2 Port Motorised Valves - Electric AV-Lite Actuated Ball Valves

This 2-port motorised full bore stainless steel ball valve features a compact body design, which occupies less space in the pipeline. This design not only saves you time during installation but also reduces the overall weight and cost of the actuated valve package when compared to 3-piece ball valves. The valve package is available with both screwed connections (NPT & BSP) and performs exceptionally well in applications where precise flow control is essential. Moreover, these valves fully adhere to safety standards, ensuring a secure workplace environment without straining your budget. If you're in search of an alternative solution, consider our BV-L2000 Series Actuated Ball Valves. These 2-port motorised valves not only provide improved sealing capabilities but also contribute to cost savings due to their low torque requirements.
Shop Help Me

Key Features

Key features and benefits of BV-L2000AV Actuated Ball Valves.
1

Key Features

The BV-L2000 Ball Valve, a top-tier product in the industry, has been meticulously tailored for use in small to medium-sized control systems with reduced torque requirements. This design feature can lead to cost savings and enhanced performance by enabling smooth valve operation.
2

Key Features

The BV-L2000 2-port motorised valve is purpose-built for high-demand applications where space constraints or weight reduction are critical factors. This compact unit diminishes the overall package size when compared to three-piece designs, resulting in a lighter-weight actuated valve.
3

Key Features

All our Actuated Valve Assemblies are crafted in-house with the support of automation specialists. Each finished unit is prepared to meet rigorous standards and can be traced through a two-page test report detailing opening and closing times.

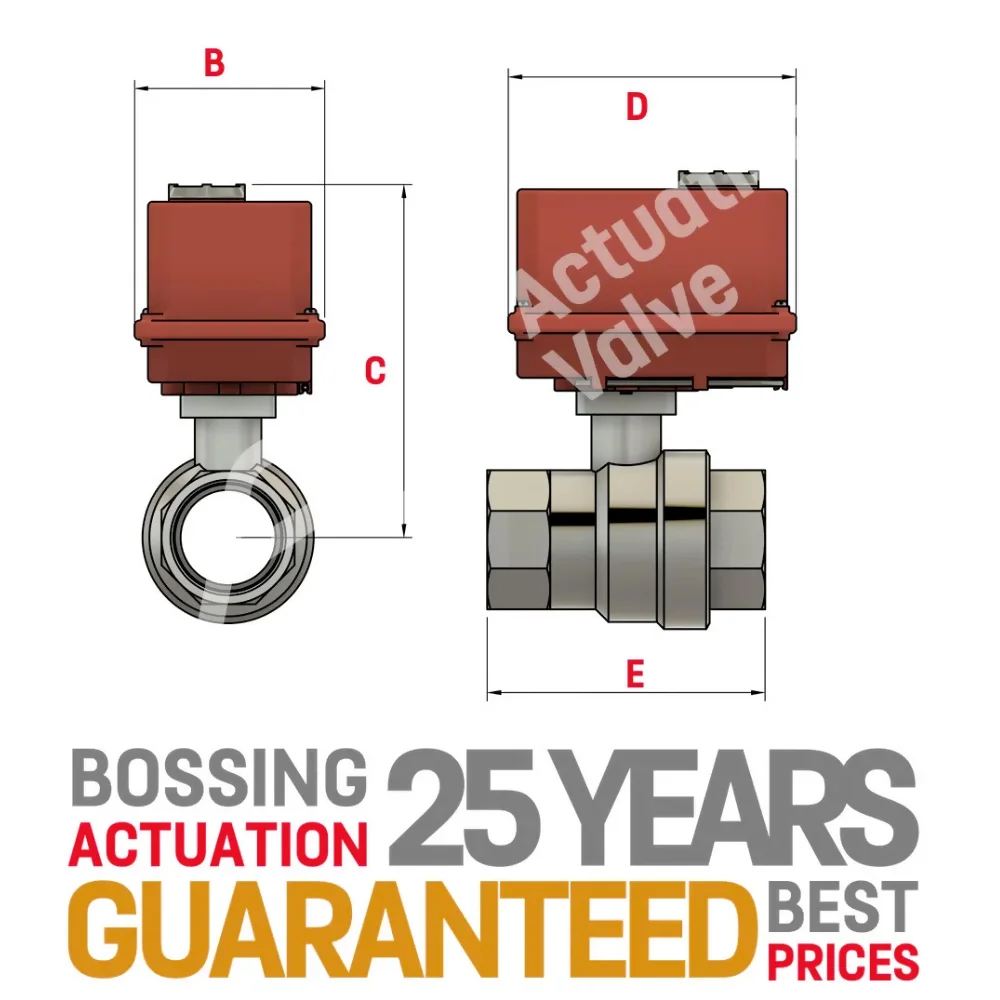

BV-L2000AV Ball Valve Technical Data

B C D E Model
1/4" TBA TBA TBA TBA TBA
3/8" 100.00 153.00 145.00 67.00 AV-02
1/2" 100.00 153.00 145.00 67.00 AV-02
3/4" 100.00 159.50 145.00 70.40 AV-02
1" 100.00 168.50 145.00 85.00 AV-02
1 1/4" 100.00 173.00 145.00 94.00 AV-02
1 1/2" 121.90 213.00 117.00 105.00 AV-03
2" 121.90 220.00 117.00 125.00 AV-03
2 1/2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA

BV-L2000AV Ball Valve 3D Models

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Specifications
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Shaft Material: Grafoil/316 Stainless Steel
O-Rings Material: Grafoil
Ball Material: ASME B16.34
Approvals: ASME B16.34
Mounting: API 598
End Connections: ASME B16.10
Pressure Rating: 1000 PSI

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

Actreg Actuator Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.
