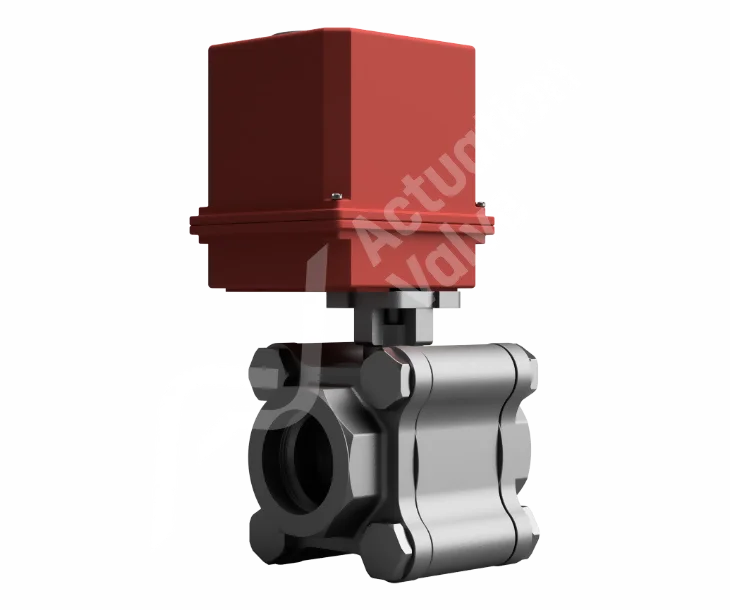

Heavy Duty Carbon Steel AV-Lite Electric Ball Valves

The BV-L8000FCAV is a robust carbon steel ball valve designed for heavy-duty industrial applications that demand higher pressure or temperature resistance. This valve incorporates PTFE TFM 4215 ball seats, grafoil stem sealing, and a carbon steel body. It offers affordability for residential use while ensuring durability for commercial purposes. Crafted from premium materials, this valve boasts a long lifespan with minimal wear, distinguishing it from valves produced by other manufacturers. Notably, its innovative three-piece body design facilitates future-proof preventive maintenance by allowing easy removal of individual sections for seal replacements, eliminating the need to disassemble the entire valve when scheduling maintenance.
Shop Help Me

Key Features

Key features and benefits of BV-L8000FCAV & BV-L8200FCAV Actuated Ball Valves.
1

Key Features

Our team boasts decades of experience handling intricate automation systems, ensuring we can deliver high-quality products promptly and cost-effectively. Just let us know your requirements, and we'll manage all the rest.
2

Key Features

The BV-L8000FC Ball Valve's low torque demands facilitate smooth operation and lower the expenses associated with actuated ball valves. Smaller actuators can now automate valves that typically require larger units, resulting in cost savings.
3

Key Features

These ball valves are offered with screwed connections in both NPT and BSP, making them suitable for various applications requiring flow control. They fully adhere to safety standards, ensuring workplace safety while also being budget-friendly.

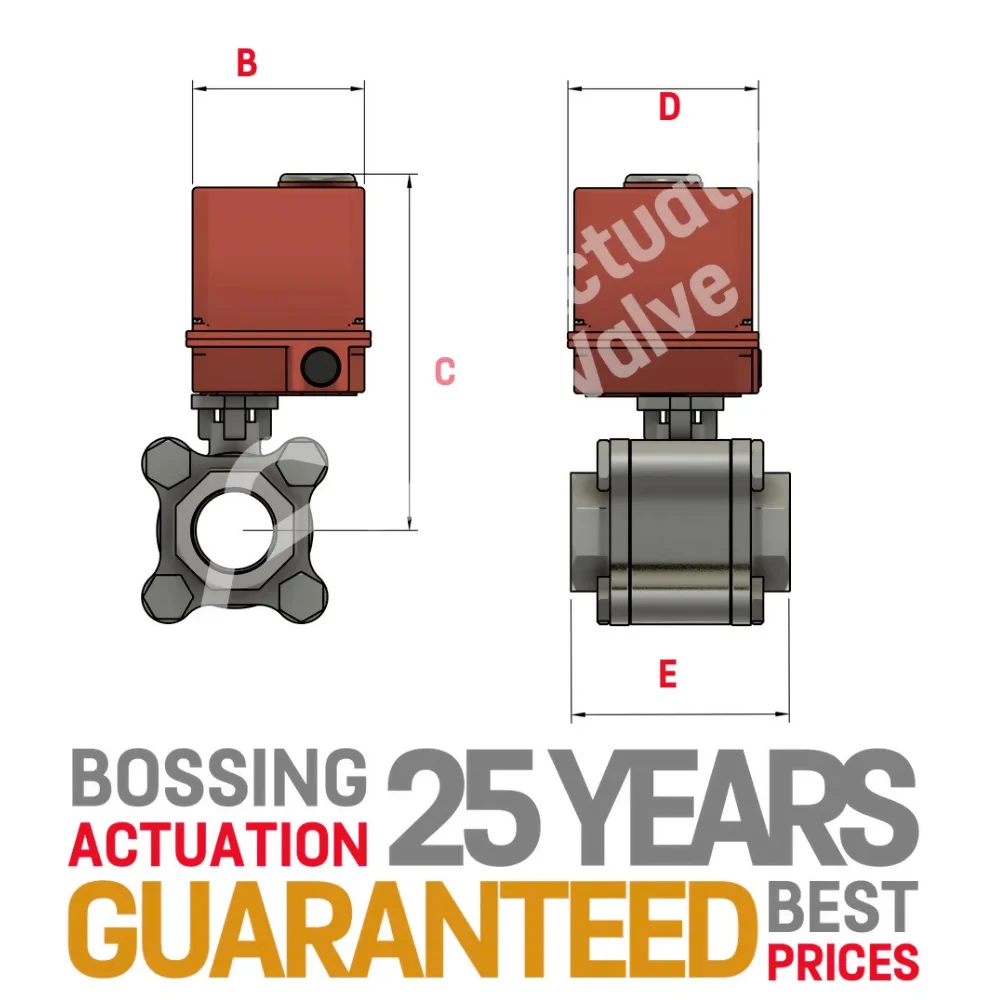

Screwed/Socket Weld Technical Data

B C D E Model
1/4" 100.00 153.50 145.00 75.00 AV-02
3/8" 100.00 153.50 145.00 75.00 AV-02
1/2" 100.00 153.50 145.00 75.00 AV-02
3/4" 100.00 161.50 145.00 80.00 AV-02
1" 100.00 168.50 145.00 90.00 AV-02
1 1/4" 100.00 173.50 145.00 100.00 AV-02
1 1/2" 121.90 216.50 117.00 120.00 AV-03
2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA

Screwed/Socket Weld Valve 3D Models

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Specifications
Body Material: ASTM A216 WCB Carbon Steel & 304 SS Trim
Seats Material: TFM 4215® (25% Carbon Filled TFM)
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 228/1
Socket Weld Ends: ASME B16.11
Silicone Free: Suitable For Oil Based Paints
Anti Static Device: Ball, Shaft & Valve Body

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds
