3 Piece Multi Voltage AV-ARES Electric Actuated Ball Valves

These ball valves are offered with threaded connections in both NPT and BSP, and they perform admirably in situations where a flow control device is necessary. They adhere fully to safety regulations, ensuring workplace safety without straining your budget. The AV-ARES Electric Valve Actuator stands out as one of the most compact electric valve actuators available today. Its ingenious design enables installation in any orientation or position, even in tight spaces. We've simplified valve maintenance by allowing individual parts such as Seats and Seals to be replaced as needed. This approach makes preventive maintenance significantly more cost-effective and convenient compared to traditional ball valves, which require complete disassembly for repairs or replacements.
Shop Help Me

Key Features

Key features and benefits of the BV-A3000AR, BV-A3100AR & BV-A3200AR
1

Key Features

The BV-A3000 Ball Valve has low torque requirements, making its operation smooth and cost-effective. This reduces the expenses associated with Actuated Ball Valves, as smaller actuators can be used to automate valves that typically require larger units.
2

Key Features

Our team possesses many years of experience in dealing with intricate automation systems. This extensive expertise enables us to deliver high-quality products promptly and at a reasonable cost. All you need to do is inform us of your requirements, and we will handle the rest for you.
3

Key Features

AV-ARES range of electric actuators offer high torque with low noise levels at an affordable price point. Our quiet technology allows you to run your actuators at full capacity while also maintaining operator comfort levels during extended periods of operation.

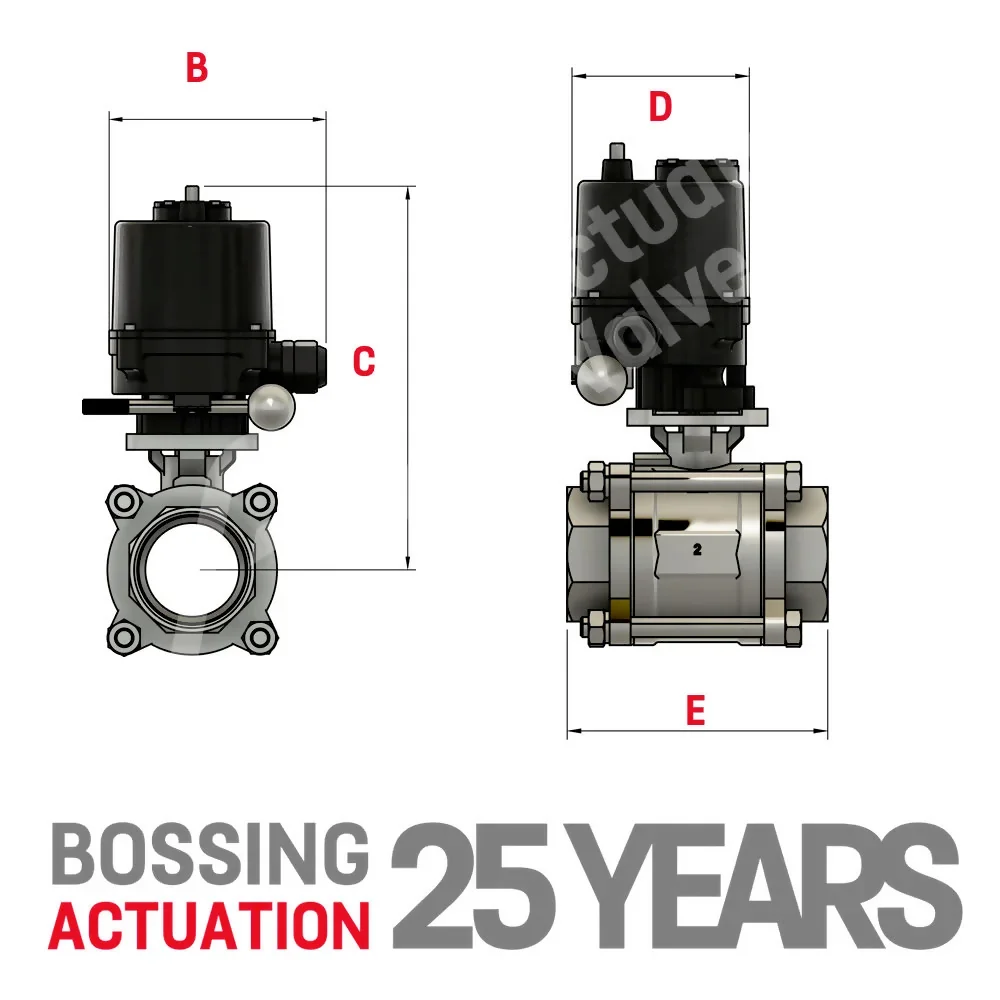

Screwed/Socket Weld Technical Data

B C D E Model
1/4" 115.00 175.50 88.00 75.00 AV-A1
3/8" 115.00 175.50 88.00 75.00 AV-A1
1/2" 115.00 175.50 88.00 75.00 AV-A1
3/4" 115.00 181.50 88.00 80.00 AV-A1
1" 115.00 191.50 88.00 90.00 AV-A1
1 1/4" 115.00 196.00 88.00 110.00 AV-A1
1 1/2" 115.00 269.30 88.00 120.00 AV-A1
2" 115.00 276.20 88.00 140.00 AV-A1
2 1/2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA

Screwed/Socket Weld Valve 3D Models

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

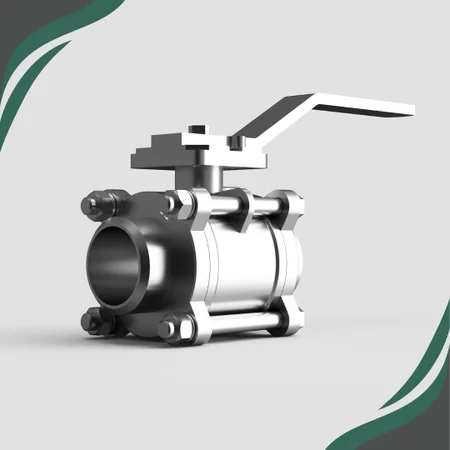

Butt Weld Valve 3D Models

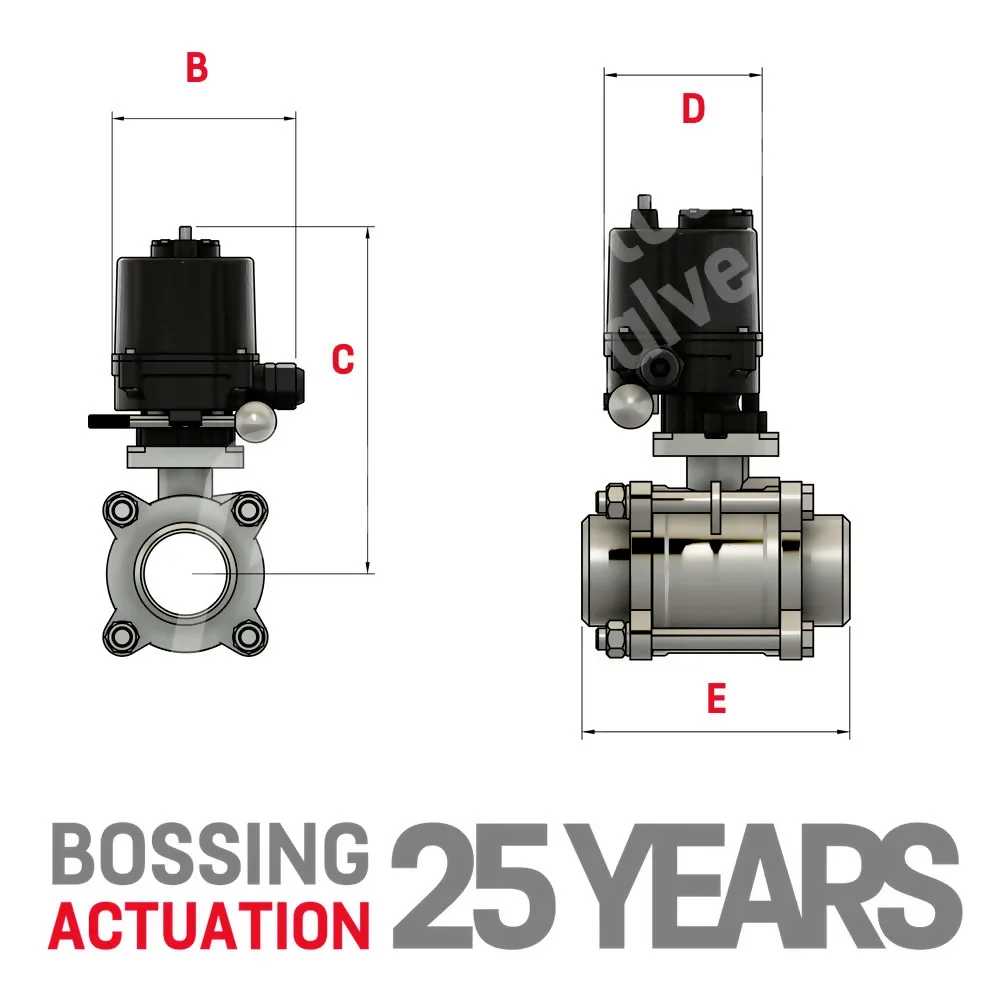

Butt Weld Valve Technical Data

B C D E Model
1/4" 115.00 175.50 88.00 75.00 AV-A1
3/8" 115.00 175.50 88.00 75.00 AV-A1
1/2" 115.00 175.50 88.00 75.00 AV-A1
3/4" 115.00 181.50 88.00 80.00 AV-A1
1" 115.00 191.50 88.00 90.00 AV-A1
1 1/4" 115.00 196.00 88.00 110.00 AV-A1
1 1/2" 115.00 269.30 88.00 120.00 AV-A1
2" 115.00 276.20 88.00 140.00 AV-A1
2 1/2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA

Actuated Valve Testing & Calibration

All actuated valve assemblies undergo comprehensive testing and calibration by our team of skilled technical engineers before they are packed and shipped. This ensures that upon arrival at your site, you can promptly proceed with installation, swiftly restoring your production operations.

Valve Standards & Specifications
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Design Standard: MSS SP-110
Wall Thickness: EN 12516-3
Inspection & Testing: MSS SP-110
BSP Ends: (BV-L3000) BSP IS0 7-1 (DIN 2999)
NPT Ends: (BV-L3000) ASME B1.20.1
Socket Weld Ends: (BV-L3100) ASME B16.11
Butt Weld Ends: (BV-L3200) ASME B16.25 (Sch 40)
Pressure Rating: 1000 PSI

Right Column Header

Yes, this valve is appropriate for use with water, provided it operates within the specified pressure and temperature ranges.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Yes, it definitely does. Each of our valve-activated units is provided with comprehensive operation and maintenance guides from both the valve and actuator producers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Maybe, contact us to find out what can be done.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

Feel free to come in for your collections. Just give us a call ahead of time, and we can schedule a convenient appointment for you.
