PN40 Carbon Steel AV-Lite Electric Actuated Ball Valves

Introducing the PN40 Carbon Steel AV-Lite Electric Actuated Ball Valves - ushering in the future of fluid control! Bid farewell to unwieldy manual valves and embrace the automation prowess that these exceptional ball valves offer. Enjoy smooth and highly efficient fluid control, thanks to the precision and dependability of our AV-Lite Electric Actuated Ball Valves. These valves, constructed from high-quality PN40 carbon steel, have been engineered to endure the test of time, ensuring that your systems operate smoothly, day after day. This product is the perfect choice for those overseeing water systems in moderately challenging conditions and rugged outdoor environments. It has been carefully manufactured using top-tier materials sourced from the reputable producer, Kingdom Controls.
Shop Help Me

Key Features

Key features and benefits of the BV-L6NC0-AV Actuated Ball Valves.
1

Key Features

This package for ball valves is specially crafted for utilisation in rugged outdoor conditions and with corrosive substances that pose a challenge to the material. It finds suitability in a wide spectrum of applications, spanning from the food and beverage industry to the realms of chemicals and petrochemicals.
2

Key Features

We conduct the assembly and testing of our entire product range internally to maintain complete control and ensure that you receive a durable, high-quality product. Every item we offer includes a comprehensive two-page test report that provides a detailed account of its performance, encompassing aspects such as opening/closing times and pressure ratings.
3

Key Features

The BV-L6NC0AV Ball Valve's minimal torque demands facilitate smooth operation and lead to cost savings when employing smaller actuators to automate valves that typically require larger units.

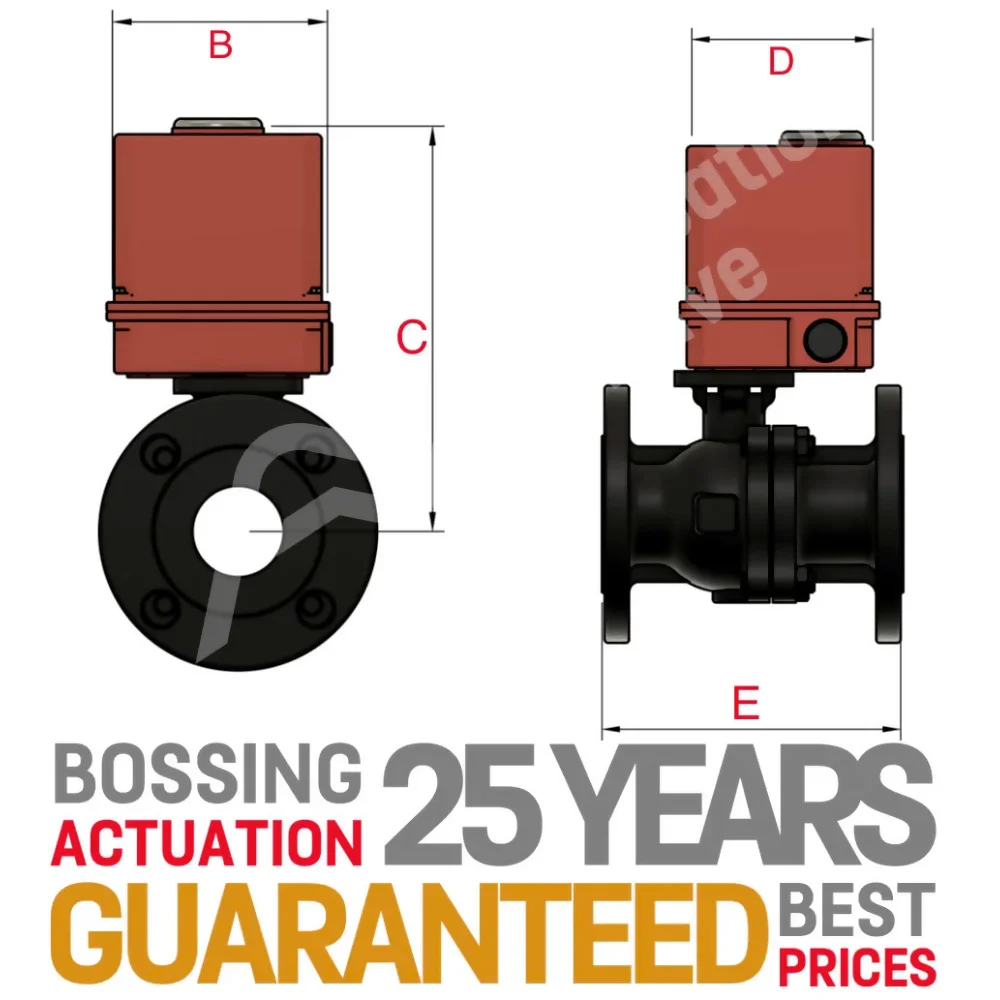

BV-L6NC0-AV Ball Valve Technical Data

B C D B C D E
SR SR SR DA DA DA SR/DA
1/4" TBA TBA TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA TBA TBA
1/2" 72.00 120.00 137.00 72.00 120.00 137.00 59.00
3/4" 72.00 126.00 137.00 72.00 126.00 137.00 69.00
1" 72.00 130.00 137.00 72.00 130.00 137.00 83.00
1 1/4" 93.00 168.50 203.50 72.00 135.50 137.00 94.00
1 1/2" 93.00 180.00 203.50 84.50 163.00 153.50 102.00
2" 106.00 200.50 153.50 84.50 170.50 153.50 124.00
2 1/2" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA

BV-L6NC0-AV Ball Valve 3D Models

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Specifications
Body Material: ASTM A216 WCB Carbon Steel construction, 304 Trim.
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: EN 12516-1
Wall Thickness: EN 12516-1
Inspection & Testing: EN 12266-1
Face 2 Face: DIN 3202 F-4 (1/2" - 4") DIN 3202 F-5 (5" - 6")

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds
