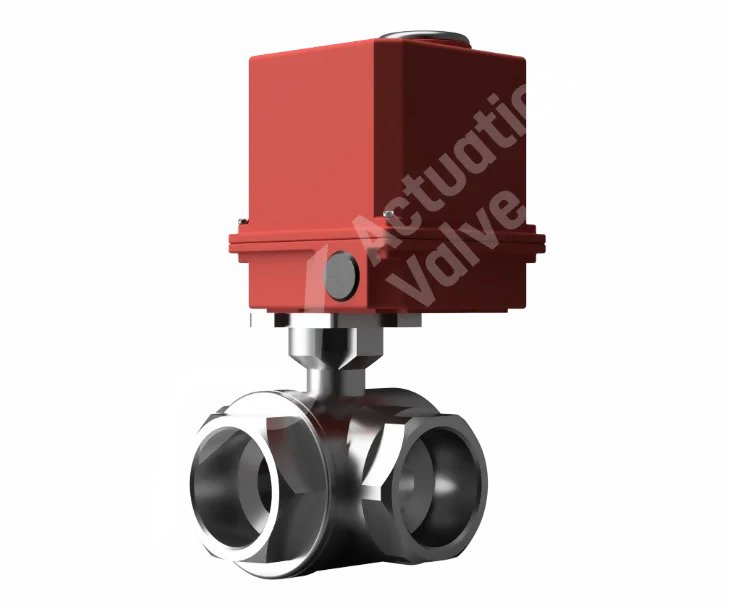

3 Way Motorised Valves - BSPP Full Bore SS AV-Lite Actuator Ball Valves

This motorised valve is a three-way valve that comes with threaded NPT & BSP connections. It is suitable for various applications requiring flow control. These valves comply with safety standards, ensuring workplace safety without straining your budget. The BV-L5000AV & 5100AV Screwed 3-Way Stainless Steel Ball Valve is a versatile, cost-effective, and robust valve designed for long-lasting performance in critical applications where reliability is paramount. Three-way ball valves are commonly employed to manage fluid direction and can be adapted as diverter or selector valves, depending on your specific needs. They are available with L or T Port Configurations and come with either 90-degree or 180-degree actuators.
Shop Help Me

Key Features

Key features and benefits of BV-L5300AV & BV-L5400AV Actuated Ball Valves.
1

Key Features

The BV-L5300 & 5400 Full Bore Screwed 3-Way Stainless Steel Ball Valve is a versatile, cost-effective, and robust valve designed explicitly to offer extended service life in applications where reliability is of utmost importance.
2

Key Features

Our selection of stainless steel 3-way motorised valves has been meticulously crafted to cater to applications with pressure requirements of up to 1000 PSI, prioritising long-term durability. Furthermore, we provide these ball valves in various sizes, ensuring that you'll find precisely what you require.
3

Key Features

The BV-L5300 & 5400 Full Bore 3-Way Diverter Ball Valve is a superb option for high-volume pneumatic systems. Its low torque demands lead to cost savings for actuated valves, as smaller actuators can now automate valves that typically require larger units.

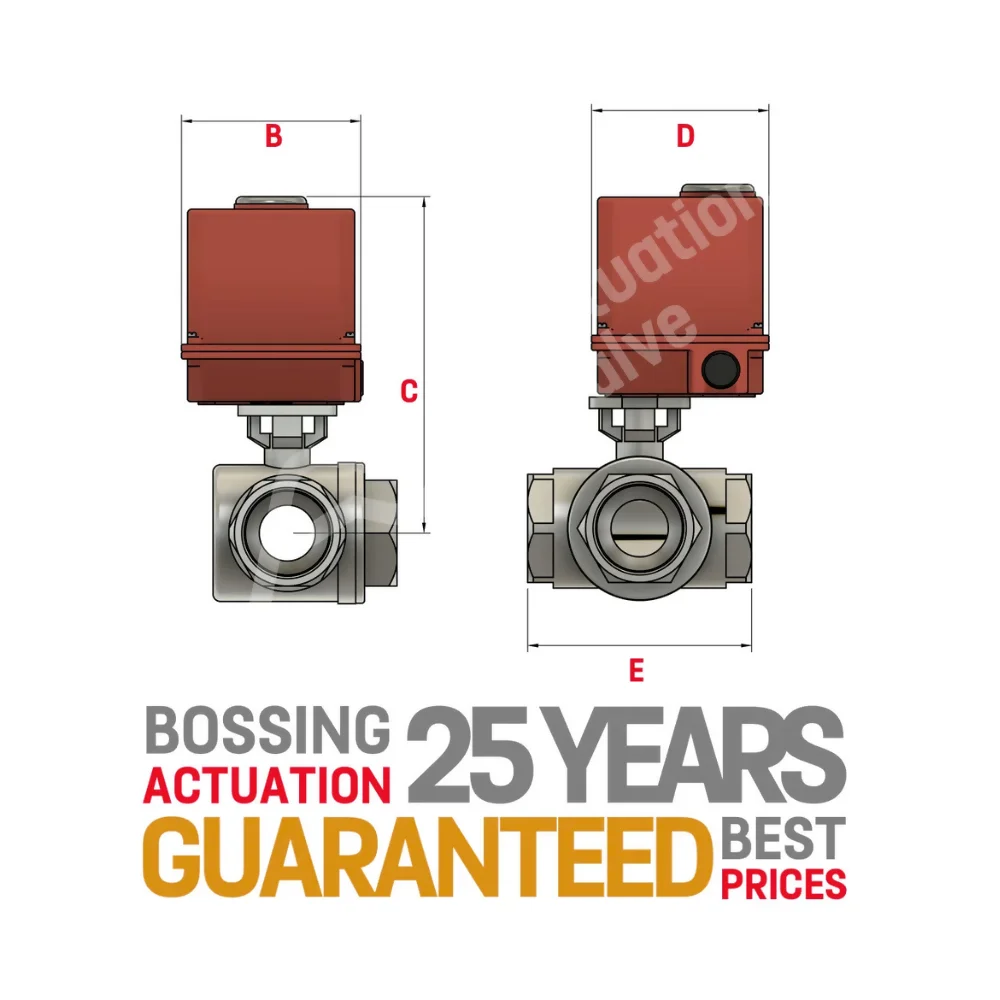

FB 3-Way Ball Valve Technical Data

B C D E Model
1/4" 100.00 153.50 145.00 79.00 AV-02
3/8" 100.00 153.50 145.00 79.00 AV-02
1/2" 100.00 159.50 145.00 88.00 AV-02
3/4" 100.00 170.00 145.00 108.00 AV-02
1" 100.00 173.50 145.00 124.00 AV-02
1 1/4" 121.90 215.00 117.00 135.00 AV-03
1 1/2" TBA TBA TBA TBA TBA
2" TBA TBA TBA TBA TBA
2 1/2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA
6" TBA TBA TBA TBA TBA

FB 3-Way Ball Valve 3D Models

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Specifications
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 400
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 7-1
Body Seal Material: PTFE
Stem Packing Material: PTFE

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

3-Way Valve Configuration

Multiple valve configurations are accessible to match your specific application needs. You can either request a configurator or contact us directly, and our experts in 3-Way valves will guide you through the available options.
