2 Piece Wras Approved Actuated Festo Ball Valves

Subtotal	£0.00

The BV-4500FE is a cost-effective, space-efficient brass ball valve with a full-bore design. It's an ideal choice for actuated valve solutions in screwed and threaded pipelines. Moreover, it has received WRAS approval, making it suitable for use with potable drinking water. A notable feature of the BV-4500FE is its ISO 5211 mounting pad, which enables valve actuation without the need for a separate mounting bracket. This streamlined design allows for immediate assembly and testing procedures right after placing your order. Additionally, for your convenience, express shipping is available for stock components, ensuring delivery within 24-48 hours. Notably, WRAS approval certificates are included with all assemblies at no extra cost. In summary, the BV-4500FE combines affordability, efficiency, and compliance to offer a reliable solution for your actuated valve needs in water pipelines.

Shop Help Me

Key features and benefits of BV-L4500FE Actuated Ball Valves.

Key Features

The WRAS-approved ball valve boasts a full-bore design that facilitates maximum flow with minimal pressure drop. Its high-quality brass body enables it to withstand operating pressures suitable for meeting PN40 ratings.

Key Features

The Festo pneumatic actuator represents a modern advancement in pneumatically operated control components, delivering a host of benefits when compared to traditional solutions. This innovative actuator is characterised by its high quality, extended operational lifespan, user-friendly handling, and a remarkable balance between performance and cost-effectiveness.

Key Features

Festo provides an extensive range of pneumatic components and comprehensive systems, simplifying the selection of the ideal components for your specific application. Their offerings encompass a wide spectrum, from compact pilot valves to substantial air cylinders, and they even provide comprehensive air control panels equipped with integrated displays, ensuring a solution for diverse needs.

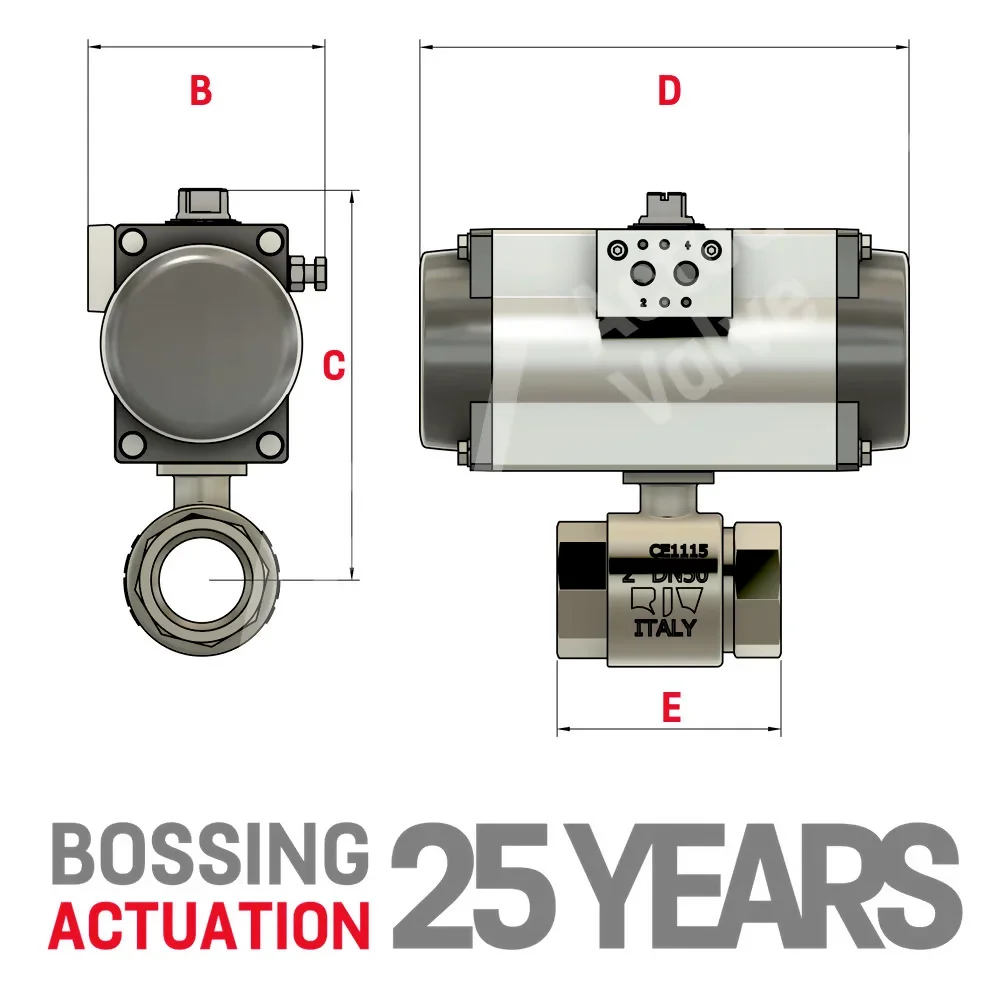

	B	C	D	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA
1/4"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3/8"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
1/2"	77.00	131.00	145.70	77.77	131.00	133.30	59.00
3/4"	77.00	137.00	145.70	77.77	137.00	133.30	69.00
1"	77.00	141.00	145.70	77.77	141.00	133.30	83.00
1 1/4"	89.70	158.50	170.40	77.77	146.50	133.30	94.00
1 1/2"	89.70	170.00	223.10	84.50	163.00	153.30	102.00
2"	108.00	195.00	153.50	89.70	177.50	151.40	124.00
2 1/2"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA	TBA	TBA

In the UK, water fittings connected to the public supply must comply with the Water Supply (Water Fittings) Regulations, or the Scottish Water Byelaws in Scotland. WRAS approval is not a legal requirement, but it is a widely recognised way of showing that a product has been tested against those requirements. This approval serves as evidence that our products have undergone testing by an independent body to ensure they meet all the necessary standards and requirements established by the government. The BV4500 is a Ball Valve that has received WRAS approval and is suitable for use with drinking water.


Body Material:	Brass CW 617 N
Seats Material:	PTFE
Shaft Material:	Brass CW 614 N
O-Rings Material:	Viton
Ball Material:	Brass CW 617 N
Approvals:	Wras approved
Mounting:	ISO 5211 Connection
End Connections:	BSPP
Pressure Rating:	PN40

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

The Festo CMSX Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the CMSX can help with your process requirements.
