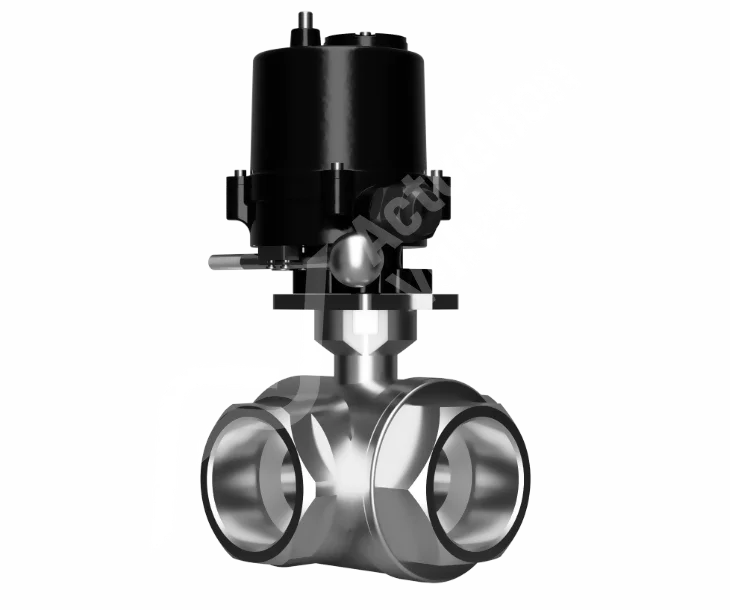

3-Way BSPP Reduced Bore RB AV-ARES Actuator Ball Valves

The BV-A5000 & 5100 3-Way ball valve can be used for mixing, distributing, or diverting water or other fluids. It is made of stainless steel, ensuring durability and resistance to chemicals and external factors. You can choose between L or T Port Configurations when placing your order. This industry-leading valve is designed for small to medium control systems, reducing torque requirements. This can lower costs and improve valve performance, ensuring smooth operation. The AV-ARES Electric Valve Actuator is a versatile electric actuator compatible with various voltage inputs, allowing for site standardisation without changing models. It features a specially designed circuit board, enabling the electric actuator to work with 24-240V AC or DC power supplies.
Shop Help Me

Key Features

Key features and benefits of BV-L5000AR & BV-L5100AR Actuated Ball Valves.
1

Key Features

The AR-ARES Electric Actuator can function effectively within a temperature range of -25 to 60 degrees Celsius, all while maintaining its speed and power efficiency. Its versatility in various settings ensures reliable performance when you require it the most.
2

Key Features

The AV-ARES Electric Actuator offers a perfect manual backup option for situations where it's necessary to transition from electrical control to mechanical operation in the event of power loss or other unforeseen emergencies.
3

Key Features

The AV-ARES series of electric actuators provides excellent torque at a budget-friendly cost while ensuring minimal noise disruption. Our hushed technology enables you to operate these actuators at maximum capacity, all while ensuring the comfort of the operator even during prolonged usage.

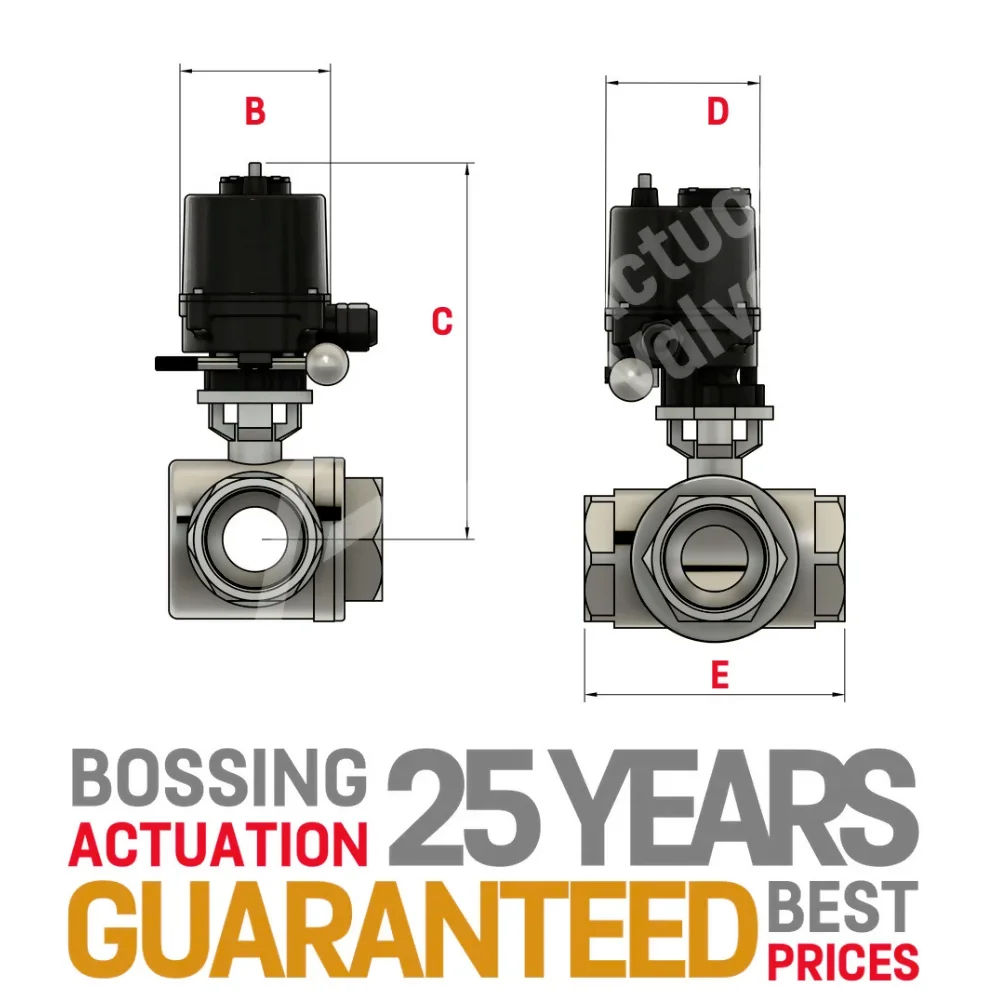

RB 3-Way Ball Valve Technical Data

B C D E Model
1/4" 88.00 176.00 88.00 79.00 AV-A1
3/8" 88.00 176.00 88.00 79.00 AV-A1
1/2" 88.00 176.00 88.00 79.00 AV-A1
3/4" 88.00 182.00 88.00 88.00 AV-A1
1" 88.00 192.50 88.00 108.00 AV-A1
1 1/4" 88.00 196.00 88.00 124.00 AV-A1
1 1/2" 88.00 271.50 88.00 135.00 AV-A1
2" TBA TBA TBA TBA TBA
2 1/2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA
6" TBA TBA TBA TBA TBA

RB 3-Way Ball Valve 3D Models

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Specifications
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: MSS SP-110
Wall Thickness ASME B16.34 Class 400
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 228/1

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
