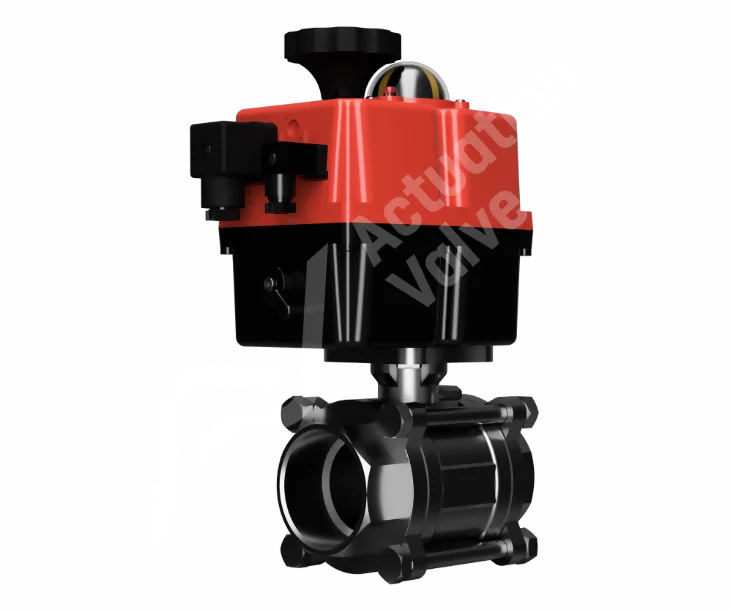

J4CS J&J Electric Actuator 3 Piece Full Bore Ball Valves

The BV-L3000 stainless steel ball valves are ideal for applications with oil-based paints like automotive refinishing. They are silicone-free to prevent contamination and come with a Fail-Safe Battery Backup option, ensuring uninterrupted operation during power or system failures. These valves are trusted in critical applications where any failure is unacceptable. In case of a power or system failure, the actuator automatically adjusts the valve position. Additionally, they easily integrate into existing infrastructures using the Modbus communications protocol, allowing multiple industrial devices to transmit data over serial lines.
Shop Help Me

Key Features

Key features and benefits of the BV-L3000JJ, BV-L3100JJ & BV-L3200JJ Actuated Ball Valves.
1

Key Features

The true multi-voltage plug-and-play operation permits site standardisation without the requirement to switch models when local voltages shift. The J4CS includes a built-in auto-conversion sensor voltage kit capable of accommodating 24-240V AC or DC supply.
2

Key Features

J&J Electric's DPS Kits present an excellent choice for applications demanding precise valve control. The digital positioner enables accurate fine-tuning of valve operation, and the kit is compatible with both S and B model actuators.
3

Key Features

With its three-piece body design and forward-thinking preventive maintenance schedules, this ball valve is entirely maintainable. The central section offers a convenient drop-out area for seal replacements, all while ensuring its continued reliability in operation.

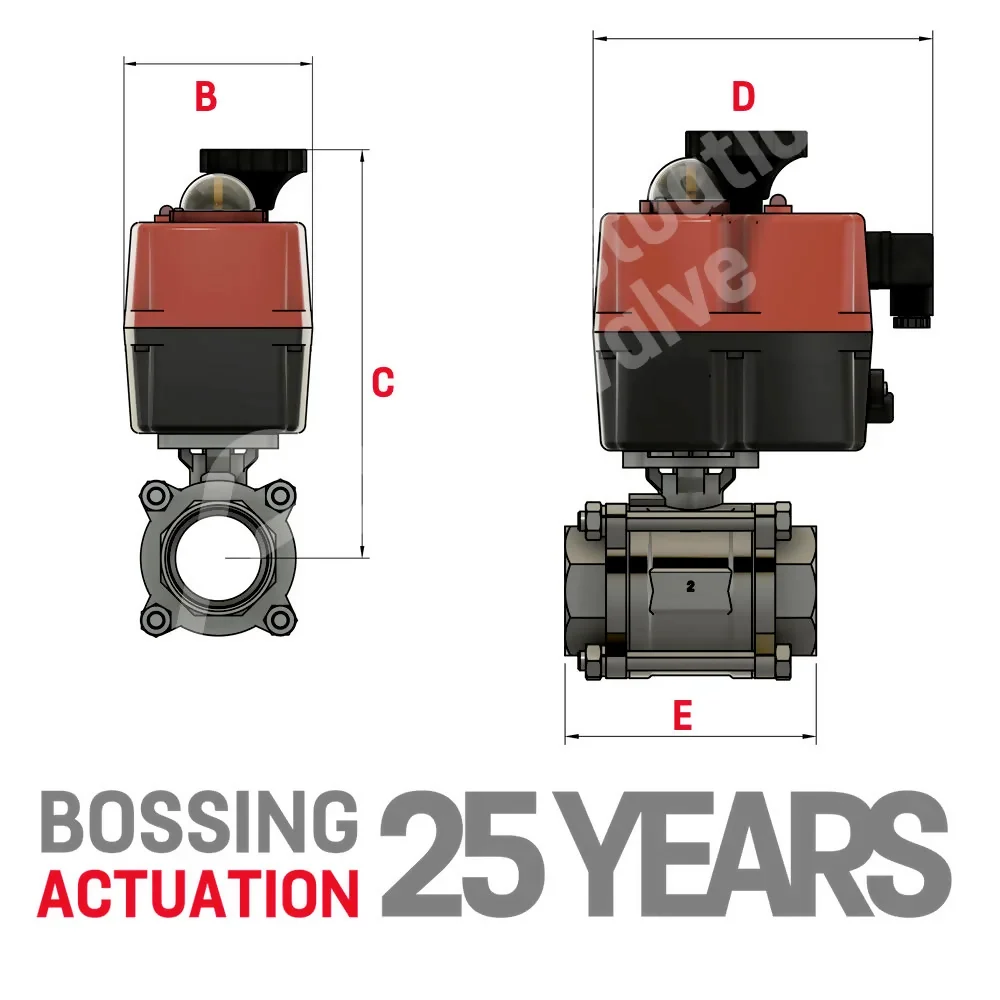

Screwed/Socket Weld Technical Data

B C D E Model
1/4" 110.00 213.00 179.00 75.00 J4CS20
3/8" 110.00 213.00 179.00 75.00 J4CS20
1/2" 110.00 213.00 179.00 75.00 J4CS20
3/4" 110.00 219.50 179.00 80.00 J4CS20
1" 110.00 229.50 179.00 90.00 J4CS20
1 1/4" 110.00 234.00 179.00 110.00 J4CS20
1 1/2" 110.00 242.30 179.00 120.00 J4CS35
2" 110.00 274.20 181.00 140.00 J4CS35
2 1/2" 110.00 296.00 181.00 185.00 J4CS85
3" 214.00 362.50 235.00 205.00 J4CS140
4" 214.00 394.00 235.00 240.00 J4CS140

Screwed/Socket Weld Valve 3D Models

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Butt Weld Valve 3D Models

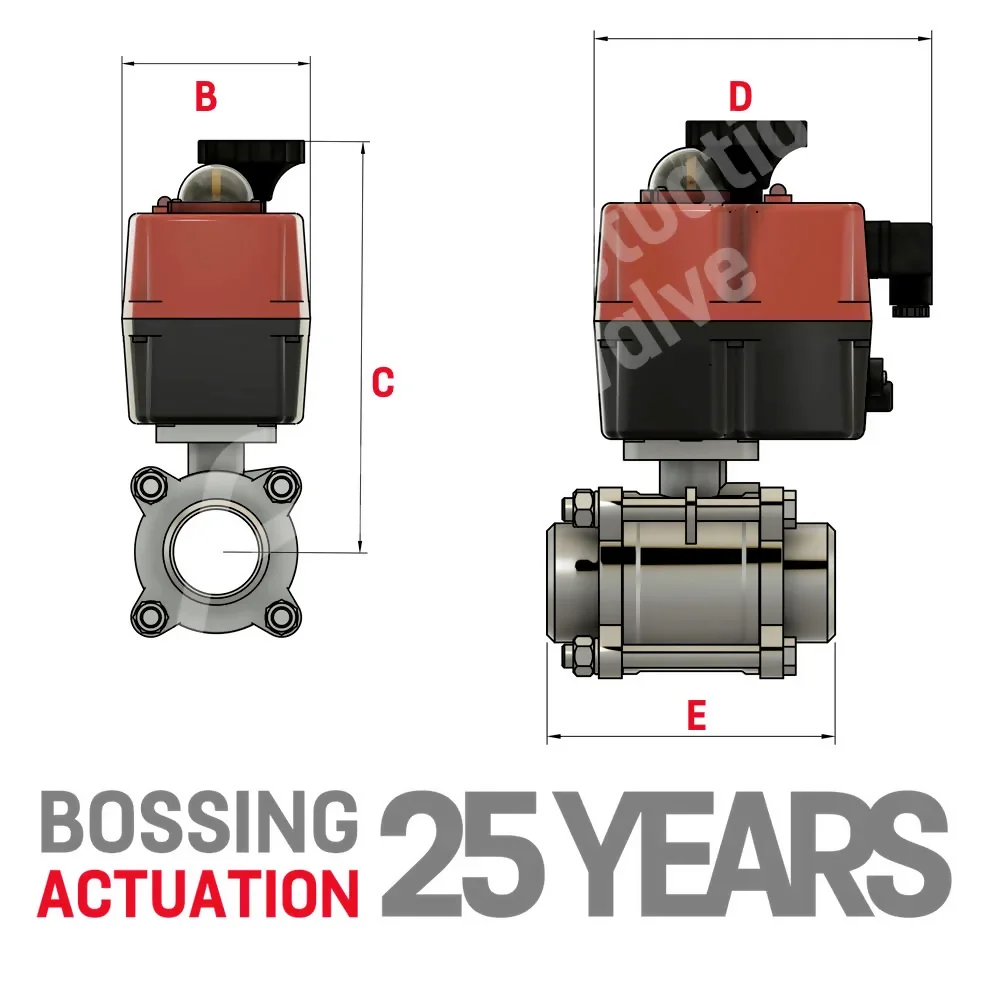

Butt Weld Valve Technical Data

B C D E Model
1/4" 110.00 213.00 179.00 70.00 J4CS20
3/8" 110.00 213.00 179.00 70.00 J4CS20
1/2" 110.00 213.00 179.00 75.00 J4CS20
3/4" 110.00 219.50 179.00 90.00 J4CS20
1" 110.00 229.50 179.00 100.00 J4CS20
1 1/4" 110.00 234.00 179.00 110.00 J4CS20
1 1/2" 110.00 242.30 179.00 125.00 J4CS35
2" 110.00 274.20 181.00 150.00 J4CS55
2 1/2" 110.00 296.00 181.00 190.00 J4CS85
3" 214.00 362.50 235.00 220.00 J4CS140
4" 214.00 394.00 235.00 270.00 J4CS140

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Specifications
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Design Standard: MSS SP-110
Wall Thickness: EN 12516-3
Inspection & Testing: MSS SP-110
BSP Ends: (BV-L3000) BSP IS0 7-1 (DIN 2999)
NPT Ends: (BV-L3000) ASME B1.20.1
Socket Weld Ends: (BV-L3100) ASME B16.11
Butt Weld Ends: (BV-L3200) ASME B16.25 (Sch 40)
Pressure Rating: 1000 PSI

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.
