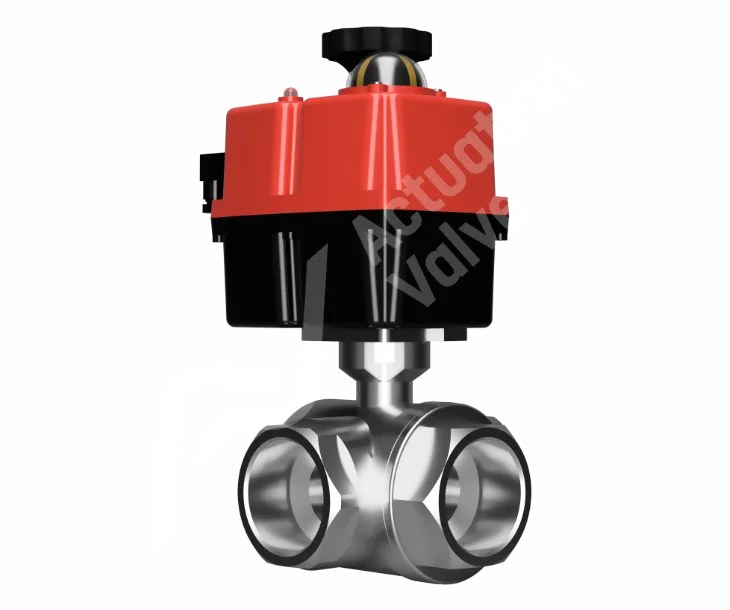

J4CS J&J Electric Actuator 3-Way Full Bore Ball Valves

The BV-L5300 & 5400 Full Bore 3-Way Ball Valves are free from silicone and suitable for use in applications involving oil-based paint products. This ensures that the Valve won't introduce any contaminants that could affect the final product quality. The J4S product line includes an affordable electric actuator that integrates with both IOS and Android devices, eliminating the need for extra hardware or software. This simplifies the process of connecting your application directly to your smartphone, tablet, or computer. 3-Way Ball Valves are commonly employed in industrial processes to redirect fluid flow between different paths. They are typically used in the process industry to connect, disconnect, or change the flow direction among multiple fluid paths.
Shop Help Me

Key Features

Key features and benefits of BV-L5300JJ & BV-L5400JJ Actuated Ball Valves.
1

Key Features

Our team boasts decades of experience in handling intricate automation systems, ensuring we can offer high-quality products with both speed and cost-effectiveness. Just let us know your requirements, and we'll handle the rest with utmost professionalism and efficiency.
2

Key Features

The low torque requirements of the BV-L5300 & 5400 Full Bore 3-Way Ball Valve ensure smooth operation while lowering the costs associated with Actuated Ball Valves. This allows for the use of smaller Actuators to automate Valves that typically require larger units, resulting in cost savings.
3

Key Features

J&J electric actuators are equipped with a highly visible 360-degree visual position indicator, providing immediate and clear local identification of the valve's open or closed position. This technology ensures that valve position visibility is readily available at all times.

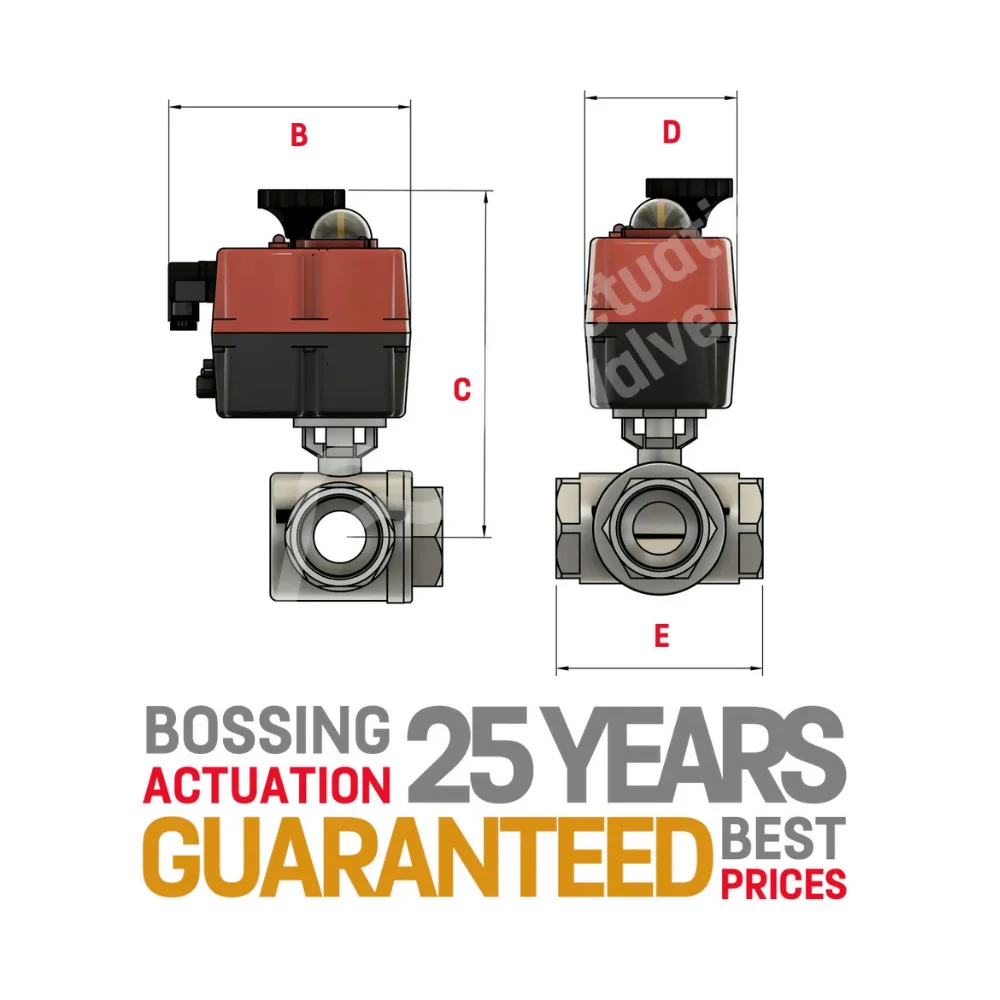

RB 3-Way Ball Valve Technical Data

B C D E Model
1/4" 179.00 214.00 110.00 79.00 J4CS20
3/8" 179.00 214.00 110.00 79.00 J4CS20
1/2" 179.00 214.00 110.00 79.00 J4CS20
3/4" 179.00 220.00 110.00 88.00 J4CS20
1" 179.00 230.50 110.00 108.00 J4CS20
1 1/4" 179.00 234.00 110.00 124.00 J4CS20
1 1/2" 179.00 244.50 110.00 135.00 J4CS35
2" 181.00 278.80 110.00 164.00 J4CS55
2 1/2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA
6" TBA TBA TBA TBA TBA

RB 3-Way Ball Valve 3D Models

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Specifications
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 400
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 7-1
Body Seal Material: PTFE
Stem Packing Material: PTFE

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

3-Way Valve Configuration

Multiple valve configurations are accessible to match your specific application needs. You can either request a configurator or contact us directly, and our experts in 3-Way valves will guide you through the available options.

Actuator Tech

  • PDF
DRAWINGS & SCHEMATICS

J4CS20
  • PDF
DRAWINGS & SCHEMATICS

J4CS35
  • PDF
DRAWINGS & SCHEMATICS

J4CS55
  • PDF
DRAWINGS & SCHEMATICS

J4CS85
  • PDF
DRAWINGS & SCHEMATICS

J4CS140
  • PDF
DRAWINGS & SCHEMATICS

J4CS300

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
