J4CS J&J Electric Actuator ANSI150 Carbon Steel Ball Valves

By transitioning from traditional ball valves to our low-torque BV-L61C0-JJ Ball Valve, you stand to benefit from cost savings in both installation and maintenance, all while enhancing overall reliability. Our product is thoughtfully engineered with end-users in mind, catering to the specific needs of industrial automation. The J&J Electric Valve Actuator includes a robust manual override handle, offering a dependable mechanical backup in case of power failures. This safety feature allows smooth switching between open and closed positions until systems or power are restored. With WRAS-approved TFM 1600 PTFE seats, safe operation is ensured, and our FDA-approved materials provide peace of mind, guaranteeing that your products will be handled safely without compromising quality or performance when used correctly. This approach not only enhances efficiency but also underscores our commitment to quality and safety in industrial applications.
Shop Help Me

Key Features

Key features and benefits of the BV-L61C0-JJ Actuated Ball Valves.
1

Key Features

Local LED visual indicators offer operators a clear and instant means of identifying valve positions in environments with low light or insufficient natural light to spot the 360-degree indicator. Additionally, the LED light comes equipped with comprehensive diagnostic capabilities and continuous operational status updates.
2

Key Features

The capability for smooth plug-and-play operation across various voltage settings enables standardisation at different sites without the necessity of switching models when local voltage requirements fluctuate. The J4CS includes an integrated automatic voltage conversion sensor kit, which can accommodate power supplies ranging from 24 to 240 volts, whether AC or DC.
3

Key Features

This ball valve can be easily maintained, thanks to the central section that offers a convenient area for replacing seals without compromising its operational reliability.

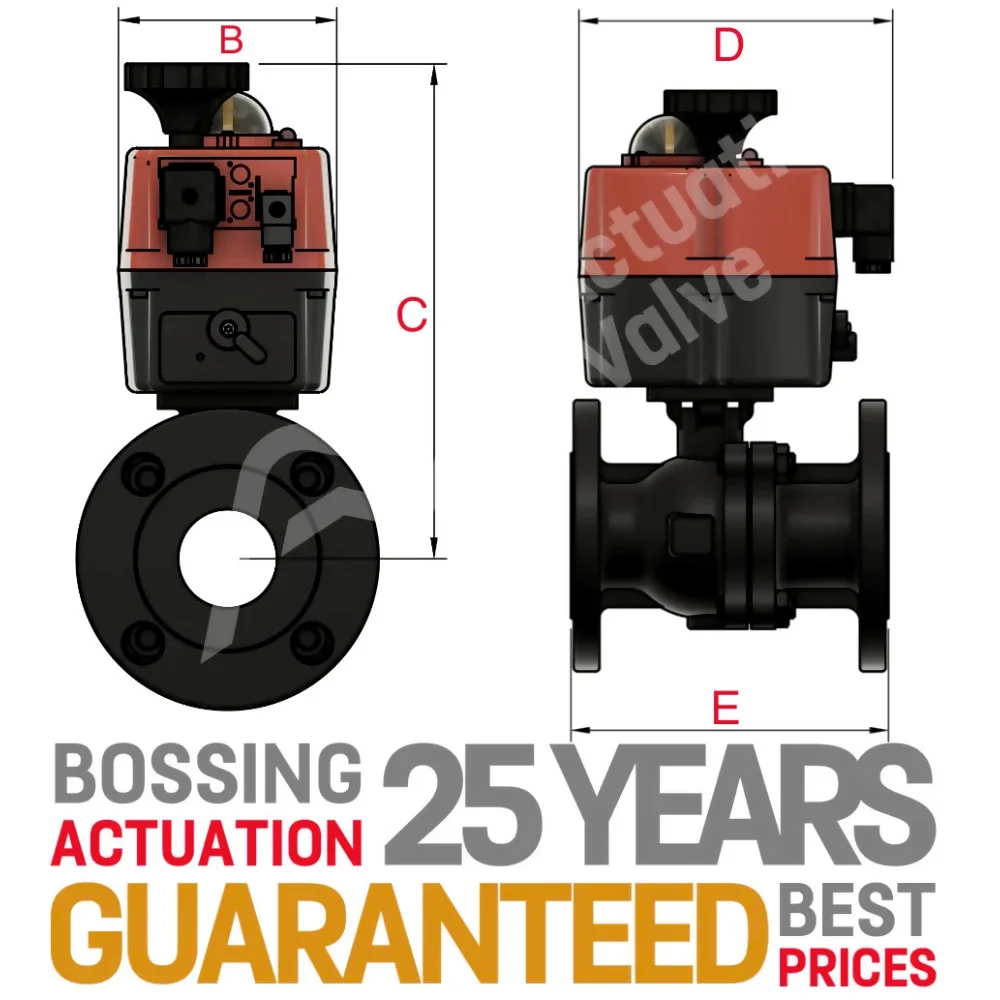

BV-L61C0-JJ Ball Valve Technical Data

B C D B C D E
SR SR SR DA DA DA SR/DA
1/4" TBA TBA TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA TBA TBA
1/2" 72.00 120.00 137.00 72.00 120.00 137.00 59.00
3/4" 72.00 126.00 137.00 72.00 126.00 137.00 69.00
1" 72.00 130.00 137.00 72.00 130.00 137.00 83.00
1 1/4" 93.00 168.50 203.50 72.00 135.50 137.00 94.00
1 1/2" 93.00 180.00 203.50 84.50 163.00 153.50 102.00
2" 106.00 200.50 153.50 84.50 170.50 153.50 124.00
2 1/2" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA

BV-L61C0-JJ Ball Valve 3D Models

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Specifications
Body Material: ASTM A216 WCB Carbon Steel construction, 304 Trim.
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
Face 2 Face: ASME B16.10

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.

Actuator Tech

  • PDF
DRAWINGS & SCHEMATICS

J4CS20
  • PDF
DRAWINGS & SCHEMATICS

J4CS35
  • PDF
DRAWINGS & SCHEMATICS

J4CS55
  • PDF
DRAWINGS & SCHEMATICS

J4CS85
  • PDF
DRAWINGS & SCHEMATICS

J4CS140
  • PDF
DRAWINGS & SCHEMATICS

J4CS300
