3-Way BSPP Stainless Steel Elomatic Actuated Ball Valves

Subtotal	£0.00

We manufacture and test all our products in-house to maintain complete control and ensure the delivery of a durable, high-quality product. Each product includes a comprehensive two-page test report that covers every operational aspect, including opening/closing times and pressure ratings. The BV-L5000 & 5100 3-Way Ball Valve is designed for the mixing, distributing, or diverting of water or other substances. Its stainless steel construction provides robustness and resistance to corrosive chemicals and external elements. You can choose between L or T Port Configurations when placing your order. The valve boasts a sturdy design, facilitating quick installation and easy maintenance. Its compact size makes it versatile for use in limited space applications, such as beneath machinery or within enclosures. For industrial settings, mounting brackets are available for installation.

Shop Help Me

Key features and benefits of BV-L5000EL & BV-L5100EL Actuated Ball Valves.

Key Features

EL-O-Matic Pneumatically operated valves find applications across diverse industries such as chemical, oil and gas, pharmaceuticals, water treatment, and more. These valves offer a rapid response time for efficiently opening or closing the flow of media, be it gases or fluids.

Key Features

All our Actuated Valve Assemblies are internally manufactured with the assistance of automation experts. Each completed unit is equipped to meet rigorous standards and can be traced back through a comprehensive two-page test report detailing opening and closing times.

Key Features

EL-O-Matic Pneumatic Actuators incorporate long-life springs and precision engineering to ensure the fail-safe mechanism's high reliability, essential for secure plant operations. When prioritizing quality and safety, choose EL-O-Matic.

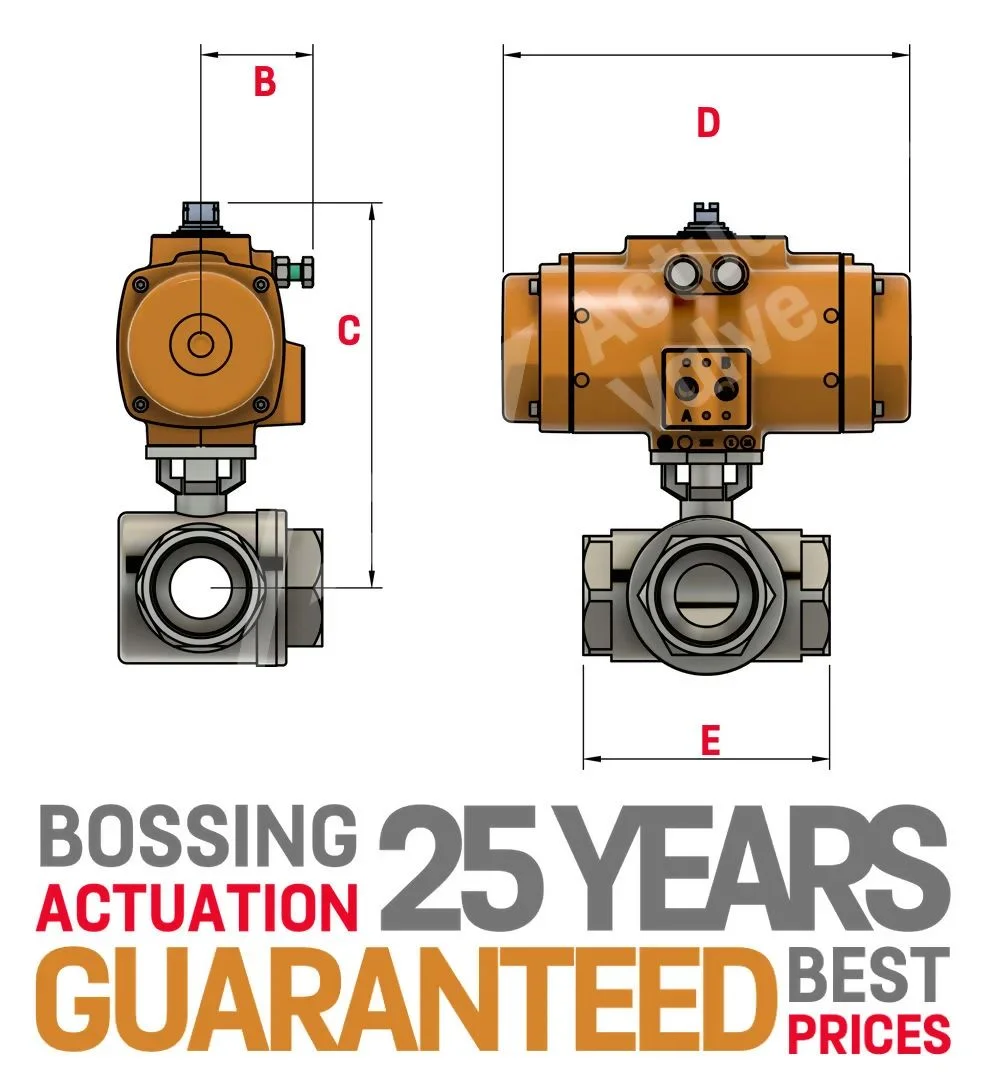

	B	C	D	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA
1/4"	96.00	154.00	166.00	60.00	123.00	103.00	79.00
3/8"	96.00	154.00	166.00	60.00	123.00	103.00	79.00
1/2"	96.00	154.00	166.00	60.00	123.00	103.00	79.00
3/4"	96.00	160.00	166.00	83.00	160.00	166.00	88.00
1"	96.00	191.50	192.00	83.00	170.50	166.00	108.00
1 1/4"	96.00	195.00	192.00	83.00	174.00	166.00	124.00
1 1/2"	115.50	217.50	217.00	96.00	205.50	192.00	135.00
2"	115.50	233.80	247.00	104.00	226.80	217.00	164.00
2.5"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

ZIP
Size 0100

DRAWINGS & SCHEMATICS

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	PTFE
Stem Packing Material:	PTFE
Design Standard:	MSS SP-110
Wall Thickness:	ASME B16.34 Class 400
Inspection & Testing:	MSS SP-110
BSP Ends:	BSPP IS0 228/1

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

CERTIFICATES & APPROVALS

Document

CERTIFICATES & APPROVALS

Brochures

CERTIFICATES & APPROVALS

Elomatic Actuator Videos

Elomatic Overview

Multiple valve configurations are accessible to match your specific application needs. You can either request a configurator or contact us directly, and our experts in 3-Way valves will guide you through the available options.

DRAWINGS & SCHEMATICS

The TopWorx Elomatic Valve Limit Switch Box is accessible for this item. Maintain exclusivity within the Emerson Group of products featuring a globally leading Valve Position Monitor. Options include Safe Area, Explosion Proof, and Intrinsically Safe variants, all readily available in stock, with installation and calibration services provided for your Elomatic Actuator before shipment.
