The BV-L5K00 & 5N00 Flanged 3-Way Stainless Steel Ball Valve is a versatile, cost-effective, and robust valve designed specifically to ensure prolonged service life in applications where reliability is paramount. It comes in two configurations: L Port and T Port. The L Port version can achieve complete shutoff depending on the actuator type, while the T Port version allows for diversion or constant flow from one port to another. The EL-O-Matic Pneumatic Actuator, with its extended lifespan springs and precise engineering, ensures secure and reliable plant operations. Noteworthy features include high durability, minimal maintenance requirements, and straightforward operation, making it an excellent choice for your application.

Shop Help Me

Key features and benefits of BV-L5K00EL & BV-L5N00EL Actuated Ball Valves.

Key Features

The EL-O-Matic Pneumatic Actuator employs an innovative design, blending proven technology with modern engineering methods to provide dependable outcomes without introducing added complexity or extra components to your system.

Key Features

Our actuators feature durable springs, precision engineering, and a fail-safe mechanism, ensuring the reliable operation of your equipment over an extended period. If you seek a Pneumatic Actuator engineered to surpass industry standards, opt for EL-O-Matic.

Key Features

The AV-L5K00 & 5N00 constitutes a cost-effective range of high-quality stainless steel ball valves that won't strain your budget. These robust products guarantee years of trouble-free service, all at a fraction of the cost charged by other companies for similar items.

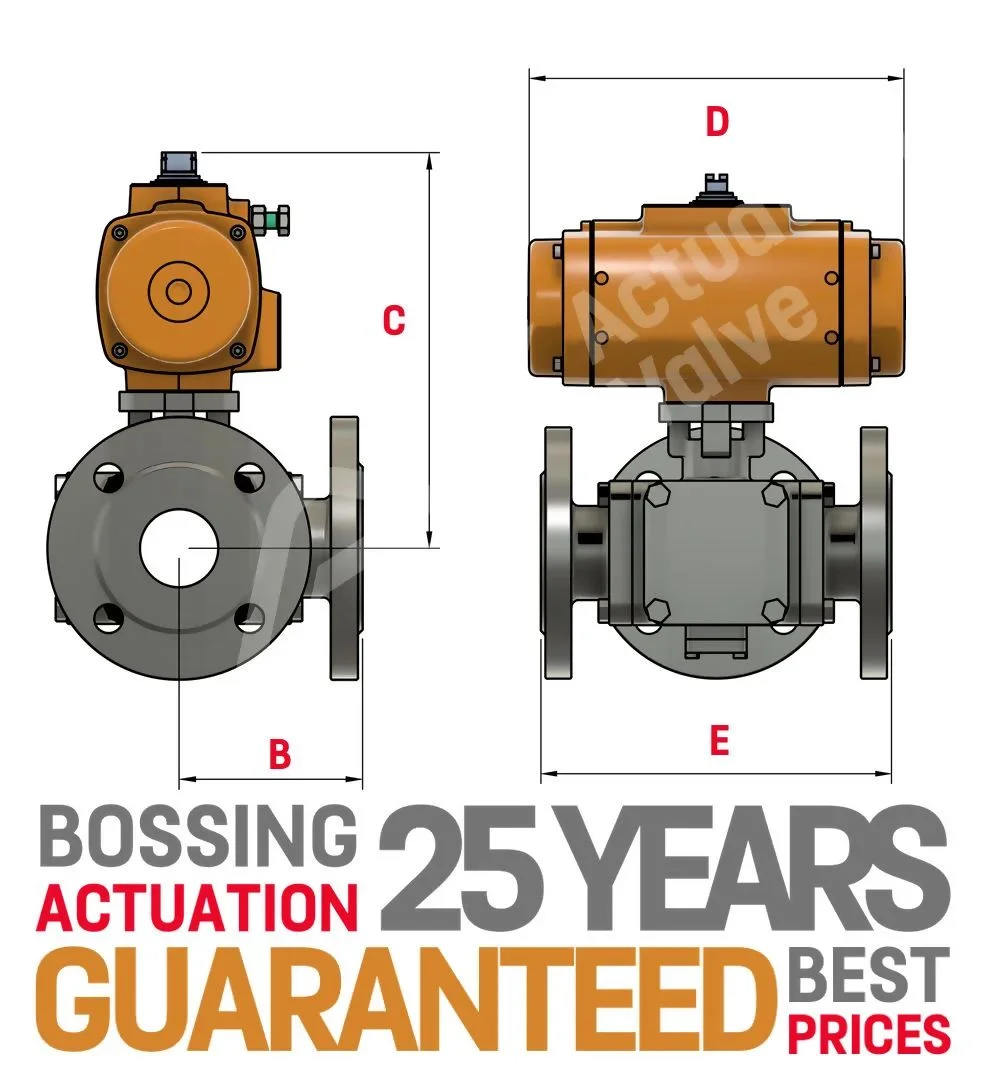

	B	C	D	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA
1/4"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3/8"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
1/2"	TBA	164.00	166.00	TBA	133.00	103.00	150.00
3/4"	TBA	189.00	192.00	TBA	168.00	166.00	165.00
1"	TBA	212.00	217.00	TBA	200.00	192.00	181.00
1 1/4"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
1 1/2"	TBA	236.00	247.00	TBA	229.00	217.00	190.00
2"	TBA	269.00	304.00	TBA	243.00	247.00	212.00
2 1/2"	TBA	290.00	362.00	TBA	284.00	235.00	230.00
3"	TBA	340.00	385.00	TBA	302.00	265.00	310.00 / 340.00
4"	TBA	428.00	476.00	TBA	371.00	284.00	352.00 / 386.00

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

ZIP
Size 0100

DRAWINGS & SCHEMATICS

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	PTFE
Stem Packing Material:	PTFE
Design Standard:	DIN3357 1,2, EN 12516-1
Wall Thickness:	ASME B16.34, EN12516-1
Inspection & Testing:	DIN3230/3, EN 12266
Face 2 Face:	DIN 3202 F4 (1/2" - 4") & DIN 3202 F5 (5" - 6")

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.
