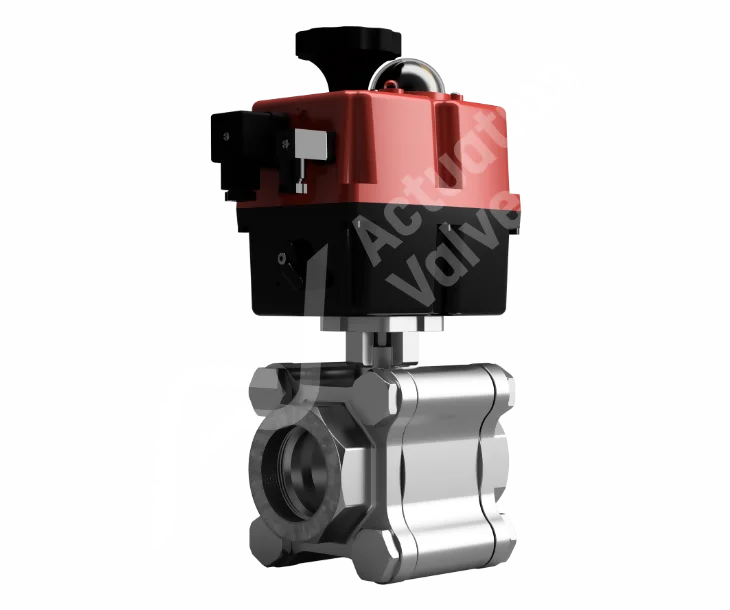

J4CS J&J Electric Actuator SS Heavy Duty Ball Valves

The isolation Ball Valve is completely maintainable and dependable. The central part of the 3 Piece Body Design ensures long-term preventive maintenance plans with a removable section for easy seal replacements. It comes with Bluetooth technology that allows direct connection to any IOS or Android device with the J4S electric actuator. Control options include opening and closing the actuator or valve, as well as stopping it in its current position. The BV-L8000FS Heavy Duty Stainless Steel Ball Valve is designed for heavy-duty industrial applications that require higher pressure or temperature handling. This ball valve is equipped with PTFE TFM 4215 ball seats and grafoil stem sealing, enclosed in a stainless steel body.
Shop Help Me

Key Features

Key features and benefits of BV-L8000JJ, BV-L8100JJ & BV-L8200JJ Actuated Ball Valves.
1

Key Features

J&J Electric Actuators are crafted for effortless installation and sustained dependability across a diverse array of applications. Supported by a global network of technical support professionals, we're here to assist you in getting started swiftly and.
2

Key Features

Our commitment to reliable performance is backed by a "put up or shut up" warranty offer. Starting from the date of shipment, Actuation Valve and J&J provide a 3-year life cycle warranty, guaranteed for up to 60,000 cycles, whichever occurs first. This equates to more than 50 cycles per day without any interruption to your application.
3

Key Features

By switching from conventional ball valves to our low torque BV-L8000FS Ball Valve, you'll save money on installation costs and maintenance while improving overall reliability. Our product is designed with the end-user in mind and we understand what works best for industrial automation.

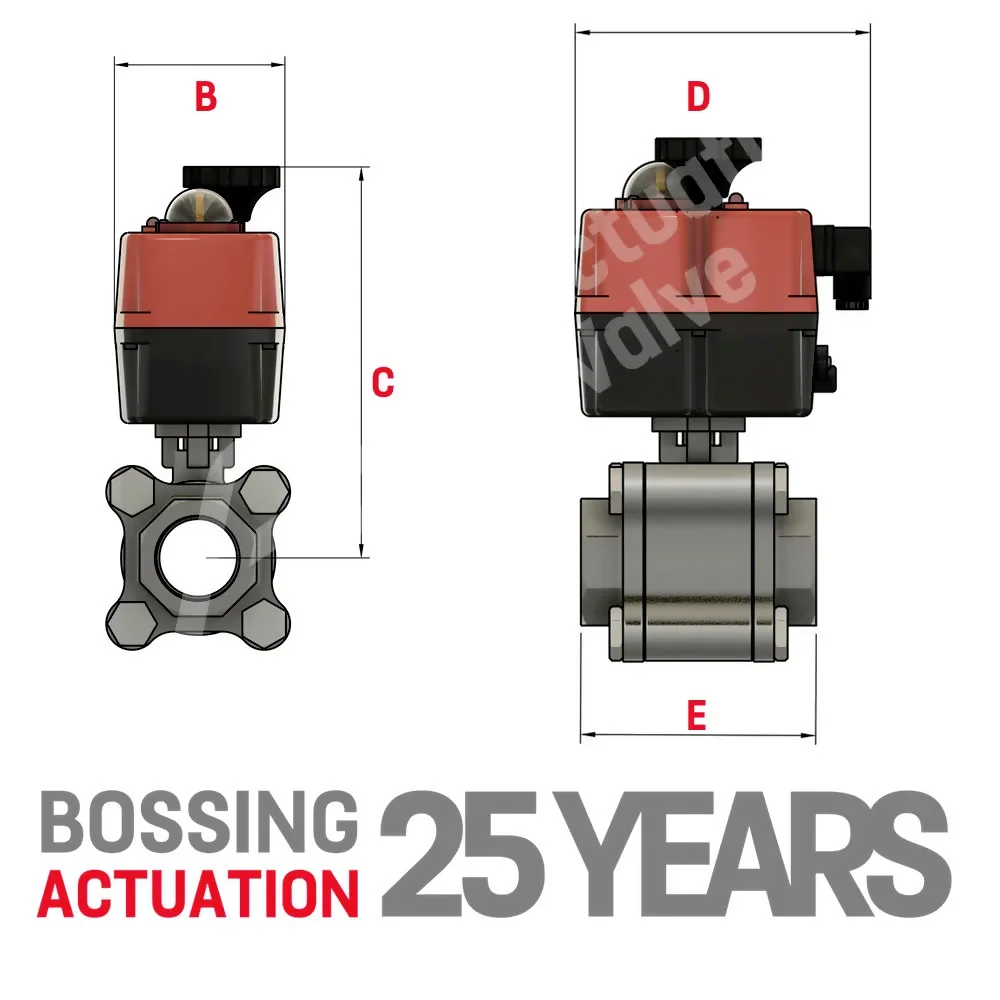

Screwed/Socket Weld Technical Data

B C D E Model
1/4" 110.00 214.00 179.00 75.00 J4CS20
3/8" 110.00 214.00 179.00 75.00 J4CS20
1/2" 110.00 214.00 179.00 75.00 J4CS20
3/4" 110.00 222.00 179.00 80.00 J4CS20
1" 110.00 229.00 179.00 90.00 J4CS20
1 1/4" 110.00 234.00 179.00 110.00 J4CS20
1 1/2" 110.00 246.00 179.00 120.00 J4CS35
2" 110.00 282.00 181.00 140.00 J4CS55
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA

Screwed/Socket Weld Valve 3D Models

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Butt Weld Valve 3D Models

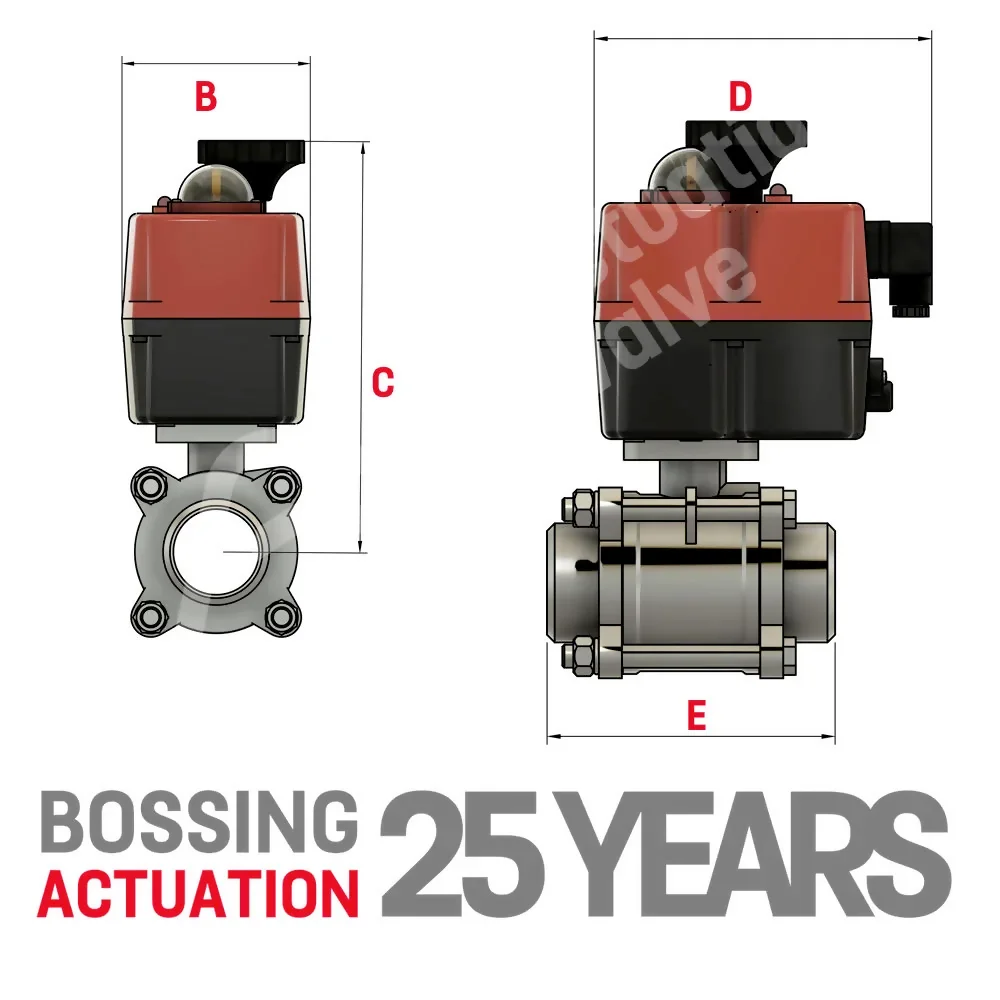

Butt Weld Valve Technical Data

B C D E Model
1/4" 110.00 214.00 179.00 70.00 J4CS20
3/8" 110.00 214.00 179.00 70.00 J4CS20
1/2" 110.00 214.00 179.00 75.00 J4CS20
3/4" 110.00 222.00 179.00 90.00 J4CS20
1" 110.00 229.00 179.00 100.00 J4CS20
1 1/4" 110.00 234.00 179.00 110.00 J4CS20
1 1/2" 110.00 246.00 179.00 125.00 J4CS35
2" 110.00 282.00 181.00 150.00 J4CS55
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Specifications
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 4215® (25% Carbon Filled TFM)
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing: MSS SP-110
BSP Ends: ISO 7-1 (DIN 2999)
NPT Ends: ASME B1.20.1
Socket Weld Ends: ASME B16.11
Butt Weld Ends: ASME B16.25 (Sch 80)

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.

Actuator Tech

  • PDF
DRAWINGS & SCHEMATICS

J4CS20
  • PDF
DRAWINGS & SCHEMATICS

J4CS35
  • PDF
DRAWINGS & SCHEMATICS

J4CS55
  • PDF
DRAWINGS & SCHEMATICS

J4CS85
  • PDF
DRAWINGS & SCHEMATICS

J4CS140
  • PDF
DRAWINGS & SCHEMATICS

J4CS300
