Actreg Pneumatic Actuators offer an ideal solution for installations that require frequent on/off cycles. These actuators are specifically designed for applications involving material handling. They can be safely rated with a high safety integrity level (SIL 3). Our pneumatically operated rack and pinion system provides greater precision compared to traditional designs. Additionally, it extends the lifespan of your components by guarding against excessive wear and tear. Feel free to get in touch with us today to learn more about how we can enhance your application! The BV-L3000 Ball Valve has low torque requirements, enabling smooth operation and reducing the costs associated with Actuated Ball Valves. It allows for the use of smaller actuators to automate valves that typically require larger units.

Shop Help Me

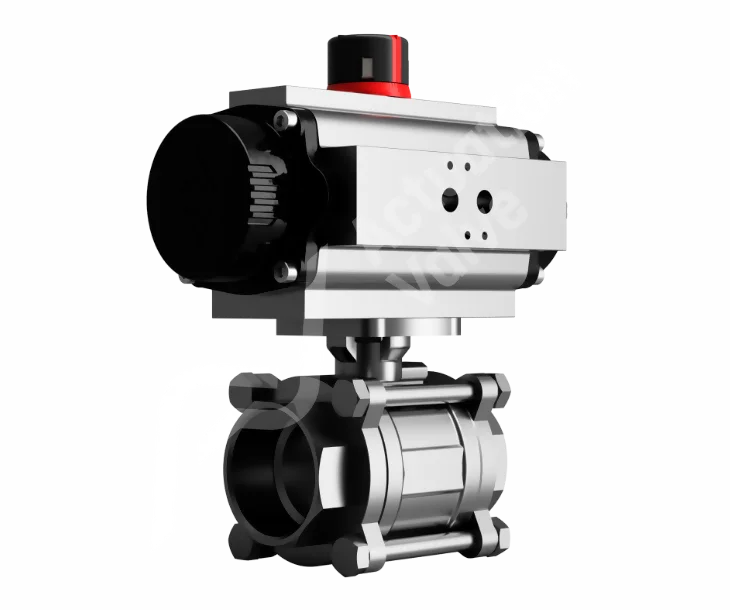

Key features and benefits of the BV-L3000AC, BV-L3100AC & BV-L3200AC Actuated Ball Valves

Key Features

The BV-L3000 Ball Valve proves to be a superb option for high-capacity pneumatic systems due to its minimal torque demands, resulting in cost savings for Actuated Valves. This is made possible by the use of smaller actuators that can effectively operate valves typically requiring more substantial units.

Key Features

Whether your application requires an actuator to be perform hundred or cycles per day or a unit that may be operations several per month the Actreg actuator is there when you need it with the ability to instantly respond when tasked or spring fail closed upon air or signal failure.

Key Features

We manufacture and examine all our items internally to maintain full control and ensure that you receive a durable, top-notch product. Each of our products is accompanied by a comprehensive two-page test report that outlines every operational aspect, including opening and closing times, as well as pressure ratings.

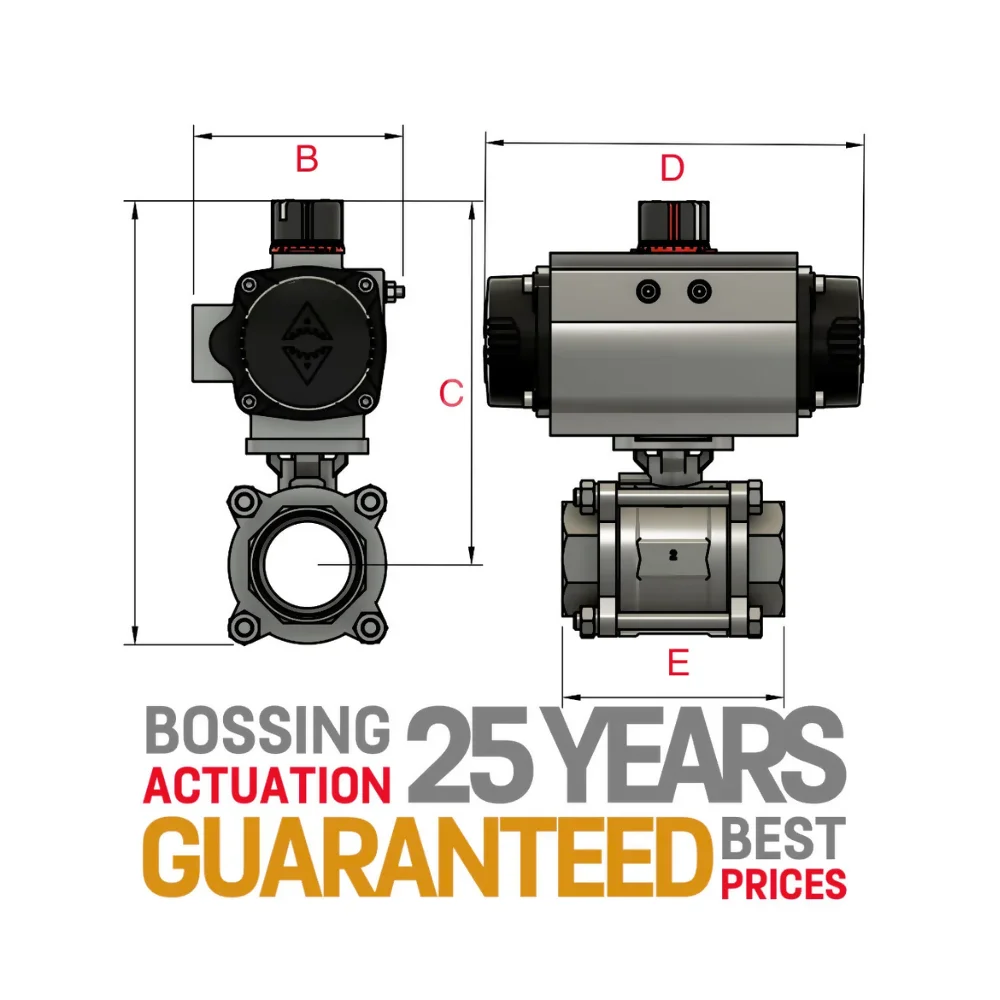

	B	C	D	E	B	C	D	E
	SR	SR	SR	SR	DA	DA	DA	DA
1/4"	81.00	138.00	163.00	75.00	72.00	131.00	145.00	75.00
3/8"	81.00	138.00	163.00	75.00	72.00	131.00	145.00	75.00
1/2"	81.00	138.00	163.00	75.00	72.00	131.00	145.00	75.00
3/4"	81.00	144.50	163.00	80.00	72.00	137.50	145.00	80.00
1"	96.00	173.50	195.00	90.00	72.00	147.50	158.00	90.00
1 1/4"	96.00	178.00	195.00	110.00	72.00	152.00	158.00	110.00
1 1/2"	116.00	208.30	217.00	120.00	84.50	176.30	177.00	120.00
2"	116.00	215.20	217.00	140.00	93.00	200.20	177.00	140.00
2 1/2"	127.00	247.00	258.00	185.00	93.00	222.00	196.00	185.00
3"	140.00	273.50	299.00	205.00	106.00	243.50	225.00	205.00
4"	157.00	322.00	348.50	240.00	136.00	315.00	273.00	240.00

All valve assemblies with actuators undergo comprehensive testing and calibration by our team of skilled technical engineers before they are packaged and dispatched. This ensures that upon arrival at your site, you can promptly proceed with installation, swiftly restoring your production operations to normal.

DRAWINGS & SCHEMATICS

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Design Standard:	MSS SP-110
Wall Thickness:	EN 12516-3
Inspection & Testing:	MSS SP-110
BSP Ends: (BV-L3000)	BSP IS0 7-1 (DIN 2999)
NPT Ends: (BV-L3000)	ASME B1.20.1
Socket Weld Ends: (BV-L3100)	ASME B16.11
Butt Weld Ends: (BV-L3200)	ASME B16.25 (Sch 40)
Pressure Rating:	1000 PSI

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.

Potentially. Contact us so we can discuss potential options.

No unfortunately. We do not offer that level of customisation.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

The BLX V100E Series serves as an Electro-Pneumatic control device enabling the Actuator to gradually modify the Valve's positioning between fully open and fully closed states. There are variations of this product designed for both spring return and double-acting configurations, complete with feedback and safety features. Feel free to reach out to our team today to learn how the V100E can address your specific process needs.
