Our stainless steel ball valves are supplied pre-tested, allowing for immediate operation. Following your order completion, you'll receive a detailed two-page test report that outlines all the opening and closing times. The BV-L6100 stainless steel ball valves are particularly suitable for oil-based paints and coatings applications, such as in automotive refinishing. Being 100% silicone-free, they ensure no contamination of your products or residual deposits that could impair the finish over time. The Koei UNIC electric actuator series presents a cost-effective option, delivering up to 30% enhanced performance with reduced operational costs in comparison to existing products on the market. These actuators can be powered by either AC or DC current.

Shop Help Me

Key features and benefits of BV-L6100EK Actuated Ball Valves.

Key Features

The BV-L6100 Ball Valves, free from silicone, are apt for use with oil-based paint products and related applications, ensuring that the valve will not introduce any contaminants that could affect the final finish. This aspect is crucial in car manufacturing processes.

Key Features

The Koei UNIC Electric Actuator stands out as the most compact and innovative offering in the current market. It assures smooth functioning across its entire speed range even in high shock environments, ensuring your equipment operates seamlessly around the clock.

Key Features

Owing to its high-efficiency motor, this product efficiently operates in temperatures ranging from -25 to 55 degrees Celsius without compromising on speed or power efficiency. Its capability to perform in extreme conditions makes this electric actuator a reliable choice for critical requirements.

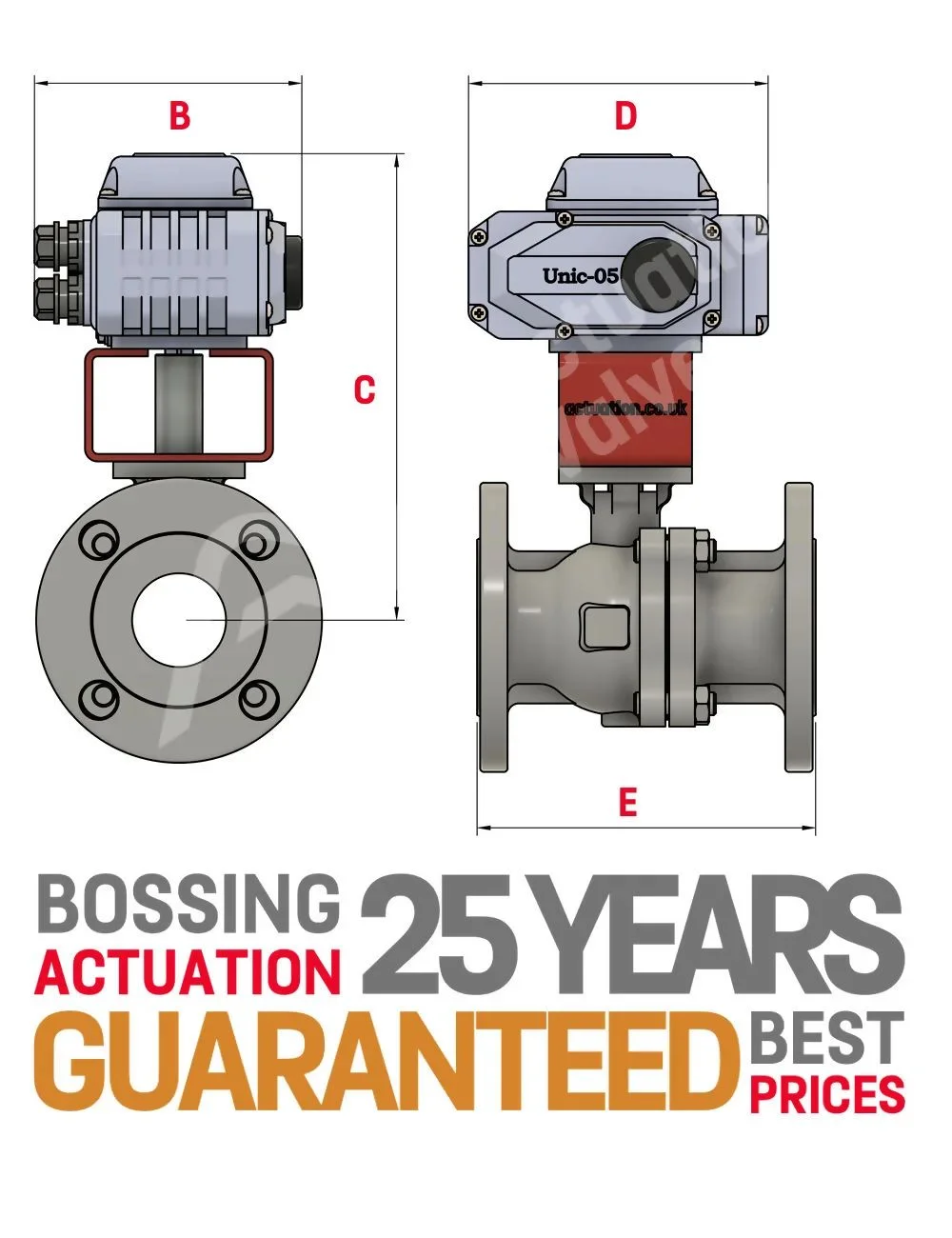

	B	C	D	E	Model
1/2"	145.00	225.00	159.00	108.00	UNIC 05
3/4"	145.00	229.00	159.00	117.00	UNIC 05
1"	145.00	235.00	159.00	127.00	UNIC 05
1 1/4"	145.00	247.00	159.00	140.00	UNIC 05
1 1/2"	145.00	252.00	159.00	165.00	UNIC 05
2"	145.00	258.00	159.00	178.00	UNIC 05
2 1/2"	155.00	304.00	208.00	190.00	UNIC 10
3"	155.00	314.00	208.00	203.00	UNIC 10
4"	187.00	350.00	257.00	229.00	UNIC 20
5"	187.00	393.00	257.00	356.00	UNIC 40
6"	272.00	440.00	381.00	394.00	UNIC 60
8"	272.00	489.00	381.00	457.00	UNIC 60
10"	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	Grafoil/316 Stainless Steel
Stem Packing Material:	Grafoil
Design Standard:	ASME B16.34
Wall Thickness:	ASME B16.34
Inspection & Testing:	API 598
Face 2 Face:	ASME B16.10

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.

Potentially. Contact us so we can discuss potential options.

No unfortunately. We do not offer that level of customisation.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.
