The BV-L2000AT is a stainless steel full-bore ball valve that provides a high-quality SIL-rated valve at an affordable price range. All devices include an ISO 5211 mounting pad for quick actuation assembly, 48-hour shipping, and ATEX approval. This valve is suitable for pressures of up to 1000 PSI and can be operated pneumatically or electrically with fail-in-position or fail-closed options. You can also adapt the PTFE TFM 1600 seats to TFM 4215 for higher-temperature applications.

Shop Help Me

Key features and benefits of BV-L2000AT Actuated Ball Valves.

Key Features

The BV-L2000 full bore two-piece stainless steel ball valves showcase a groundbreaking design that can enhance your operation's efficiency and reliability. The use of high-quality 316 stainless steel results in a reduced total cost of ownership when compared to standard carbon steel models.

Key Features

Air Torque pneumatic actuators have been meticulously optimised for performance and durability at every stage of their development, spanning from design and production to rigorous testing. With over 30 years of experience in crafting robust and dependable components, you can place your trust in us for the success of your project.

Key Features

We maintain a stock range of couplings and brackets tailored to accommodate the Air Torque range of actuators and any valves that necessitate these linkages. This allows BallValve to provide swift lead times and fast turnaround for all actuated valve packages involving the Air Torque unit.

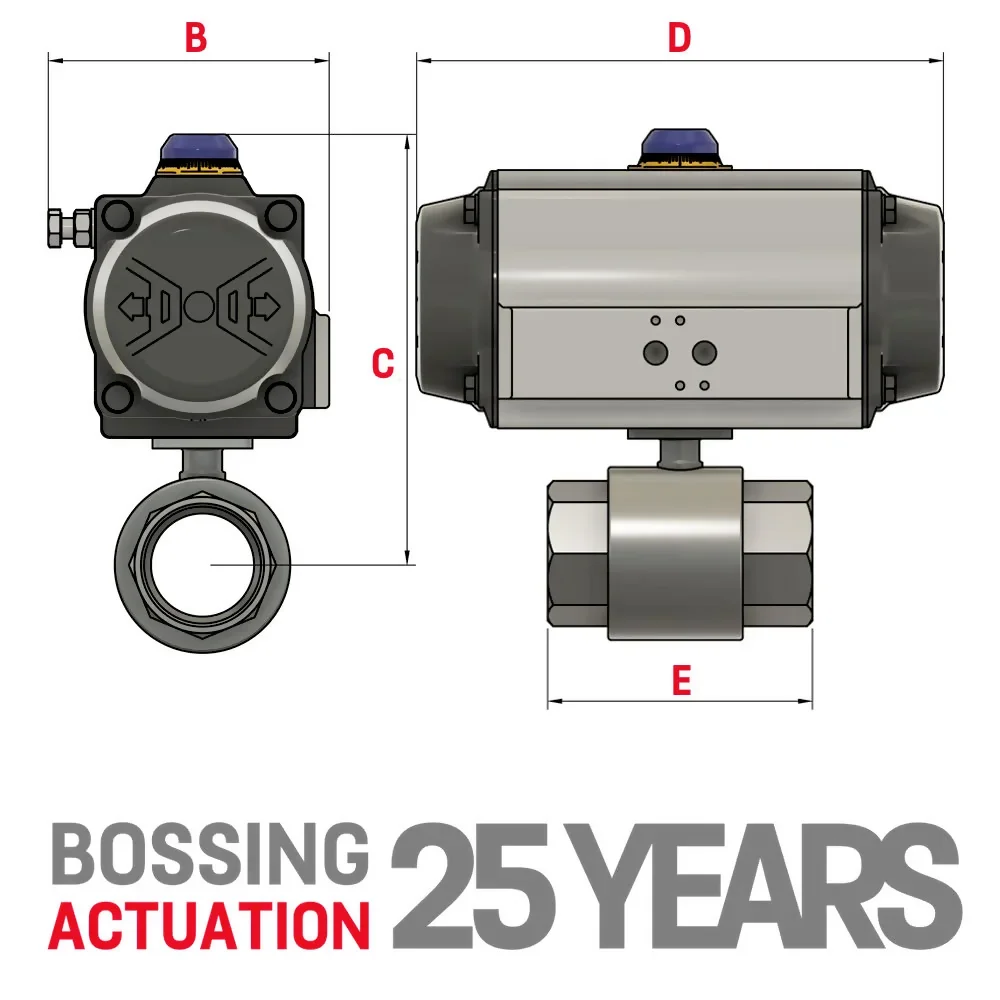

	B	C	D	E	B	C	D	E
	SR	SR	SR	SR	DA	DA	DA	DA
1/4"	72.00	131.50	137.00	67.00	72.00	131.50	137.00	67.00
3/8"	72.00	131.50	137.00	67.00	72.00	131.50	137.00	67.00
1/2"	72.00	131.50	137.00	67.00	72.00	131.50	137.00	67.00
3/4"	72.00	138.00	137.00	70.40	72.00	138.00	137.00	70.40
1"	84.50	163.00	153.50	85.00	72.00	147.00	137.00	85.00
1 1/4"	93.00	184.50	203.50	94.00	72.00	151.50	137.00	94.00
1 1/2"	93.00	193.50	203.50	105.00	84.50	176.50	153.50	105.00
2"	106.00	213.50	241.00	125.00	93.00	200.50	203.50	125.00
2 1/2"	118.50	247.00	259.00	155.00	93.00	222.00	203.50	155.00
3"	136.00	284.00	304.00	173.00	106.00	244.00	241.00	173.00

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

Document

DRAWINGS & SCHEMATICS

Document

DRAWINGS & SCHEMATICS

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seat Material:	Grafoil/316 Stainless Steel
Stem Packing Material:	Grafoil
Design Standard:	ASME B16.34
Wall Thickness:	ASME B16.34
Inspection & Testing:	API 598
Face 2 Face:	ASME B16.10
Pressure Rating:	1000 PSI

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.

Potentially. Contact us so we can discuss potential options.

No unfortunately. We do not offer that level of customisation.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

The BLX V100E Series serves as an Electro-Pneumatic control device enabling the Actuator to gradually modify the Valve's positioning between fully open and fully closed states. There are variations of this product designed for both spring return and double-acting configurations, complete with feedback and safety features. Feel free to reach out to our team today to learn how the V100E can address your specific process needs.

CERTIFICATES & APPROVALS

Document

CERTIFICATES & APPROVALS

Air Torque Actuator Videos

Aluminium

Stainless Steel

Please feel free to request information and advice using the form below or call us on 0151 547 1221
