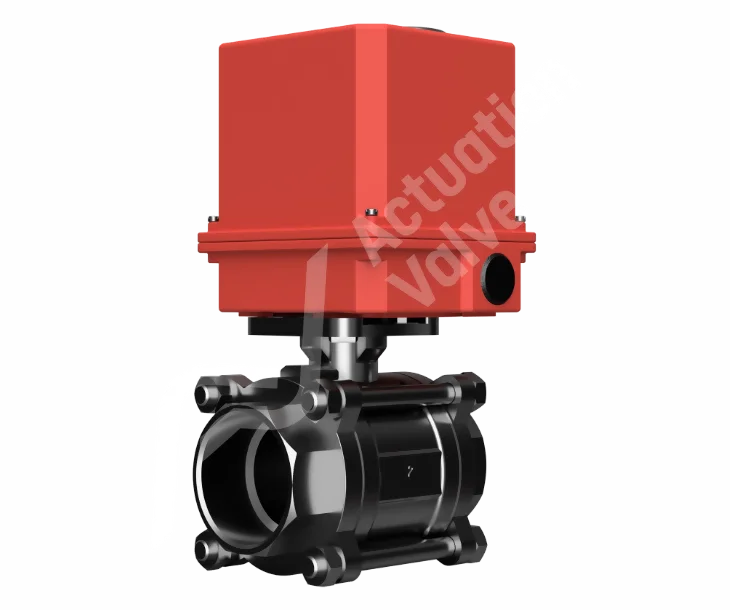

3 Piece Economy AV-Lite Electric Actuated Ball Valves

The BV-L3000AV Ball Valve is a high-quality product tailored for smaller to mid-sized control systems with reduced torques. This design optimisation not only helps cut costs but also enhances performance, ensuring smooth valve operation. Our team boasts decades of experience in handling intricate automation systems, enabling us to deliver high-quality products swiftly and affordably. All you have to do is specify your requirements, and we'll handle the rest. Thanks to its 3-piece design, we can easily replace the valve's central section without disassembling the entire unit. This feature keeps your equipment running smoothly and efficiently, with minimal downtime required for maintenance on your part.
Shop Help Me

Key Features

Key features and benefits of the BV-L3000AV, BV-L3100AV & BV-L3200AV.
1

Key Features

This isolation ball valve showcases an inventive three-piece body design, which facilitates future-proof preventive maintenance schedules. It enables the easy removal of one section of the body at a time for seal replacements, eliminating the need to disassemble the entire valve whenever your schedule demands it.
2

Key Features

With WRAS approved TFM 1600 PTFE seats, we guarantee secure operation. Our FDA-approved materials offer the assurance that your products will be handled safely, without compromising quality or performance, when used correctly.
3

Key Features

The BV-L3000 is a robust ball valve explicitly crafted for tough conditions involving oil-based paints and coatings. This valve boasts stainless steel construction, silicone-free seals, self-aligning seats, and a design that requires minimal maintenance.

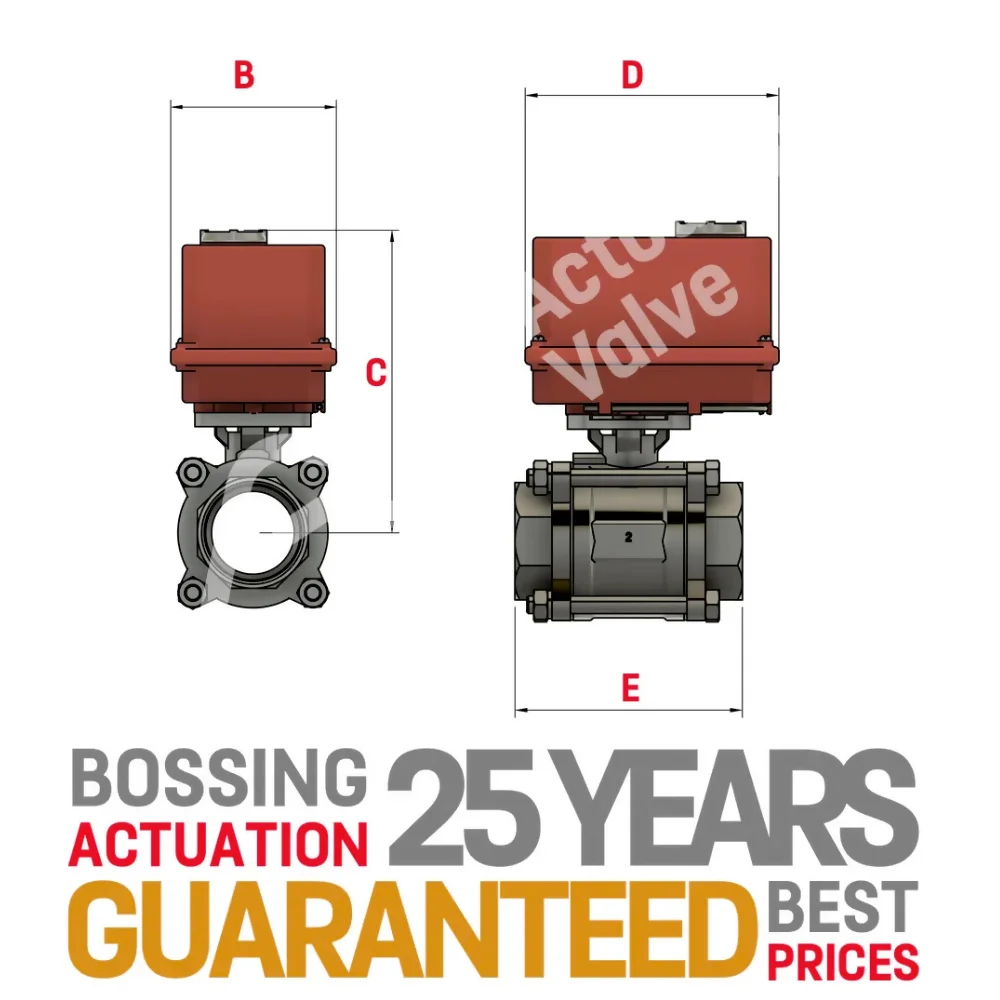

Screwed/Socket Weld Technical Data

B C D E Model
1/4" 100.00 152.50 145.00 75.00 AV-02
3/8" 100.00 152.50 145.00 75.00 AV-02
1/2" 100.00 152.50 145.00 75.00 AV-02
3/4" 100.00 159.00 145.00 80.00 AV-02
1" 100.00 169.00 145.00 90.00 AV-02
1 1/4" 100.00 173.50 145.00 110.00 AV-02
1 1/2" 121.90 212.80 117.00 120.00 AV-03
2" 121.90 219.70 117.00 140.00 AV-03
2 1/2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA

Screwed/Socket Weld Valve 3D Models

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Butt Weld Valve 3D Models

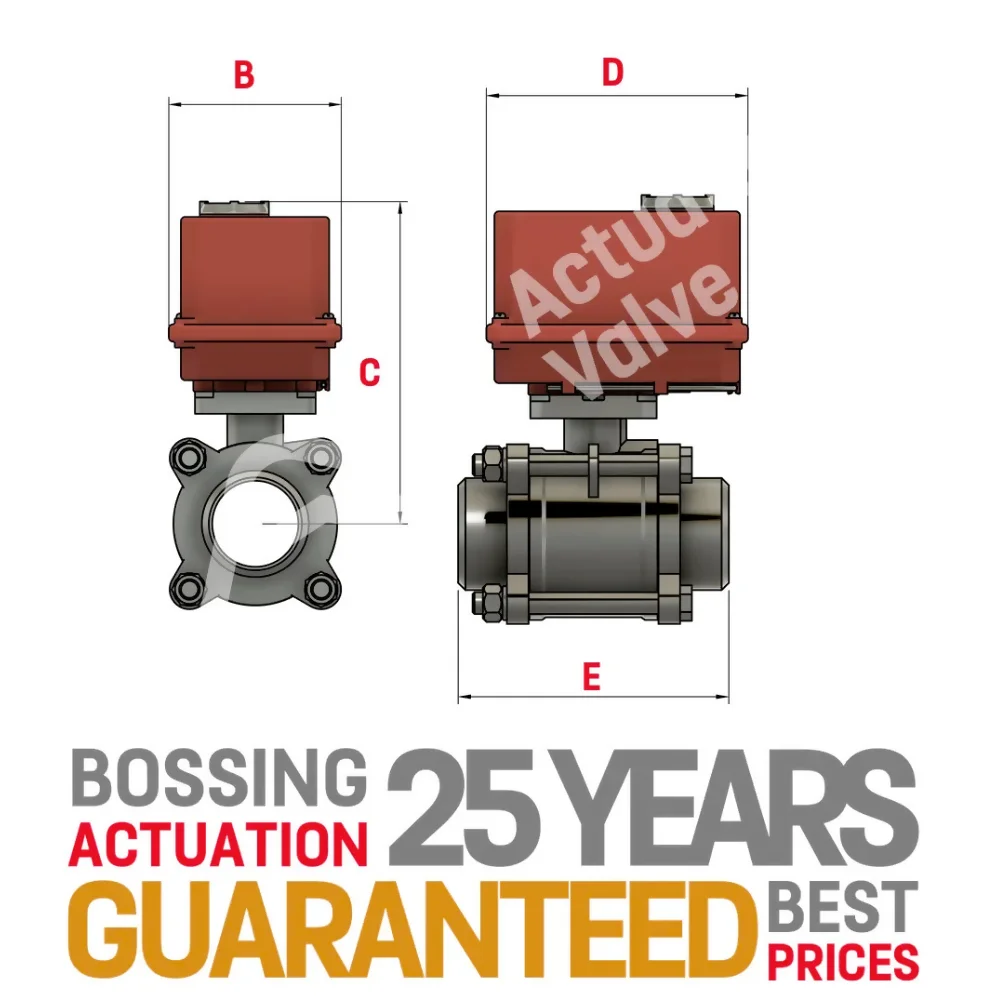

Butt Weld Valve Technical Data

B C D E Model
1/4" 100.00 152.50 145.00 70.00 AV-02
3/8" 100.00 152.50 145.00 70.00 AV-02
1/2" 100.00 152.50 145.00 75.00 AV-02
3/4" 100.00 159.00 145.00 90.00 AV-02
1" 100.00 169.00 145.00 100.00 AV-02
1 1/4" 100.00 173.50 145.00 110.00 AV-02
1 1/2" 121.90 212.80 117.00 125.00 AV-03
2" 121.90 219.70 117.00 150.00 AV-03
2 1/2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Specifications
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Design Standard: MSS SP-110
Wall Thickness: EN 12516-3
Inspection & Testing: MSS SP-110
BSP Ends: (BV-L3000) BSP IS0 7-1 (DIN 2999)
NPT Ends: (BV-L3000) ASME B1.20.1
Socket Weld Ends: (BV-L3100) ASME B16.11
Butt Weld Ends: (BV-L3200) ASME B16.25 (Sch 40)
Pressure Rating: 1000 PSI

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.
