J4CS J&J Electric Actuator PN16 Carbon Steel Ball Valves

The BV-L6KC0-JJ Ball Valve, which sets the industry standard, has been intentionally designed for use in compact to mid-sized control systems. It features reduced torque requirements, which serve not only to cut costs but also to enhance overall performance by ensuring the smooth operation of the valve. You can rely on its dependable performance, supported by a robust warranty. Actuation Valve and J&J back their products with an impressive warranty that challenges you to "put up or shut up." Starting from the shipment date, we offer a 3-year lifecycle warranty, guaranteed for up to 60,000 cycles or until the first occurrence. This translates to more than 50 cycles per day without causing any disruption to your application.

Key Features

Key features and benefits of the BV-L6KC0-JJ Actuated Ball Valves.
1

Key Features

J&J Electric's DPS Kits offer an excellent choice for situations necessitating precise valve control. The digital positioner enables accurate customisation of valve operation, and the kit is compatible with both S and B model actuators.
2

Key Features

The BV-L6K00 Ball Valve, known for its top position in the industry, is tailored for use in control systems of modest to intermediate scale, boasting reduced torque requirements. This feature facilitates cost reduction and enhances performance by ensuring smooth valve operation.
3

Key Features

Consistent performance is assured with a "back it up or be silent" warranty proposal. Beginning from the date of shipment, BallValve and J&J provide a three-year warranty covering the entire life cycle, ensuring up to 60,000 cycles, whichever comes first. This translates to more than 50 cycles per day without any interruption to your application.

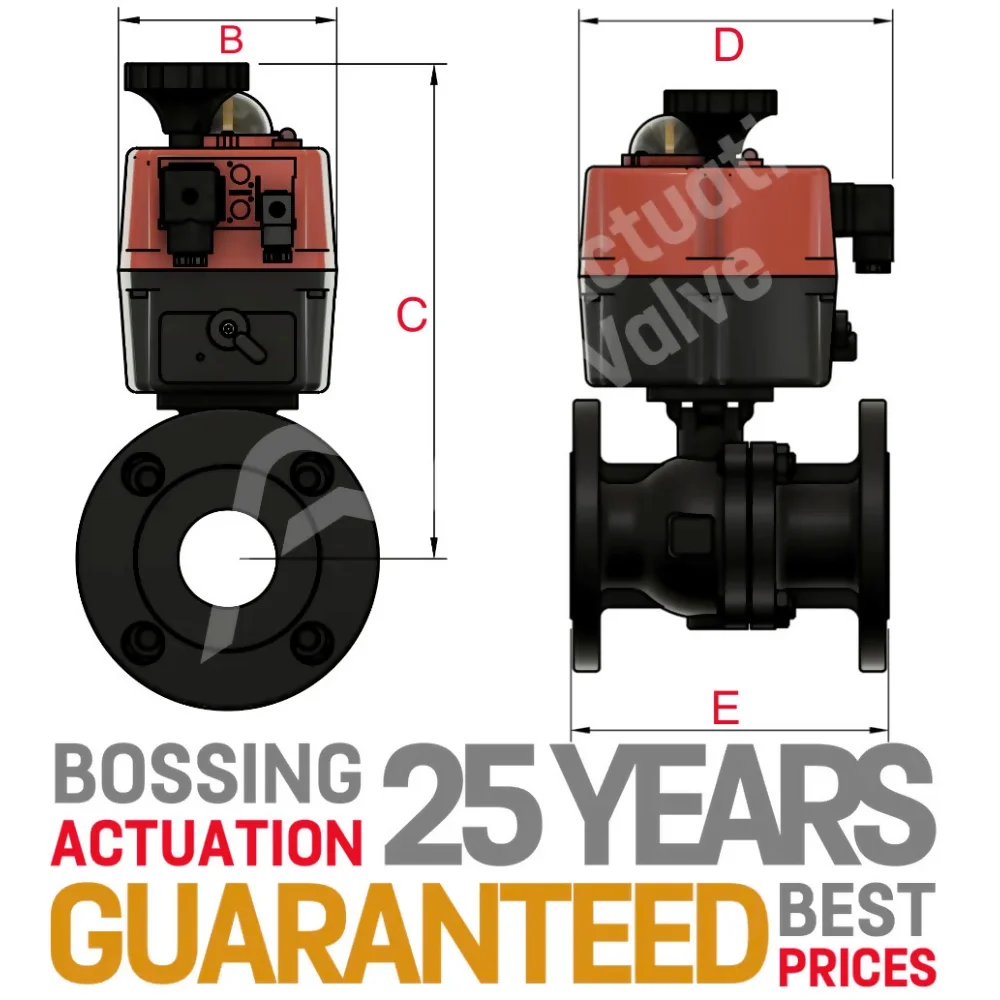

BV-L6KC0-JJ Ball Valve Technical Data

B C D B C D E
SR SR SR DA DA DA SR/DA
1/4" TBA TBA TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA TBA TBA
1/2" 72.00 120.00 137.00 72.00 120.00 137.00 59.00
3/4" 72.00 126.00 137.00 72.00 126.00 137.00 69.00
1" 72.00 130.00 137.00 72.00 130.00 137.00 83.00
1 1/4" 93.00 168.50 203.50 72.00 135.50 137.00 94.00
1 1/2" 93.00 180.00 203.50 84.50 163.00 153.50 102.00
2" 106.00 200.50 153.50 84.50 170.50 153.50 124.00
2 1/2" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA

BV-L6KC0-JJ Ball Valve 3D Models

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Specifications

Body Material: ASTM A216 WCB Carbon Steel construction, 304 Trim.
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: EN 12516-1
Wall Thickness: EN 12516-1
Inspection & Testing: EN 12266-1
Face 2 Face: DIN 3202 F-4 (1/2" - 4") DIN 3202 F-5 (5" - 6")

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.
