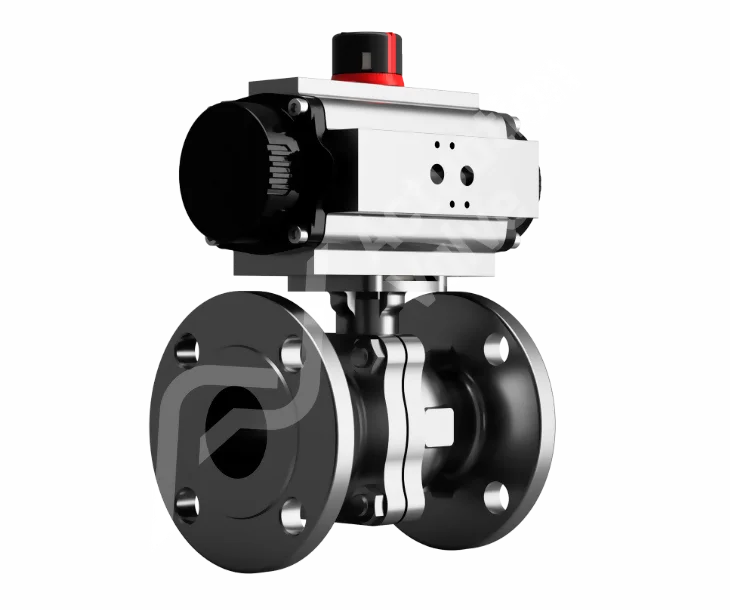

Stainless Steel DIN PN16 Actreg Actuator Valves

This ball valve package is designed for use in tough external environments and aggressive mediums. It is suitable for various applications, including food and beverage, as well as chemicals and petrochemicals. Our Actreg pneumatic actuators are made from high-quality materials, ensuring reliable valve operation for many years. Optional coatings and material combinations are available, such as epoxy painting, SS 304/316 stem adaptors, and hard anodized ENP body and end caps. The Actreg pneumatic actuator comes in both double-acting and spring-return models, with torque capabilities of up to 6500NM due to its rack and pinion design. All actuators include manual adjustment stops for precise valve actuation, with a range of up to 5º in open and closed positions.

Key Features

Key features and benefits of BV-L6K00AC Actuated Ball Valves.
1

Key Features

If you seek an alternative solution, consider our BV-L6K00 Series Actuated Ball Valves. These products enhance sealing performance and simultaneously lower operational expenses due to their reduced torque requirements.
2

Key Features

With a compact, straightforward, yet highly efficient design, the Actreg range of pneumatic actuators facilitates seamless integration into both new and pre-existing systems. They offer direct mount capabilities and straightforward mounting kit assemblies, which can be tailored to suit your specific valve requirements.
3

Key Features

The BV-L6K00 Ball Valve, a leader in the industry, is purpose-built for small to medium-sized control systems with lower torque requirements. This design can contribute to cost savings and improved performance by enabling seamless valve operation.

Flanged PN16 Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/2" 81.00 145.00 163.00 108.00 72.00 138.00 145.00 108.00
3/4" 81.00 149.00 163.00 117.00 72.00 142.00 145.00 117.00
1" 96.00 174.00 195.50 127.00 72.00 148.00 158.00 127.00
1 1/4" 96.00 186.00 195.50 140.00 72.00 160.00 158.00 140.00
1 1/2" 116.00 213.00 217.00 165.00 93.00 198.00 177.00 165.00
2" 116.00 219.00 217.00 178.00 93.00 204.00 177.00 178.00
2 1/2" 127.00 249.00 258.00 190.00 93.00 224.00 196.00 190.00
3" 140.00 277.00 299.00 203.00 106.00 247.00 225.00 203.00
4" 157.00 322.00 348.50 229.00 136.00 315.00 273.00 229.00
5" 197.00 404.00 473.50 356.00 166.00 390.00 372.00 356.00
6" 218.00 453.00 560.00 394.00 166.00 411.00 439.00 394.00
8" 248.00 533.00 601.00 457.00 181.00 479.00 461.00 457.00

Flanged PN16 3D Stuff

Actreg Actuator Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: DIN3357 1,2, EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
inspection & Testing: DIN3230/3, EN 12266
Face 2 Face: DIN 3202 F4 (2 1/2" - 4") & DIN 3202 F5 (5" - 8")

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

4-20mA Control Available On This Product

The BLX V100E Series serves as an Electro-Pneumatic control device enabling the Actuator to gradually modify the Valve's positioning between fully open and fully closed states. There are variations of this product designed for both spring return and double-acting configurations, complete with feedback and safety features. Feel free to reach out to our team today to learn how the V100E can address your specific process needs.
