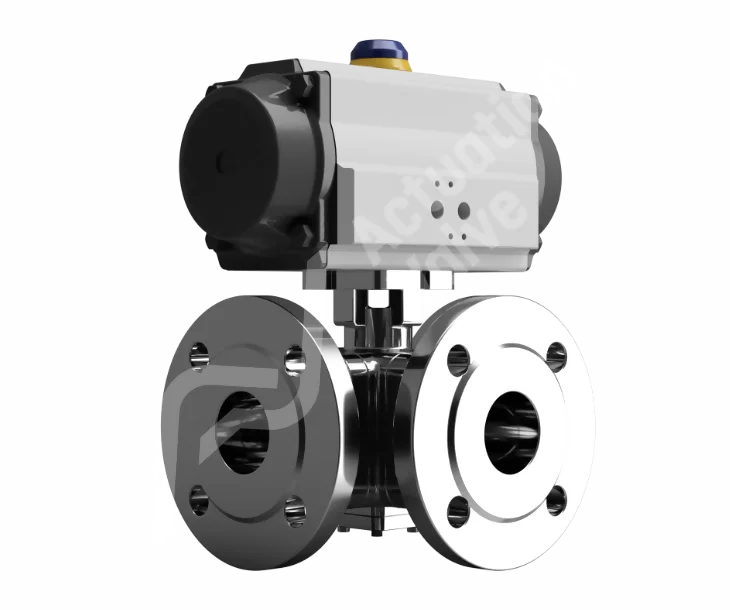

3-Way PN16-PN40 Full Bore Air Torque Actuator Valves

Our BV-L5K00AT/5N00AT 3-Way automated multiport ball valves offer diverse process diverting capabilities through L & T port ball designs. These flanged valves, rated at PN16 & PN40, accommodate both medium and high pressure needs, depending on your application. Installation is hassle-free. Pneumatic actuation options include fail-safe and fail-in-position setups with double-acting and spring-return units, which can be specified at the time of ordering. Air Torque Pneumatic Actuators deliver the same functionality as hydraulic actuators, at a significantly lower cost, while enhancing reliability and reducing maintenance expenses. This lightweight, compact device has been specifically engineered for valve applications.
Shop Help Me

Key Features

Key features and benefits of BV-L5K00AT & BV-L5N00AT Actuated Ball Valves.
1

Key Features

The Air Torque range of pneumatic actuators is highly versatile and simple to install. Thanks to their lightweight design, they don't necessitate heavy-duty mounting points. As a result, you can place them anywhere on your production line without disrupting product flow or incurring unnecessary costs.
2

Key Features

Air Torque can provide Certificate of Conformities along with your actuator or actuated valve package. Furthermore, each individual actuator undergoes factory testing and inspection before being packed and dispatched to us in the UK from their Italian factory.
3

Key Features

If you're searching for an alternative solution, there's no need to look any further than our BV-L5K00 & 5N00 Series 3-Way Actuated Ball Valves. These products enhance sealing capabilities and, at the same time, lower operating costs due to their minimal torque demands.

3-Way PN16 PN40 Technical Data

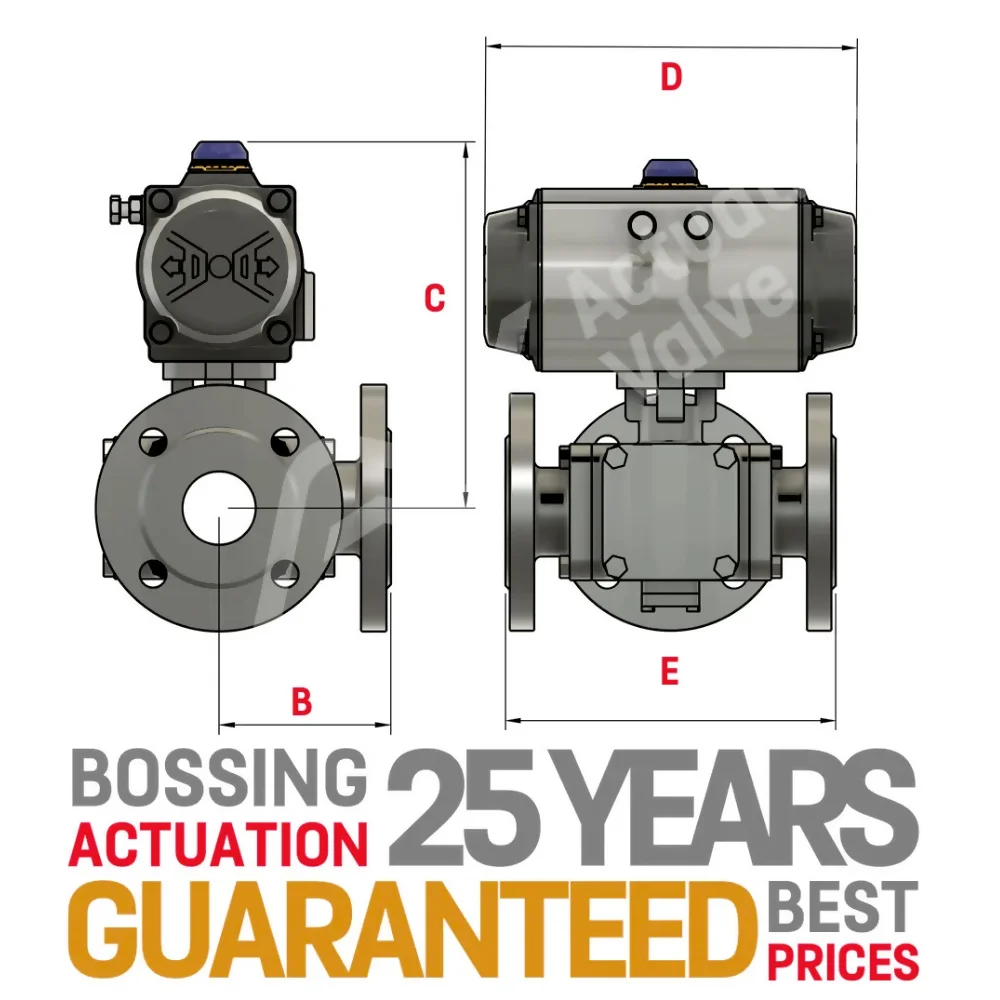

B C D E C D E
SR SR SR DA DA DA SR/DA
1/4" TBA TBA TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA TBA TBA
1/2" TBA 158.00 153.50 TBA 142.00 137.00 150.00
3/4" TBA 179.00 203.50 TBA 146.00 137.00 165.00
1" TBA 190.00 203.50 TBA 190.00 203.50 181.00
1 1/4" TBA TBATBA TBA TBA TBA TBA TBA
1 1/2" TBA 232.00 259.00 TBA 207.00 203.50 190.00
2" TBA 239.00 259.00 TBA 214.00 203.50 212.00
2 1/2" TBA 282.00 304.00 TBA 242.00 241.00 230.00
3" TBA 326.00 394.50 TBA 294.00 304.00 310.00 / 340.00
4" TBA 376.00 422.50 TBA 357.00 357.00 352.00 / 386.00

3-Way PN16 PN40 Valve 3D Models

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

SMALL Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

AT101
  • PDF
DRAWINGS & SCHEMATICS

AT201
  • PDF
DRAWINGS & SCHEMATICS

AT251
  • PDF
DRAWINGS & SCHEMATICS

AT301
  • PDF
DRAWINGS & SCHEMATICS

AT351
  • PDF
DRAWINGS & SCHEMATICS

AT401

BIG Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

AT451
  • Document
DRAWINGS & SCHEMATICS

AT501
  • Document
DRAWINGS & SCHEMATICS

AT551
  • PDF
DRAWINGS & SCHEMATICS

AT601
  • PDF
DRAWINGS & SCHEMATICS

AT651
  • PDF
DRAWINGS & SCHEMATICS

AT701

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Specifications
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: DIN3357 1,2, EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266
Face 2 face: DIN 3202 F4 (1/2" - 4") & DIN 3202 F5 (5" - 6")

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

4-20mA Control Available On This Product

The BLX V100E Series serves as an Electro-Pneumatic control device enabling the Actuator to gradually modify the Valve's positioning between fully open and fully closed states. There are variations of this product designed for both spring return and double-acting configurations, complete with feedback and safety features. Feel free to reach out to our team today to learn how the V100E can address your specific process needs.
