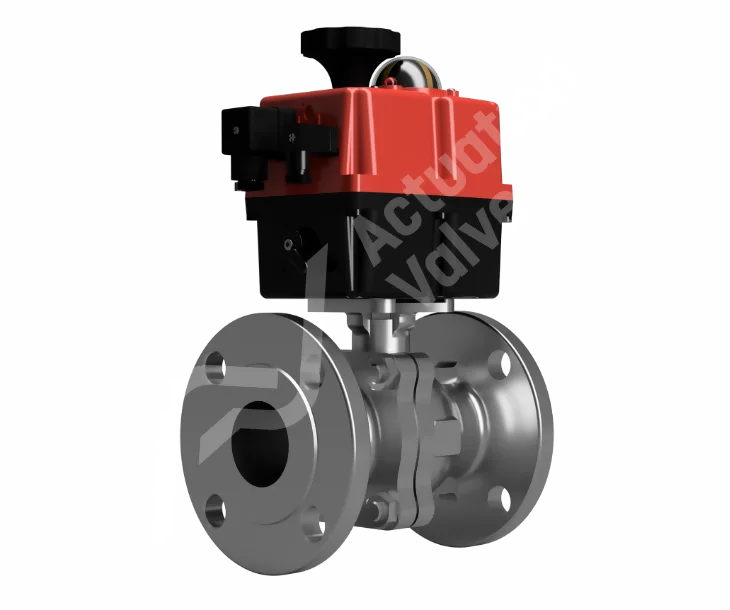

J4CS J&J Electric Actuator Valves Stainless Steel PN16

J&J Electric Actuators provides a Modbus connection for convenient on-site integration with existing units, supporting up to 32 actuators or valve assemblies. You can achieve this connection either through a local Ethernet link or via Wi-Fi, covering distances of up to 1600 meters without requiring signal amplification. The BV-L6K00 Ball Valve, a top-tier product in the industry, is tailored for small to medium-sized control systems, offering reduced torques. This can lead to cost savings and enhanced performance by ensuring smooth valve operation. We guarantee reliable performance and back it up with a warranty. J&J Actuators offer a 3-year warranty, valid for up to 60,000 cycles or the shortest duration. This translates to more than 50 cycles daily without affecting your application.

Key Features

Key features and benefits of BV-L6K00JJ Actuated Ball Valves.
1

Key Features

The BV-L6K00 Ball Valve, a leader in the industry, has been purposefully designed for small to medium-sized control systems with lower torque requirements. This design contributes to cost savings and enhanced performance by facilitating smooth valve operation.
2

Key Features

At BallValve, we offer swift turnaround times without compromising on quality or expertise. Each order includes a two-page test report, outlining all opening and closing times for each tested valve. Whether you require a single product or several hundred off-the-shelf parts, count on us to deliver.
3

Key Features

True multi-voltage plug-and-play operation enables site standardisation without the necessity to switch models when local voltages vary. The J4CS features a built-in auto-conversion sensor voltage kit capable of accommodating 24-240V AC or DC supply.

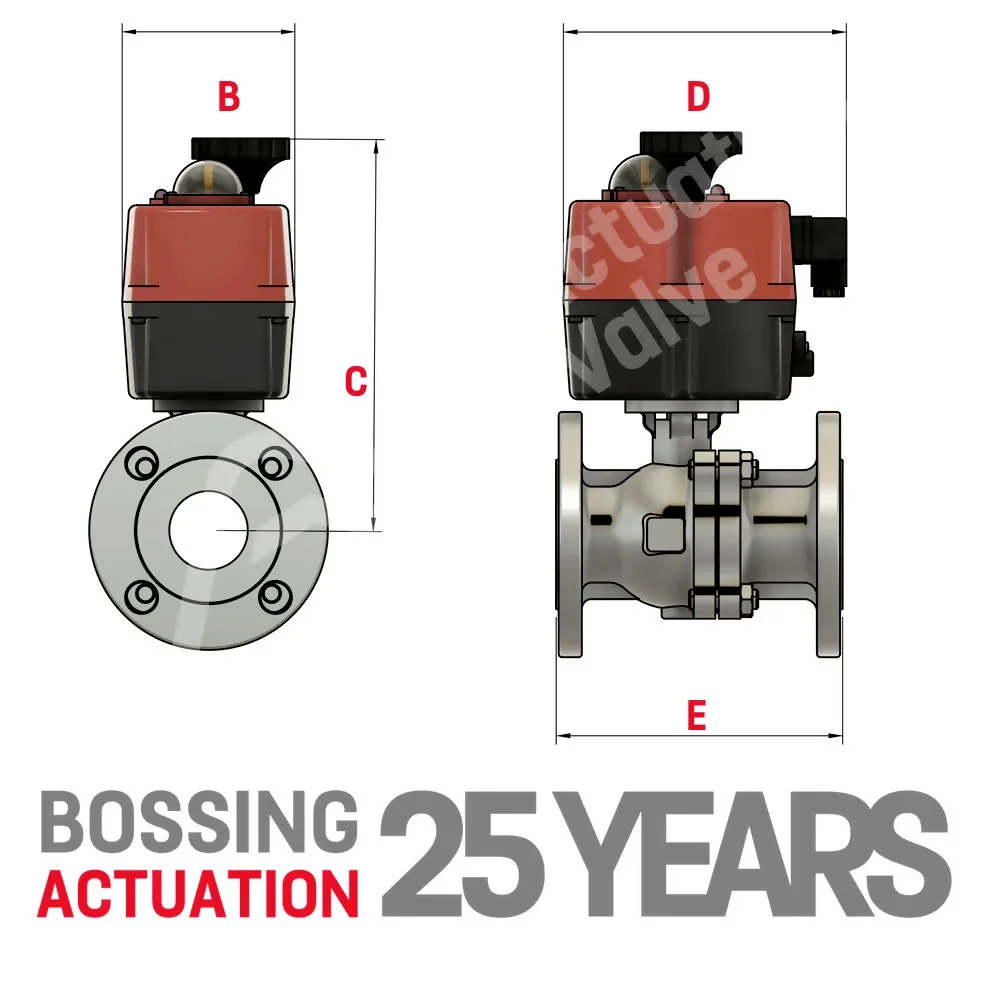

Flanged PN16 Technical Data

B C D E Model
1/2" 110.00 219.00 179.00 115.00 J4SC20
3/4" 110.00 224.00 179.00 120.00 J4SC20
1" 110.00 230.00 179.00 125.00 J4SC20
1 1/4" 110.00 242.00 179.00 130.00 J4SC20
1 1/2" 110.00 247.00 179.00 140.00 J4SC35
2" 110.00 281.00 181.00 150.00 J4SC55
2 1/2" 110.00 298.00 181.00 170.00 J4SC85
3" 214.00 366.00 235.00 180.00 J4SC140
4" 214.00 394.00 235.00 190.00 J4SC140
5" 214.00 437.00 235.00 325.00 J4SC140
6" TBA TBA TBA TBA TBA

Right Column Header

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Specifications

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: DIN3357 1,2, EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266
Face 2 Face: DIN 3202 F4 (2 1/2" - 4") & DIN 3202 F5 (5" - 8")

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.
