Air Torque Actuated Ball Valves - Carbon Steel DIN PN16

Subtotal	£0.00

The BV-L6KC0-AT represents an economical range of high-quality ball valves crafted from Carbon Steel, ensuring your financial plans stay intact. These robust items guarantee years of trouble-free operation, all without the hefty price tag associated with comparable products from other companies. The Air Torque Actuator marks a fresh era of pneumatic actuators, adept at thriving in even the most demanding conditions while upholding the highest performance benchmarks. It's the go-to choice for applications necessitating high reliability and extended service life at a minimal cost. The Air Torque Pneumatic Actuator boasts numerous distinct advantages, including its resilience in the face of extreme temperatures. It emerges as the perfect solution for both indoor and outdoor settings, offering superior performance when compared to the alternatives currently in the market.

Shop Help Me

Key features and benefits of the BV-L6KC0-AT Actuated Ball Valves.

Key Features

Air Torque actuators offer various protection options beyond the standard anodised aluminium housing. These alternatives encompass a complete stainless steel body variant, alodur coating applied to the body and end caps, ENP plated carbon steel drive shafts, and a PTFE coating for the body.

Key Features

Optional installation is available for both inline configurations. The Air Torque actuator's design accommodates both setups, offering flexibility to meet specific application demands, particularly when space-saving considerations are essential. A standard method for mounting in-line is suitable for applications such as hopper line actuation and bagging lines.

Key Features

Rest assured that Air Torque actuators strictly adhere to the highest quality materials and inspection testing procedures. The entire manufacturing process occurs at the Bergamo factory, following stringent ISO 9001-compliant processes.

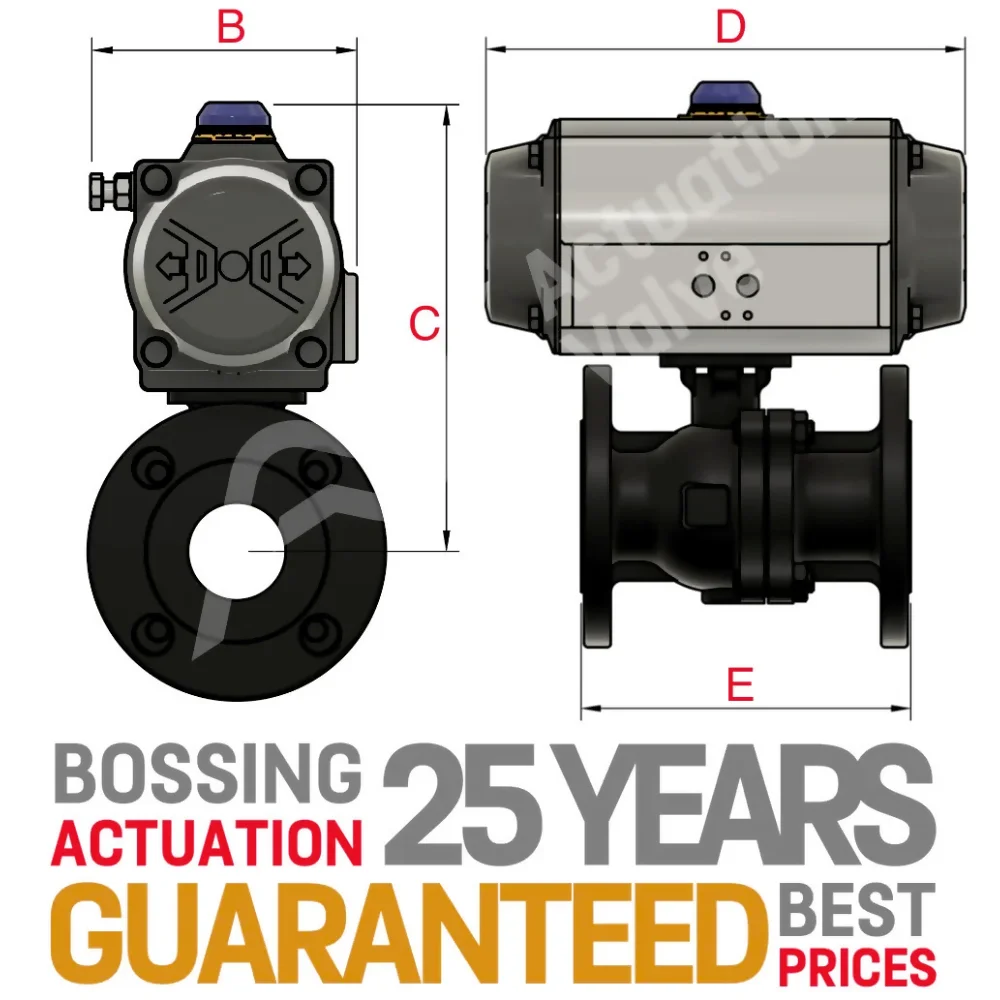

	B	C	D	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA
1/4"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3/8"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
1/2"	72.00	120.00	137.00	72.00	120.00	137.00	59.00
3/4"	72.00	126.00	137.00	72.00	126.00	137.00	69.00
1"	72.00	130.00	137.00	72.00	130.00	137.00	83.00
1 1/4"	93.00	168.50	203.50	72.00	135.50	137.00	94.00
1 1/2"	93.00	180.00	203.50	84.50	163.00	153.50	102.00
2"	106.00	200.50	153.50	84.50	170.50	153.50	124.00
2 1/2"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

Document

DRAWINGS & SCHEMATICS

Document

DRAWINGS & SCHEMATICS

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.


Body Material:	ASTM A216 WCB Carbon Steel construction, 304 Trim.
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	Grafoil/316 Stainless Steel
Stem Packing Material:	Grafoil
Design Standard:	EN 12516-1
Wall Thickness:	EN 12516-1
Inspection & Testing:	EN 12516-1
Face 2 Face:	DIN 3202 F-4 (1/2" - 4") DIN 3202 F-5 (5" - 6")

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
